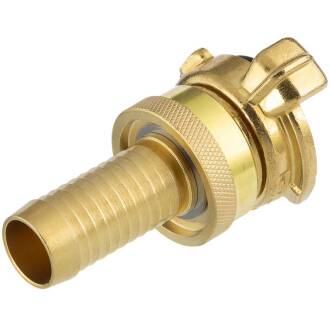

HTC© quick coupling Claw coupling High pressure hose nozzle

SKU: GK0003
Auswahl Steuerzone / Lieferland
from
5,52 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
L
L1
NW
SLW
ø hose inside
Price
Quantity
GK0003.000.020
1/2"
66
34
10
13
13 (1/2" Schlauch)
5,52 €*
pc.:
GK0003.000.025
19mm (3/4" Schlauch)
69
35,5
17
19 (21/19)
19 (3/4" Schlauch)
5,59 €*
pc.:
GK0003.000.032
1"
71
40
21
25
25 (1" Schlauch)
6,43 €*
pc.:
GK0003.000.040
1 1/4"
71
40
28
32
32* (1 1/4" Schlauch)
8,60 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

HTC© Brass Quick Coupling High Pressure Hose Nozzle GEKA similar

Connection:
Quick coupling x high pressure hose nozzle
Special Feature:
Safety design with screw ring
Temperature:
approx. -10°C to +90°C
Working pressure (PN):
max. 30 bar
Vacuum resistance:
max. 10m water column (WC)
Material:
Brass CW617N
Seal:
NBR
  • The internal hose diameter is given in mm. The term 1/2" hose or 3/4" hose refers to the colloquial, outdated standards for hoses and is not identical to the inch measurements for fittings.
  • Compatible with couplings from Geka®
DOWNLOADRoHS Confirmation HTC
DOWNLOADREACH Brass Supplement HTC
