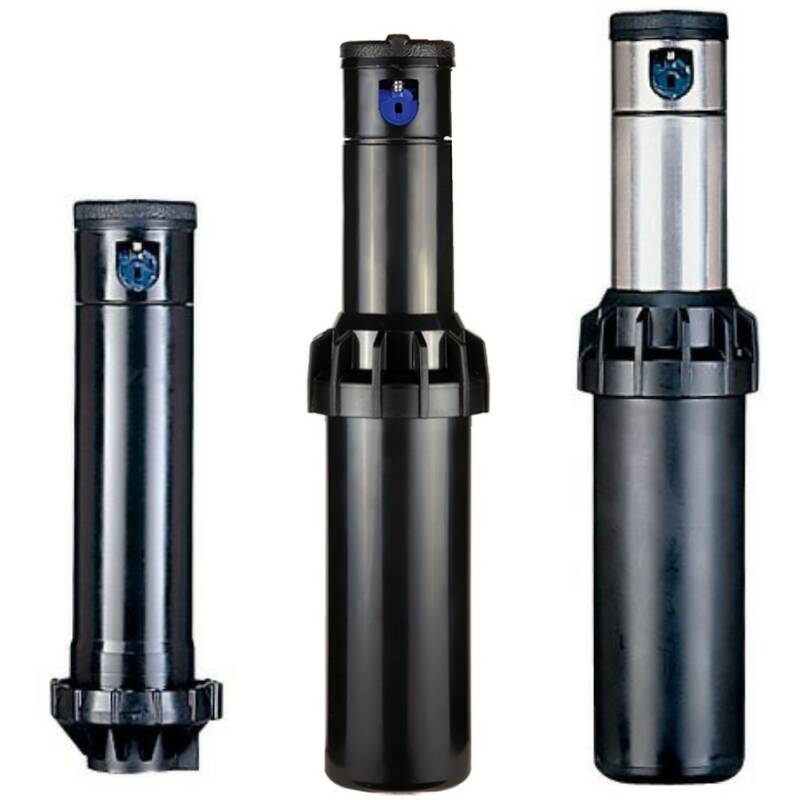

Hunter I-20 rotor

from
0,96 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
Connection
Aufsteigerhöhe
Total height
exposed diameter
Price
Quantity

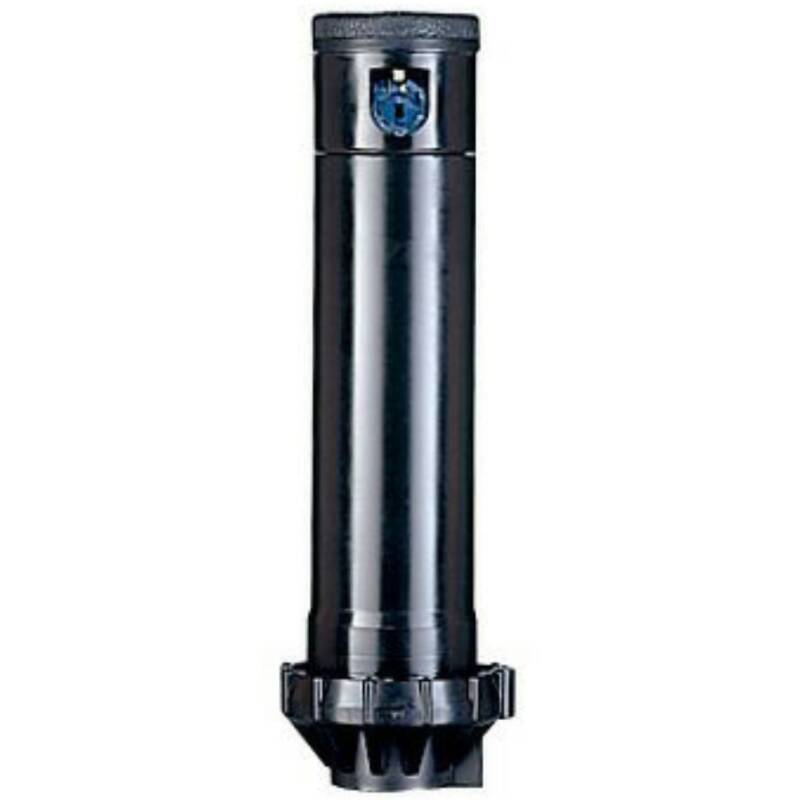

Hunter I-20 rotor I-20-00: shrub
BW5017.I20.F00
I-20-00: festes Modell
3/4" (26,44mm)
---
20cm
4,5cm
27,87 €*
pc.:

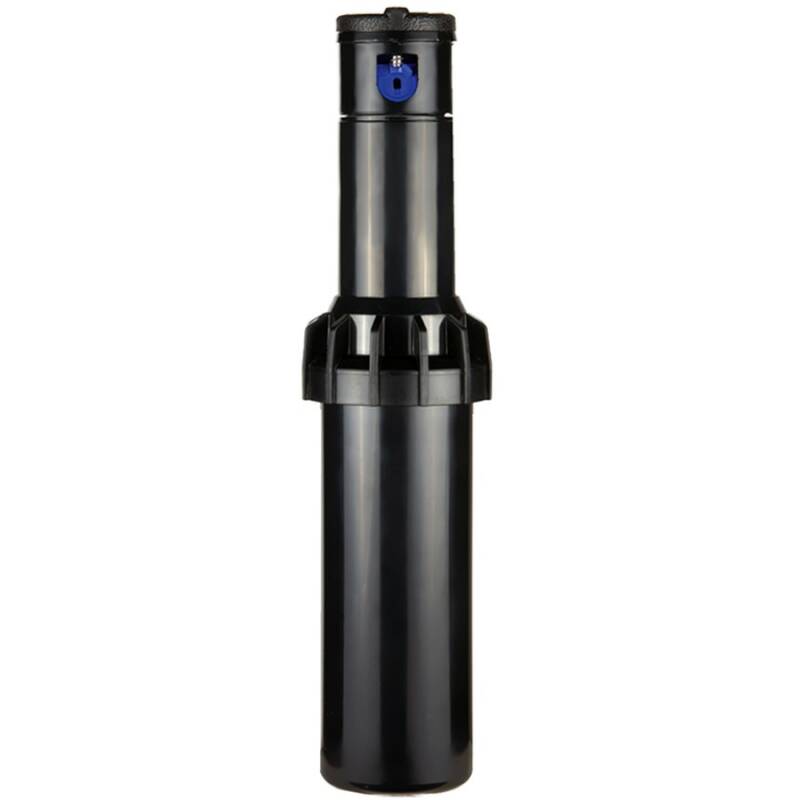

Hunter I-20 rotor I-20-04: 10cm Pop-Up plastic
BW5017.I20.K10
I-20-04: 10cm pop-up
3/4" (26,44mm)
10cm Kunststoff
19cm
4,5cm
32,11 €*
pc.:

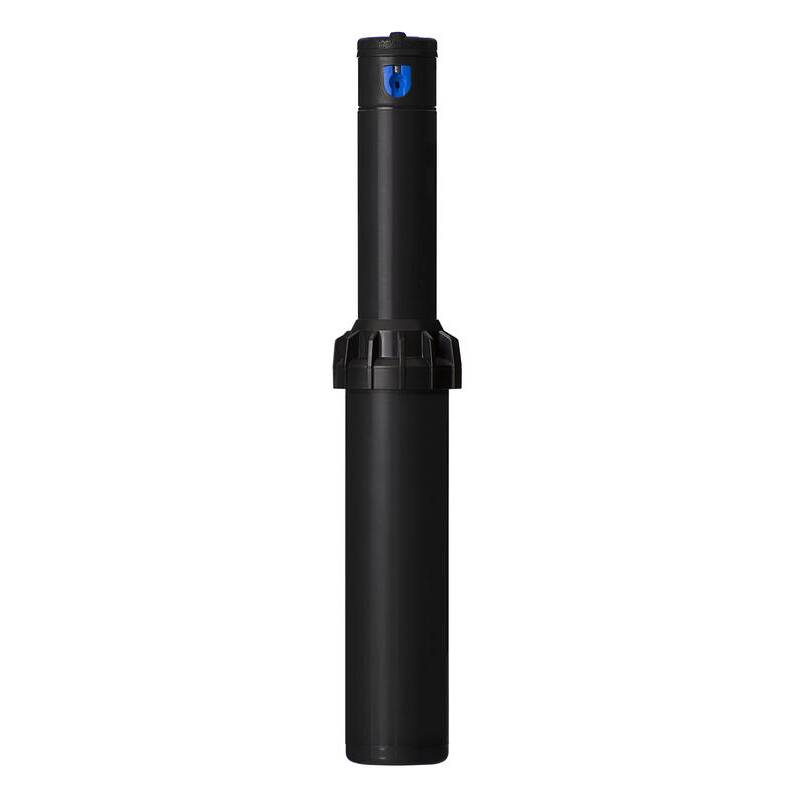

Hunter I-20 rotor I-20-06 15cm  Pop-Up plastic
BW5017.I20.K15
I-20-06: 15cm pop-up
3/4" (26,44mm)
15cm Kunststoff
25cm
4,5cm
43,61 €*
pc.:

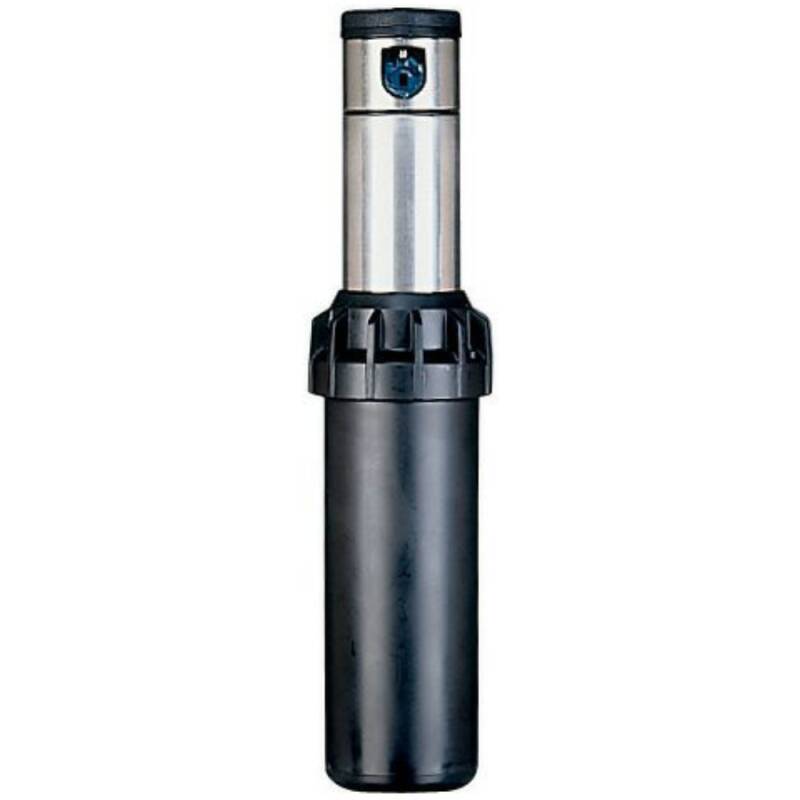

Hunter I-20 rotor I-20-04: 10cm Pop-Up stainless steel
BW5017.I20.E10
I-20-04-SS: 10cm pop-up
3/4" (26,44mm)
10cm Edelstahl
19cm
4,5cm
40,16 €*
pc.:
Hunter I-20 rotor I-20-06-ss 15cm Pop-Up stainless steel
BW5017.I20.E15
I-20-06: 15cm pop-up
3/4" (26,44mm)
15cm Edelstahl
25cm
4,5cm
58,67 €*
pc.:

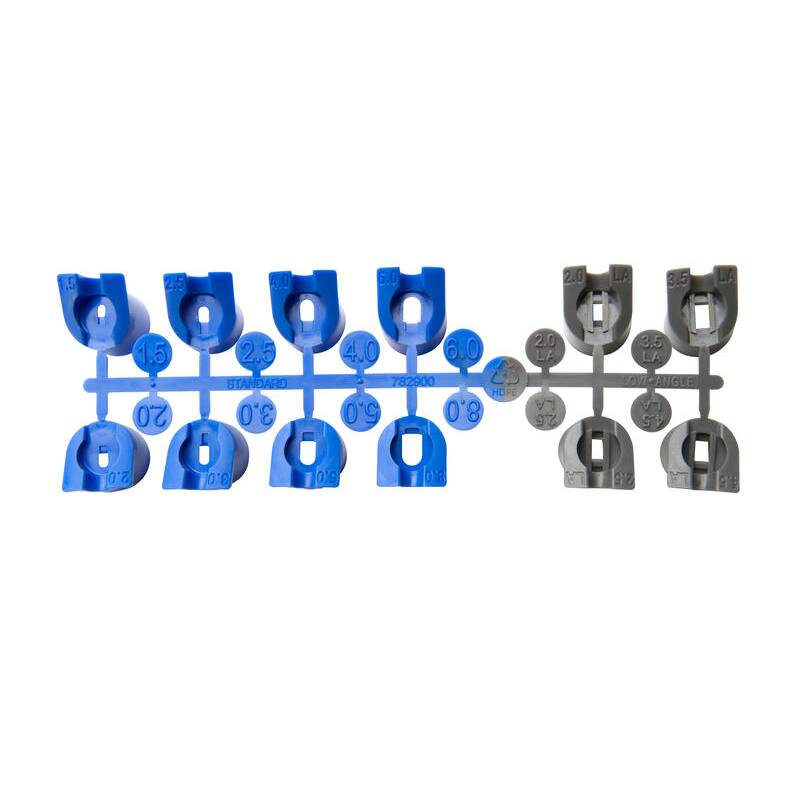

Hunter I-20 rotor I-20 Nozzels
BW5017.DÜS.SET
Standarddüsensatz I-20
---
---
----
---
2,50 €*
pc.:

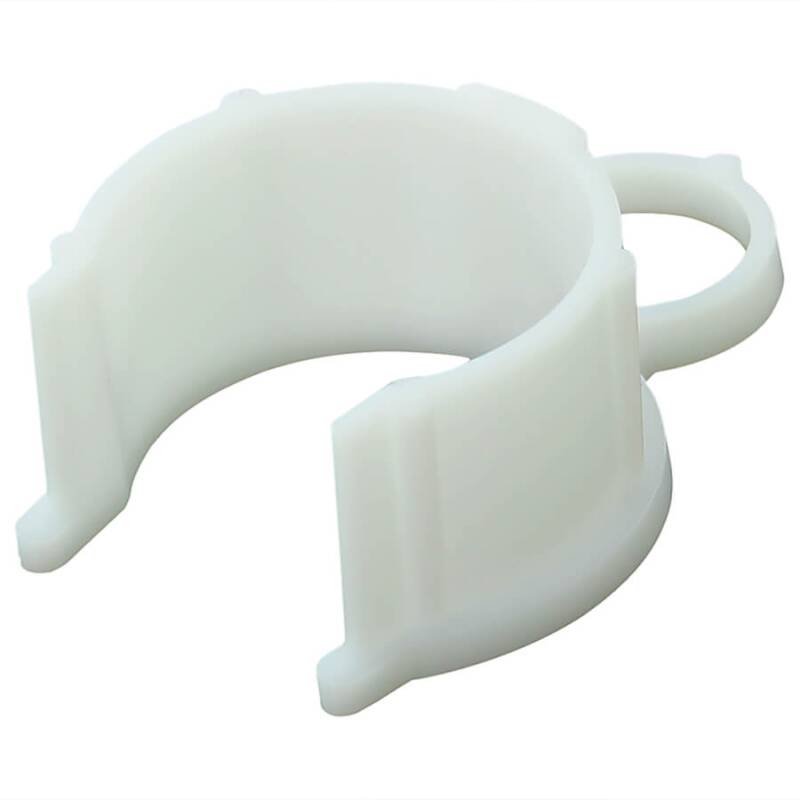

Hunter I-20 Series Rotor Ascent Retaining Ring
BW5017.000.001
Aufsteigehaltering für Düseneinbau
---
---
---
---
1,61 €*
pc.:

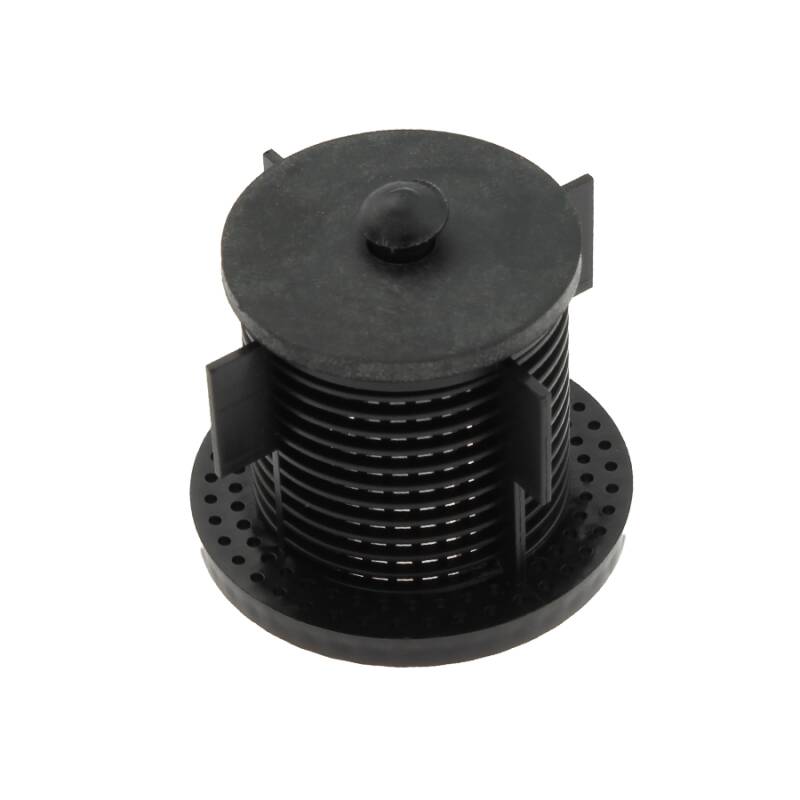

Hunter I-20 rotor Drain Check Valve
BW5017.I20.ALS
Auslaufsperrventil (für bis zu 3m Höhe)
---
---
---
---
1,65 €*

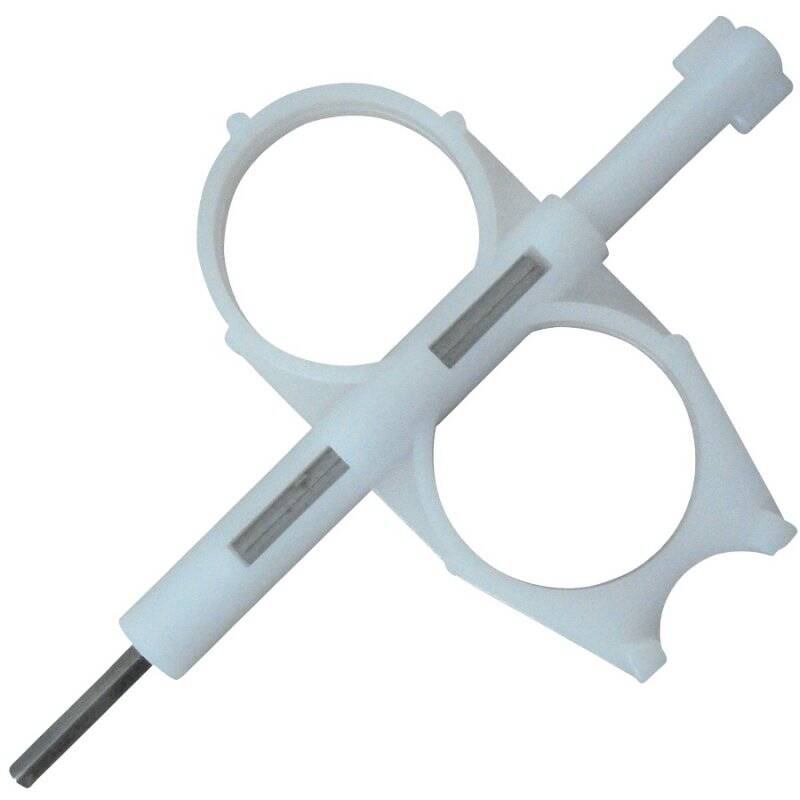

Hunter I-20 rotor Hunter key I-20
BW5017.I20.SLS
Einstellschlüssel für Hunter Regner
---
---
---
---
0,96 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Hunter geared sprinkler I-20 series

the top model among Hunter's geared sprinklers - the stainless steel version is a visual highlight in your garden!

The I-20 PGP® version is the powerful geared sprinkler with the versatility and efficiency for every location.


  • Throw range: 4.9 to 14.0m
  • Flow rate: 0.07 - 3.23m³/hour
  • Flow rate: 1.2 - 53.8l/min.
  • Sprinkler connection 3/4" female thread
  • Automatic return to the correct angle setting
  • Partial and full circle in one model
  • anti-vandalism mechanism
  • direct adjustment of the irrigation sector (50° - 360°) on the sprinkler head
  • incl. non-return valve up to 3m height difference (prevents puddles forming within a sector at the lowest point with different terrain levels)
  • Nozzle set with 8 standard nozzles and 4 flat spray angle nozzles
  • FlowStop® system enables a sprinkler to be switched off without interrupting the entire system

Automatic sector return

This function causes a return to the originally set sector, even if the head has been turned manually. This ensures protection against vandalism in any environment.

BR0026 Detail

Vandalism-protected decoupling mechanism

Drive mechanism protected according to the slip clutch principle, which enables manual rotation of the head without damage.

BR0026 Detail

Partial and full circle in one model

Patented continuous 360° mechanism for partial and full circle in one model from 50° to 360°.

BR0026 Detail

Head and slotted locking screw

Use a slotted screwdriver or the Hunter adjustment wrench to easily and conveniently make adjustments as required.

BR0026 Detail

FloStop control

FloStop blocks the water flow to individual sprinkler heads while the system is running. This function is particularly suitable for replacing nozzles or switching off certain heads during maintenance and installation.

BR0026 Detail

Includes 12 nozzles

Eight standard nozzles between 1.5 and 8.0 . and four "low angle" nozzles between 2.0 LA and 4.5 LA cover the entire performance range of the Hunter I-20. No nozzle is pre-installed.

BR0026 Detail

Stainless steel riser

Stainless steel is the ideal choice for difficult ground conditions, unpredictable climatic conditions or when used - or to put it simply: it just looks great!

BR0026 Detail

Outlet stop valve (4.56 M)

As air in the system can cause long-term damage to the gear sprinklers and pipes, the drain stop valve prevents the pipes from draining when the system is switched off. This saves water, prevents damage and ensures a longer service life for the system.

BR0026 Detail

DOWNLOAD Hunter I-20 nozzle performance data
DOWNLOAD Hunter I-20 nozzle performance data
DOWNLOAD Hunter I-20 article data
DOWNLOAD Hunter I-20 brochure
READ MORE Hunter I-20 - all the data, all the facts
DOWNLOAD the thread identification - or why 1" is not 25.4mm
