Description

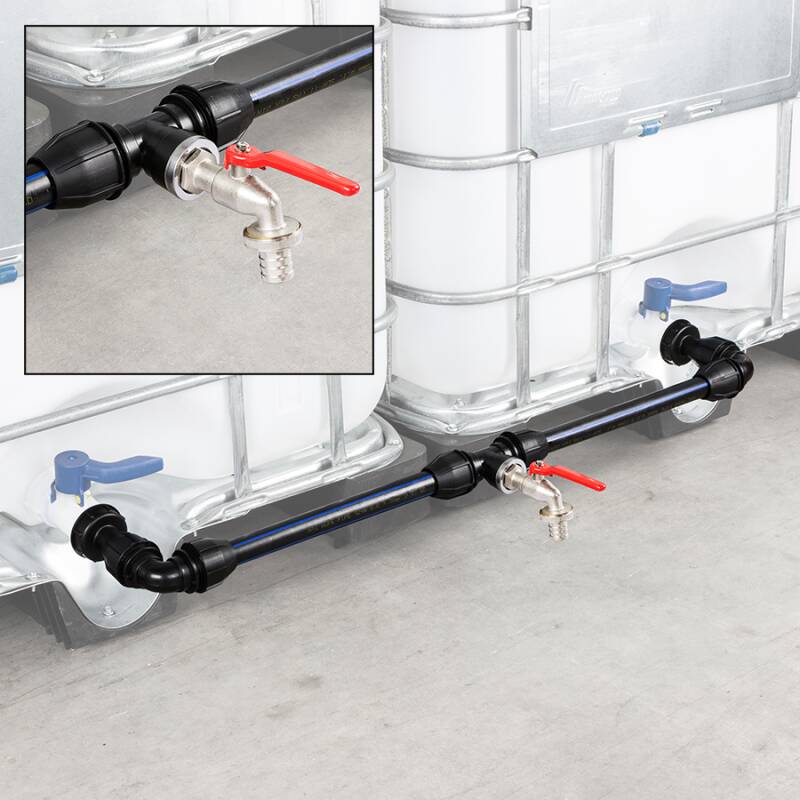

IBC Connection Set for Side-by-Side Containers with Faucet
- Quickly and easily connect IBC containers side by side with a centrally placed chrome-plated ball valve faucet
- Extend side by side infinitely with the extension set
- Perfectly positionable connection - no more leakage problems - no more positioning issues
With the perfectly positionable IBC Container Connection S60*6 from
, your system is securely connected, yet easily dismountable, with no exposed seals that crumble over time due to UV radiation or makeshift "DIY connections".
With a connection set, you can connect two containers. To connect 3 containers side by side, you will need 1 additional extension, for 4 containers side by side, 2 extensions, and so on.
Connection:
IBC Coarse Thread S60*6
Temperature:
Up to 60°C constant, briefly up to 80°C
Material:
PE Pipe 32mm, PP Clamp Fitting
Seal S60*6:
PU Foam Flat Seal
Color:
Black
Ball Valve:
3/4" or 1", depending on selection
Scope of Delivery:
The set is partially pre-assembled and requires complete assembly and thread sealing. A roll of Teflon tape is included.

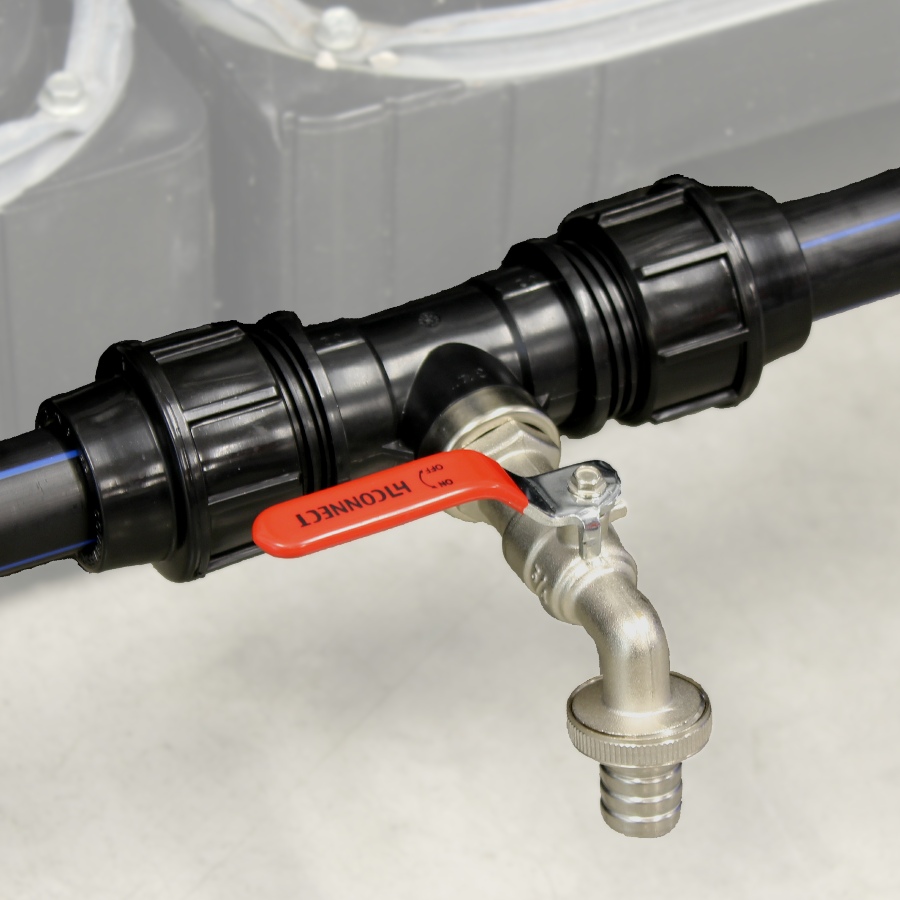

- Centrally placed faucet
- PE100 drinking water pipe 32mm
- No exposed O-rings
- No additional sealing work between pipe and clamp fittings
- Available in 3/4" or 1" versions depending on selection
- IBC Container Connection S60*6 - expandable to S100*8 via IB0003.100.M60
- UV-, Weather- and Ozone-Stable
- With the "plug & work" IBC Container Connection S60*6 from
Tip: A metal faucet requires some maintenance. Especially in the shear area of the lever, moisture accumulates, which can lead to rust. A spritz of rust remover or WD40 after installation and periodically will prevent this, and you will enjoy your IBC Container Set Swan Neck with Faucet from for a long time.
IBC Container Connection Sizes
Connection Size
S60*6 DN50 (2") Coarse Thread
S60 (2.36") Outer thread size 60mm
6mm (0.24") Thread pitch
Connection Size
S75*6 DN50 (2") Coarse Thread
S75 (2.95") Outer thread size 75mm
6mm (0.24") Thread pitch
Connection Size
S80*6 DN50 (2") Coarse Thread
S80 (3.15") Outer thread size 80mm
6mm (0.24") Thread pitch
Connection Size
S100*8 DN80 (3") Coarse Thread
S100 (3.94") Outer thread size 100mm
8mm (0.32") Thread pitch
