IBC container coupling S60*6 with brass ball valve and hose tail

SKU: IB0104.S60.020

Auswahl Steuerzone / Lieferland

15,79 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 4 Workdays (DE - int. shipments may differ)

View item details in PDF

How to measure a threaded fitting

pc.

Available immediately
Delivery time: 1 - 4 Workdays (DE - int. shipments may differ)

All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.

Main item including dimensions

Description

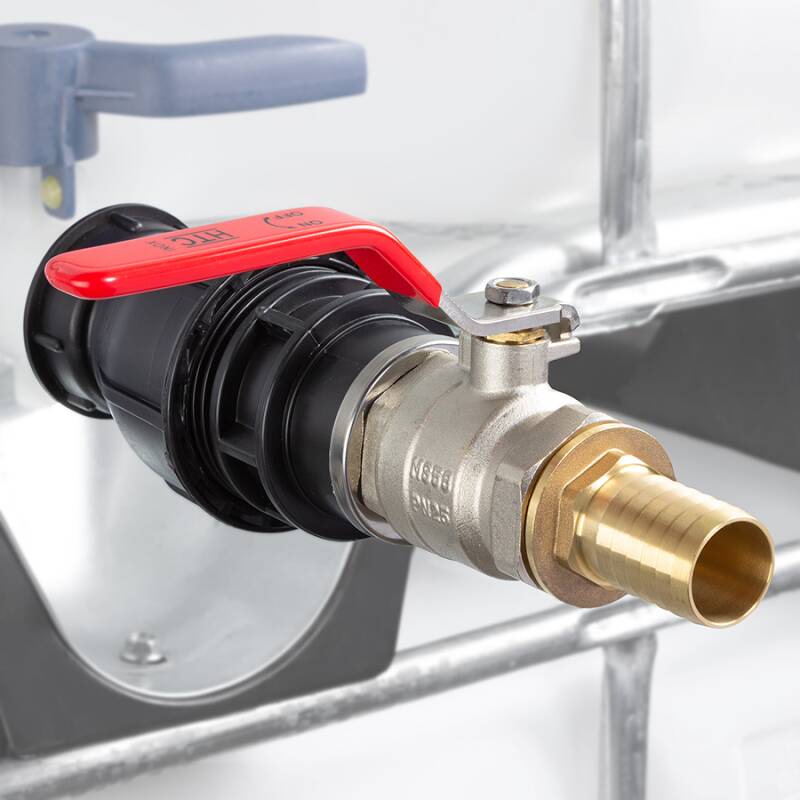

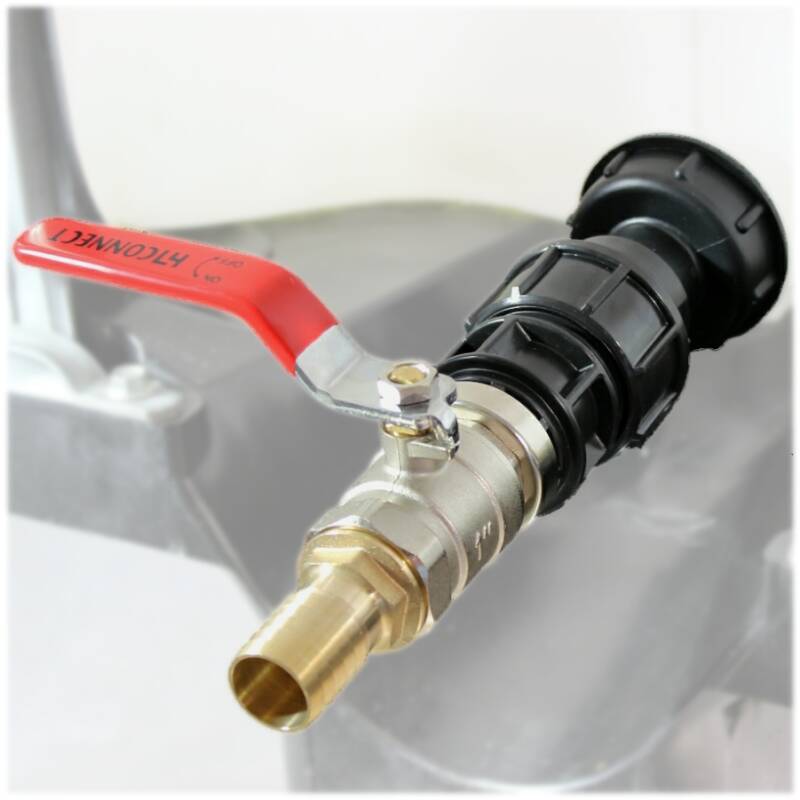

IBC Container Connection S60*6 with Brass Ball Valve and Hose Connector

Perfectly positionable connection - no more leakage problems - no more positioning issues

Who hasn't experienced this: You buy an attachment for your IBC container, and the image on the website shows a perfectly upright connection. But the reality is different: the connection is tightly screwed into the thread, and your faucet is crooked.
Those days are over!

With the perfectly positionable IBC container connection S60*6 from , your faucet will always be in the perfect position, without exposed seals that degrade over time under UV radiation.

The Facts:

The ball valve always stays in the position you want
The position can easily be adjusted or completely disassembled at any time
No exposed seals that degrade under UV radiation
No additional sealing work required
With the "plug & work" IBC Container Connection S60*6 from

The Data:

IBC Container Connection S60*6 (compatible with 90% of all IBC containers)
Brass ball valve chrome-plated 1" or 1 1/2" depending on selection
Lever made of steel or stainless steel V2A depending on selection
Thread connection reinforced with metal

Connection:

IBC coarse thread S60*6

Temperature:

up to 60°C constant, briefly up to 80°C

Quality:

UV stable

Material:

PP Polypropylene

Seal S60*6:

PU foam flat seal

Color:

Black

Ball Valve:

1" or 1 1/2" brass, chrome-plated depending on selection

Lever:

Zinc-plated steel or V2A stainless steel depending on selection

Tip: A metal valve requires some maintenance. Especially in the area of the lever, moisture can accumulate, which can lead to rust. A spray of rust remover or WD40 after installation and at regular intervals will prevent this, and you will have long-lasting enjoyment of your IBC container S60*6 with brass ball valve hose connector from .
