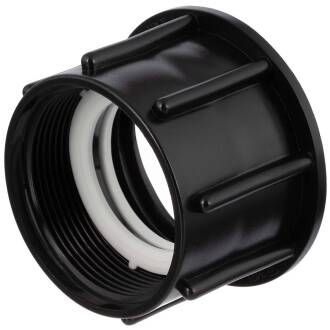

IBC container coupling with female thread

SKU: IB0002.S60.063

Auswahl Steuerzone / Lieferland

1,96 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 4 Workdays (DE - int. shipments may differ)

View item details in PDF

How to measure a threaded fitting

pc.

Available immediately
Delivery time: 1 - 4 Workdays (DE - int. shipments may differ)

All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.

Main item including dimensions

Description

IBC container coupling with female thread

Connection:

Female thread x female thread (thread type see table)

Temperature:

up to 60°C constant, short-term 80°C

Quality:

UV-stable

Material:

PP Polypropylene

Seal to IBC:

PU foam flat gasket

Seal BSP thread:

BSP pipe thread G, not self-sealing, sealing with Teflon tape or similar
or version 1", 1 1/2" and 2" flat-sealing with PU foam flat gasket

Color:

Black

Technical note:

1", 1 1/2" and 2" with BSP R (tapered male thread) counterpart
Remove foam gasket and seal with Teflon tape or similar, or shorten thread cone of male thread

Processing note:

The male threaded connector must be flat. Compensating for edge damage by tightening the connection too far may put the lid part under pressure, which can cause it to tear off from the threaded part – this can also occur at a later time due to material fatigue.
