Multipolar electric cable, type Y 14-core 14 x 0.5mm²

from
1,55 €
incl. 19% VAT , plus shipping costs
  • Available immediately

wichtiger Hinweis

Kabelzuschnitte werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf
  • Available immediately
   Variants

Product picture
Item no.
Variation
Notice
Price
Quantity
Multipolar electric cable, type Y 14-core 14 x 0.5mm² 5m
BW4050.014.005
14 x 0,5mm², 5m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
28,48 €*
pc.:
Multipolar electric cable, type Y 14-core 14 x 0.5mm² 10m
BW4050.014.010
14 x 0,5mm², 10m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
56,94 €*
pc.:
Multipolar electric cable, type Y 14-core 14 x 0.5mm² 15m
BW4050.014.015
14 x 0,5mm², 15m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
85,42 €*
Multipolar electric cable, type Y 14-core 14 x 0.5mm² 20m
BW4050.014.020
14 x 0,5mm², 20m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
113,88 €*
Multipolar electric cable, type Y 14-core 14 x 0.5mm² 25m
BW4050.014.025
14 x 0,5mm², 25m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
142,36 €*
Multipolar electric cable, type Y 14-core 14 x 0.5mm² 30m
BW4050.014.030
14 x 0,5mm², 30m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
170,82 €*
Multipolar electric cable, type Y 14-core 14 x 0.5mm² 40m
BW4050.014.040
14 x 0,5mm², 40m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
Keine Express-Lieferung
227,77 €*
Multipolar electric cable, type Y 14-core 14 x 0.5mm² 50m
BW4050.014.050
14 x 0,5mm², 50m Rolle
Kabelzuschnitt: kein Widerruf/keine Rückgabe
Keine Express-Lieferung
284,83 €*
Multipolar electric cable, type Y 14-core 14 x 0.5mm² 100m
BW4050.014.100
14 x 0,5mm², 100m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
Keine Express-Lieferung
517,65 €*
Reel:
Multipolar electric cable, type Y 14-core 14 x 0.5mm² 3M Scotchlok cables connector
BW4050.03M.014
3M Scotchlok Kabelverbinder
Kabelzuschnitt: kein Widerruf/keine Rückgabe
1,55 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

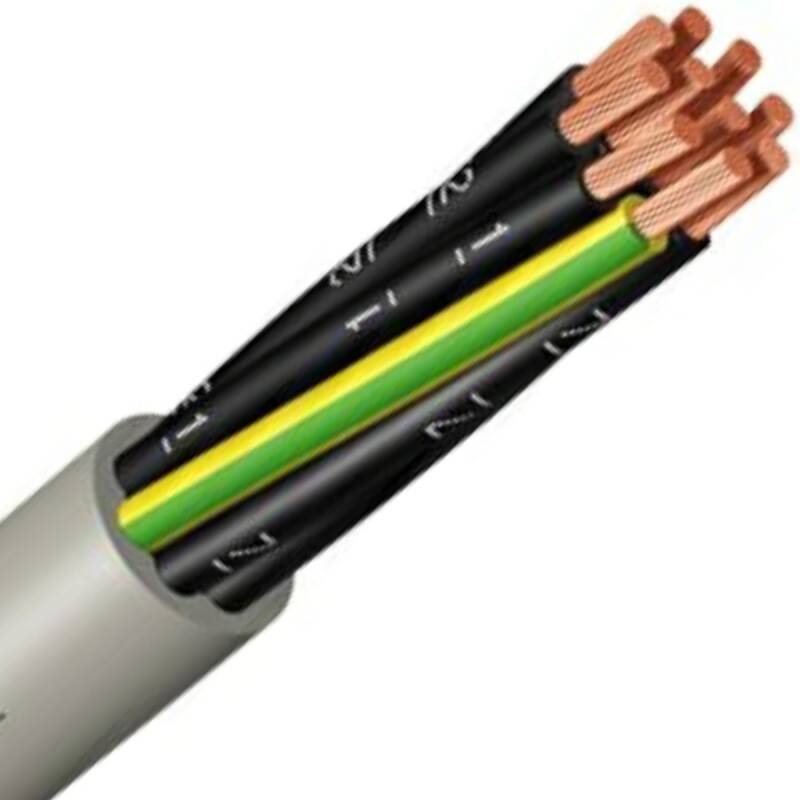

Control current cable type Y 14-core, 14 x 0.5mm²

  • Copper cable: VDE 0295 class 5
  • PVC core insulation: Y12 VDE 0207 section 4
  • PVC gray outer sheath: YM2 VDE 0207 section 5
  • Core colors: black, protective conductor: yellow/green
  • Operating conditions: nominal voltage: U/U = 300/500V
  • Permissible temperature at the surface:
    • in moving condition: -15°C to +70°C
    • when stationary: -40°C to +70°C

Delivery note:

Cut-off quantities of less than roll length are supplied as one length.


3M Scotchlok connector Cable connector

  • easy installation of the wires using a pipe wrench
  • No need to insulate the wires
  • Working temperature max. 105°C
  • wire diameter 0.5 - 1.5mm²
  • no voltage loss
DOWNLOADRoHS confirmation HTC

DOWNLOAD 3MScotchlok data sheet
