Multipolar electric cable, type Y 7-core 7 x 0.5mm²

SKU: BW4050.007
Auswahl Steuerzone / Lieferland
from
1,55 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting

wichtiger Hinweis

Kabelzuschnitte werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf
  • Available immediately
   Variants

Product picture
Item no.
Variation
Notice
Price
Quantity
Multipolar electric cable, type Y 7-core 7 x 0.5mm² 5m
BW4050.007.005
7 x 0,5mm², 5m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
14,08 €*
pc:
Multipolar electric cable, type Y 7-core 7 x 0.5mm² 10m
BW4050.007.010
7 x 0,5mm², 10m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
28,14 €*
pc.:
Multipolar electric cable, type Y 7-core 7 x 0.5mm² 15m
BW4050.007.015
7 x 0,5mm², 15m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
42,22 €*
pc.:
Multipolar electric cable, type Y 7-core 7 x 0.5mm² 20m
BW4050.007.020
7 x 0,5mm², 20m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
56,29 €*
pc.:
Multipolar electric cable, type Y 7-core 7 x 0.5mm² 25m
BW4050.007.025
7 x 0,5mm², 25m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
70,36 €*
pc.:
Control cable type Y 7-core, 7 x 0.5mm² 30m length
BW4050.007.030
7 x 0,5mm², 30m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
84,43 €*
pc.:
Multipolar electric cable, type Y 7-core 7 x 0.5mm² 40m
BW4050.007.040
7 x 0,5mm², 40m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
112,57 €*
pc.:
Multipolar electric cable, type Y 7-core 7 x 0.5mm² 50m
BW4050.007.050
7 x 0,5mm², 50m Länge
Kabelzuschnitt: kein Widerruf/keine Rückgabe
140,72 €*
pc.:
Multipolar electric cable, type Y 7-core 7 x 0.5mm² 100m
BW4050.007.100
7 x 0,5mm², 100m Rolle
Kabelzuschnitt: kein Widerruf/keine Rückgabe
281,44 €*
Reel:
Multipolar electric cable, type Y 7-core 7 x 0.5mm² 3M Scotchlok cables connector
BW4050.03M.007
3M Scotchlok Kabelverbinder
---
1,55 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

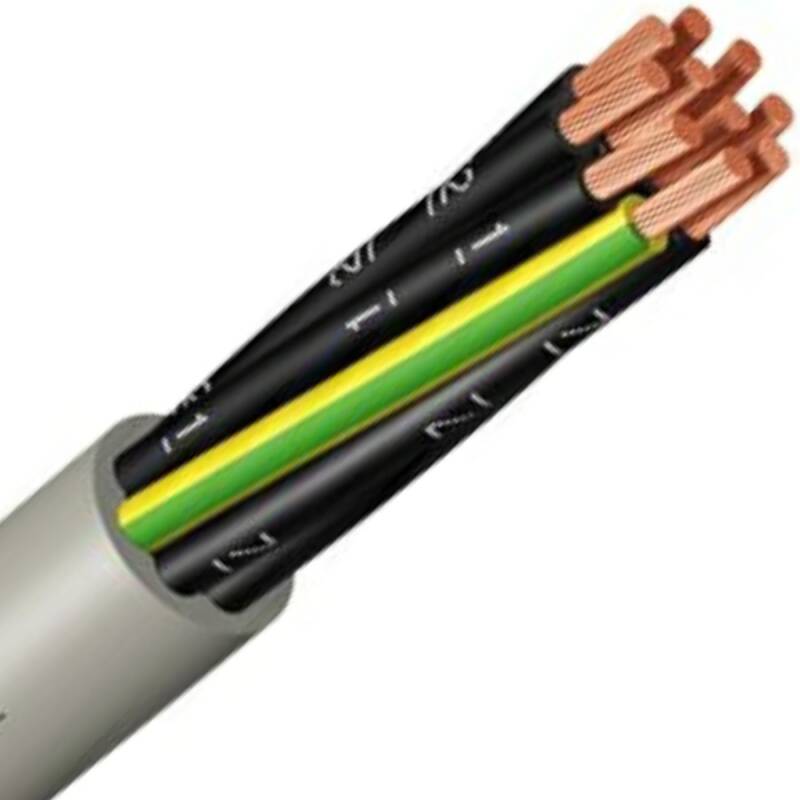

Control current cable type Y 7-core, 7 x 0.5mm²

  • Copper cable: VDE 0295 class 5
  • PVC core insulation: Y12 VDE 0207 section 4
  • PVC gray outer sheath: YM2 VDE 0207 section 5
  • Core colors: black, protective conductor: yellow/green
  • Operating conditions: nominal voltage: U/U = 300/500V
  • Permissible temperature at the surface:
    • in moving condition: -15°C to +70°C
    • when stationary: -40°C to +70°C

Delivery note:

Cut-off quantities of less than roll length are supplied as one length.


3M Scotchlok connector Cable connector

  • easy installation of the wires using a pipe wrench
  • No need to insulate the wires
  • Working temperature max. 105°C
  • wire diameter 0.5 - 1.5mm²
  • no voltage loss
DOWNLOADRoHS confirmation HTC
DOWNLOAD 3MScotchlok data sheet
