Variants

Item no.
Variation
A
B
C
I-ø hose
Price
Quantity
NS0801.006.004
6 x 4mm
42,5
6
4
6 x 4
0,83 €*
pc.:
NS0801.008.004
8 x 4mm
48
8
4
8 x 4
0,87 €*
pc.:
NS0801.008.006
8 x 6mm
53
8
6
8 x 6
1,12 €*
pc.:
NS0801.010.006
10 x 6mm
58
10
6
10 x 6
1,26 €*
pc.:
NS0801.010.008
10 x 8mm
60,5
10
8
10 x 8
1,38 €*
pc.:
NS0801.012.008
12 x 8mm
62
12
8
12 x 8
1,39 €*
pc.:
NS0801.012.010
12 x 10mm
64
12
10
12 x 10
1,51 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

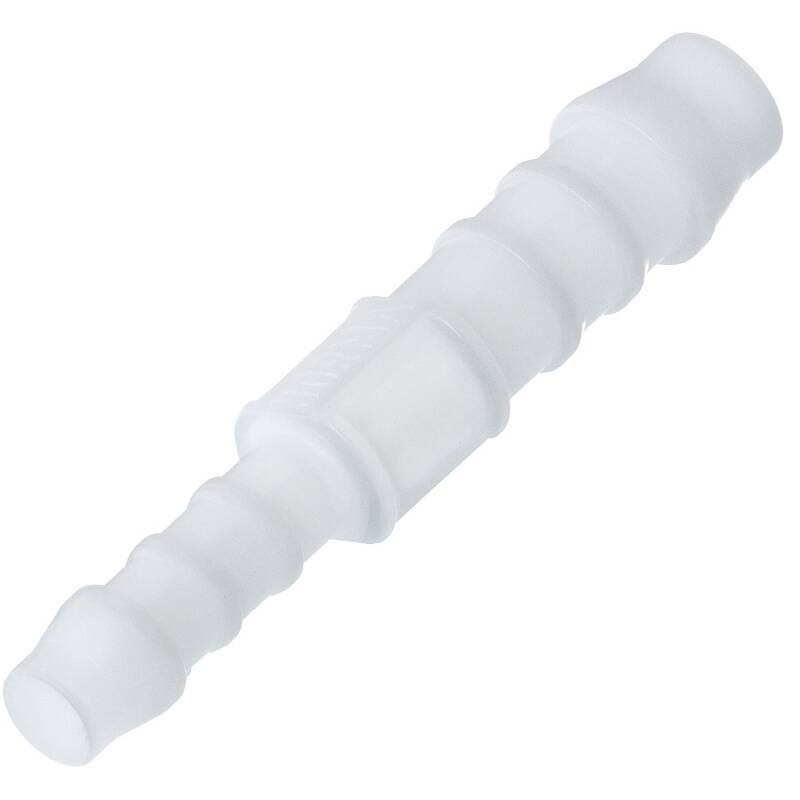

Kunststoff POM Schlauchverbinder gerade reduziert, beidseitig Schlauchtülle

Anschluss:
beidseitig Schlauchtülle
Temperatur:
- 40°C bis 80°C, kurzzeitig 110°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
POM
Farbe:
Weiss
Einsatzbereich:

Normaplast® Schlauchverbinder sind bewährte Schlauch- und Rohrverbindungskomponenten aus Kunststoff, die medienführende Leitungen sicher. zuverlässig und wirtschaftlich miteinander verbinden.

Normaplast® Schlauch- und Rohrverbinder finden Verwendung im Automobilbau, fast allen anderen Industriebereichen sowie im Anlagenbau und Bewässerungssystemen.

Schlauchtüllen aus PA6: Durch die hohe Steifigkeit bei niedrigen Reibwerten sowie die ausgezeichnete Dimensionsstabilität und thermische Stabilität als technischer Kunststoff wird PA6 in der Industrie besonders für Präzisionsteile eingesetzt. Die akkurate Ausformung dieser Schlauchtüllen zeigt dies deutlich.


Vorteile auf einem Blick

  • Äußerst hohe Festigkeit
  • Langlebigkeit
  • Geringes Gewicht
  • Dämpfungs-/Absorptionsfähigkeit
  • Abriebfestigkeit
  • Hohe Schlagfestigkeit
  • max. zulässiger Druck 10 bar
  • Temperaturbereich -40°C bis 120°C je nach eingesetztem Kunststoff
  • u.a. einsetzbar für Kühlwasser, Schweibenwaschflüssigkeit, Benzin, Öle
  • Entflammbarkeitsklasse (UL 94)
  • POM, PP, PA6.6 und PA12:HB (horizontale Brennlage)

orange dot Download

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit Kunststoff PA6 und POM
