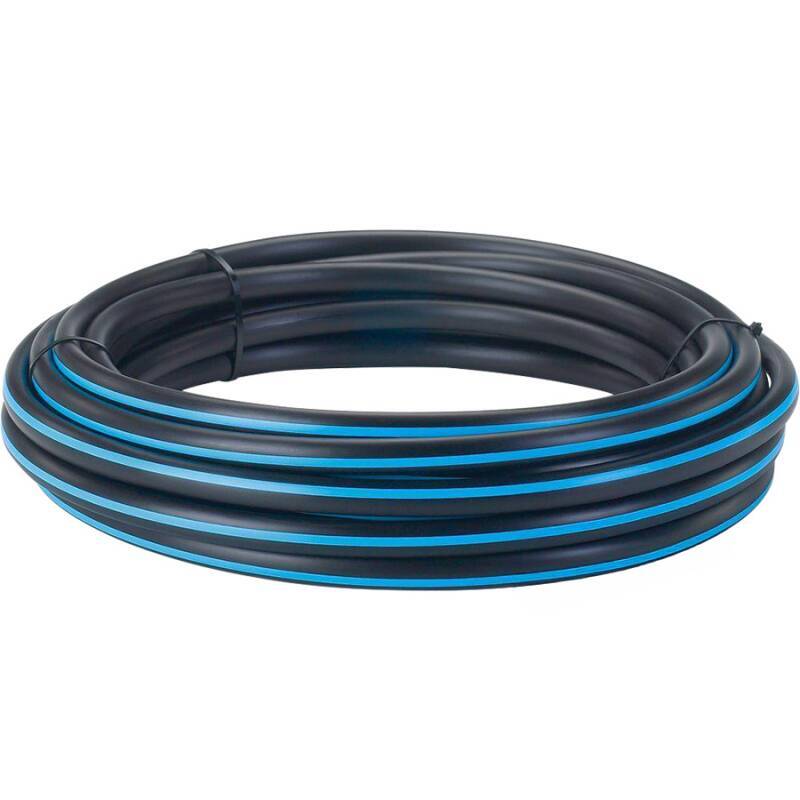

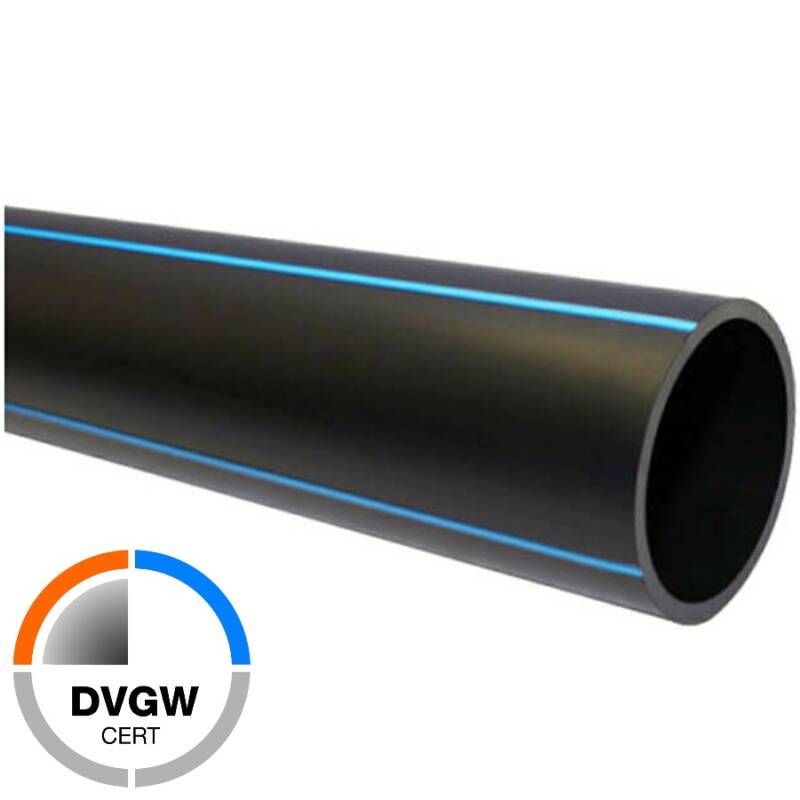

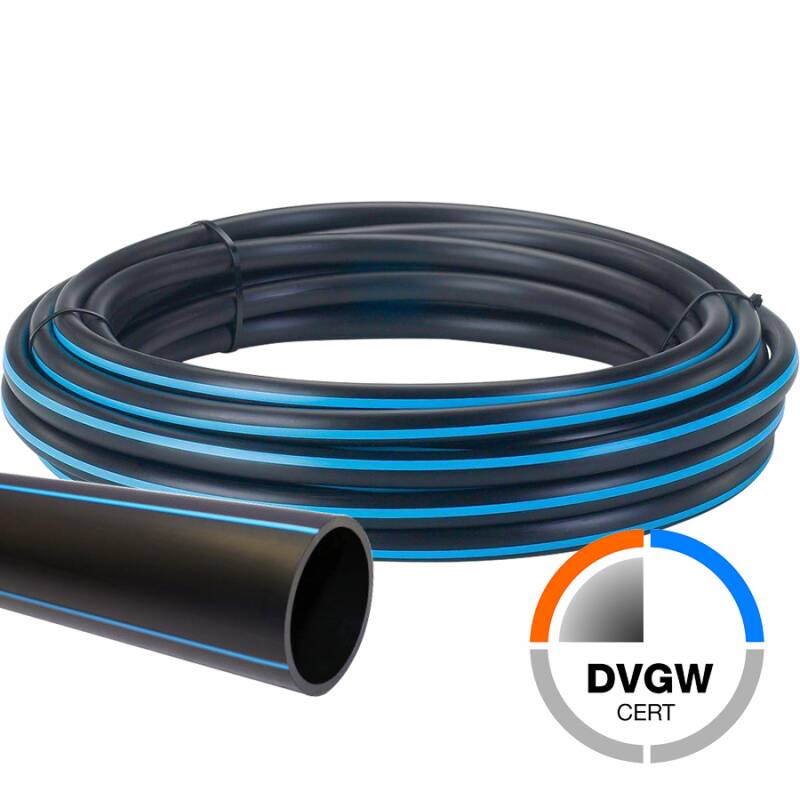

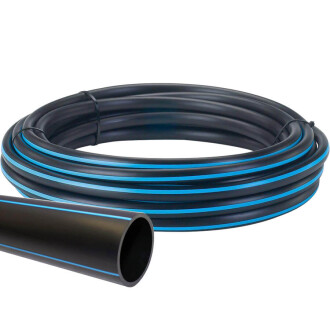

PE pipe 25 x 2,3mm - 16 bar, DVGW, reel and rod
1,20 €

including 19% VAT., plus shipping

Item number: PE0025

wichtiger Hinweis

Rohrzuschnitt 1m und 2m und Rollenware werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.

Product picture Item no. Variation Price Quantity
PE pipe 25 x 2,3mm - 16 bar, DVGW bar 1m PE0025.1 Stange je 1m Länge 1,20 €*
PE pipe 25 x 2,3mm - 16 bar, DVGW bar 2m PE0025.P16.J02 Stange je 2m Länge 2,70 €*
Minimum order quantity: 10
PE pipe 25 x 2,3mm - 16 bar, DVGW bar 6m PE0025.6 Stange je 6m Länge 7,21 €*
PE pipe 25 x 2,3mm - 16 bar, DVGW reel 5m PE0025.016.005 Rolle 5m 7,88 €*
PE pipe 25 x 2,3mm - 16 bar, DVGW reel 10m PE0025.016.010 Rolle 10m 9,98 €*
PE pipe 25 x 2,3mm - 16 bar, DVGW reel 25m PE0025.25 Rolle 25m 23,79 €*
PE pipe 25 x 2,3mm - 16 bar, DVGW reel 50m PE0025.50 Rolle 50m 49,98 €*
PE pipe 25 x 2,3mm - 16 bar, DVGW reel 100m PE0025.100 Rolle 100m 85,68 €*

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PE-HD 100 Druckrohre 25mm
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
16 bar

PE Rohr Druckrohr schwarz mit blauen Kennstreifen für DVGW Trinkwasserzulassung

  • PE HD 100 Polyethylen High Density, SDR 11, DIN 8074/8075, EN 12201
  • Betriebsdruck: max. PN 16 bar bei 20 °C Medium Wasser
  • Temperaturbereich Rohr: - 25°C bis + 60°C
  • PE Rohre in der Farbe Schwarz mit blauen Streifen für DVGW Trinkwasserzulassung
  • Hohe chemische Beständigkeit, beständig gegen Laugen, Salzlösungen und anorganische Säuren, beständig gegen Alkohol, Öl und Benzin
  • Korrisionsbeständig
  • Beständig gegen UV-Strahlen
  • Polyethylen Rohre sind physiologisch und toxikologisch unbedenklich
  • Durch hohe Elastizität frostbeständig (Verbau in nicht frostsicherer Umgebung oder Tiefe setzt eine konstante Zirkulation voraus bzw. eine Ablassmöglichkeit an tiefster Stelle)
  • Hohe Abriebfestigkeit

Information: ein PE-Rohr zur Trinkwasserversorgung oder Brauchwasserversorgung kann innerhalb des angezeigten Temperaturbereichs bis max. 60°C bei reduzierten Wertigkeiten auch als Solarrohr für die Poolwassererwärmung genutzt werden. Es ist aber nicht für die Warmwasserinstallation oder für Solaranlagen Brauchwassererwärmung geeignet.

orange dot Technische Daten

Rohr A-ø mm
Wandstärke mm
max. Druck bar bei 20°C
20mm
2,0
16
25mm
2,3
16
32mm
3,0
16
40mm
3,7
16
50mm
4,6
16
63mm
5,8
16
Die Angaben gelten für das Medium Wasser, Grundlage DIN 8074/75

orange dot Kleinster zulässiger Biegeradius in Abhängigkeit zur Verlegetemperatur

Verlegetemperatur °C
Biegeradius mm
0°C
50 x Außen-ø
10°C
35 x Außen-ø
20°C
20 x Außen-ø
Für kleinere Radien sind Klemmfittings zu verwenden.


orange dot PP Polypropylen Klemmverbinder & Werkzeuge für PE-Rohre


orange dot Download

DOWNLOAD DVGW Zertifikat

DOWNLOAD Chemische Beständigkeit von Kunststoffen
