PP Y-filter with female therad Irritec type D/E

from
7,49 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
l/h
G
H
L
Type
Price
Quantity

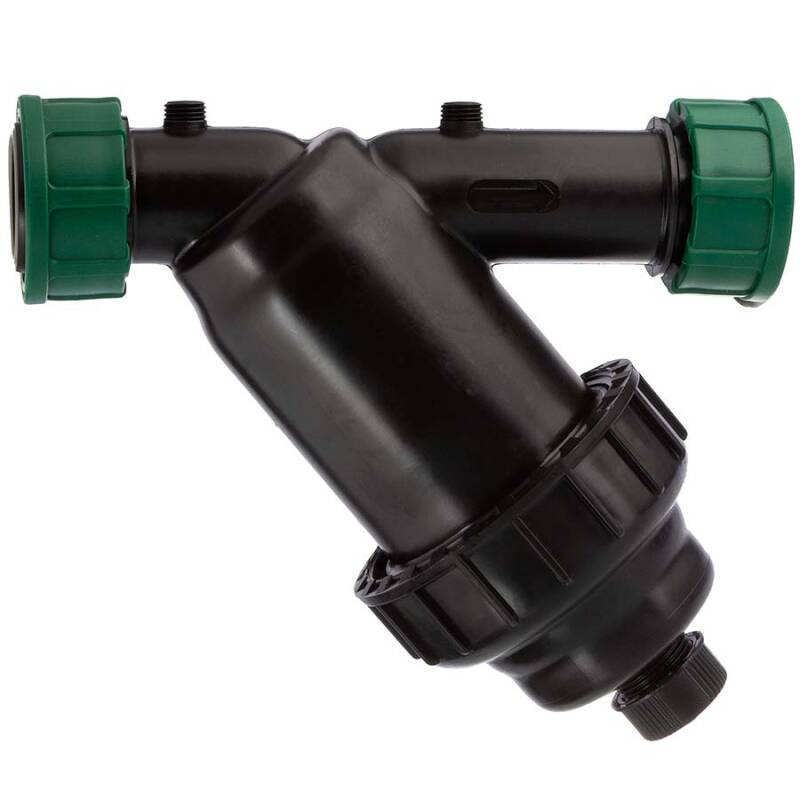

PP Y-filter IRRITEC type D, union nut female thread 1" stainless steel filter 120 mesh
BW205D.EDL.032
1" Edelstahlfilter 120 Mesh
89
5000
1" (33,25mm)
151
157
D
11,51 €*
pc.:
PP Y-filter IRRITEC type E, union nut female thread 1 1/2" stainless steel filter 120 mesh
BW205E.EDL.050
1 1/2" Edelstahlfilter 120 Mesh
105
10000
1 1/2" (47,81mm)
161
221
E
15,42 €*
pc.:

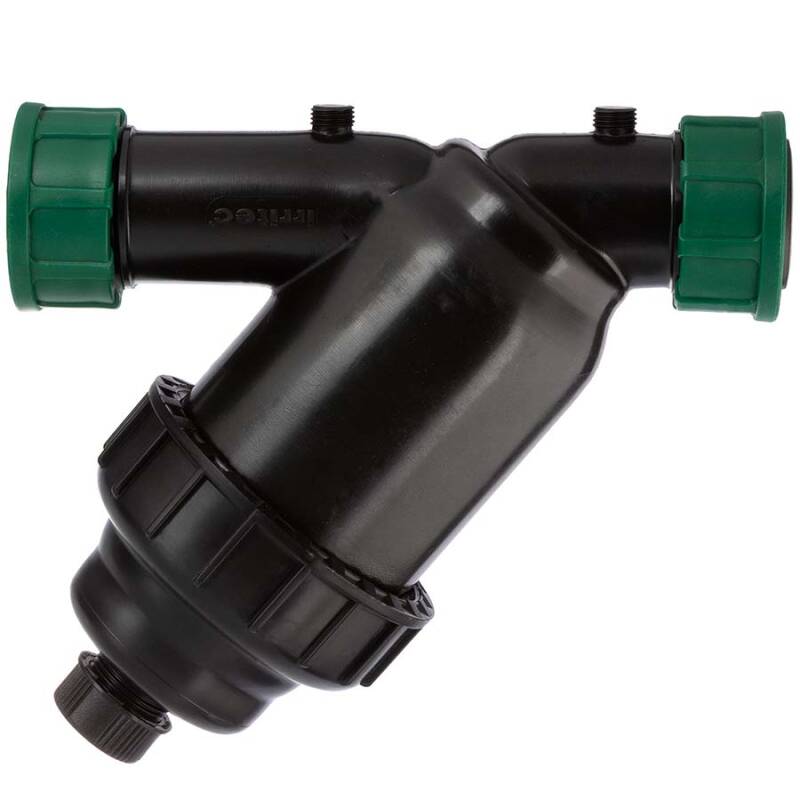

PP Y-filter IRRITEC type D, union nut female thread 1" disk filter 120 mesh
BW205D.SCH.032
1" Scheibenfilter 120 Mesh
89
5000
1" (33,25mm)
151
157
D
14,78 €*
pc.:
PP Y-filter IRRITEC type E, union nut female thread 1 1/2" disk filter 120 mesh
BW205E.SCH.050
1 1/2" Scheibenfilter 120 Mesh
105
10000
1 1/2" (47,81mm)
161
221
E
22,53 €*
pc.:

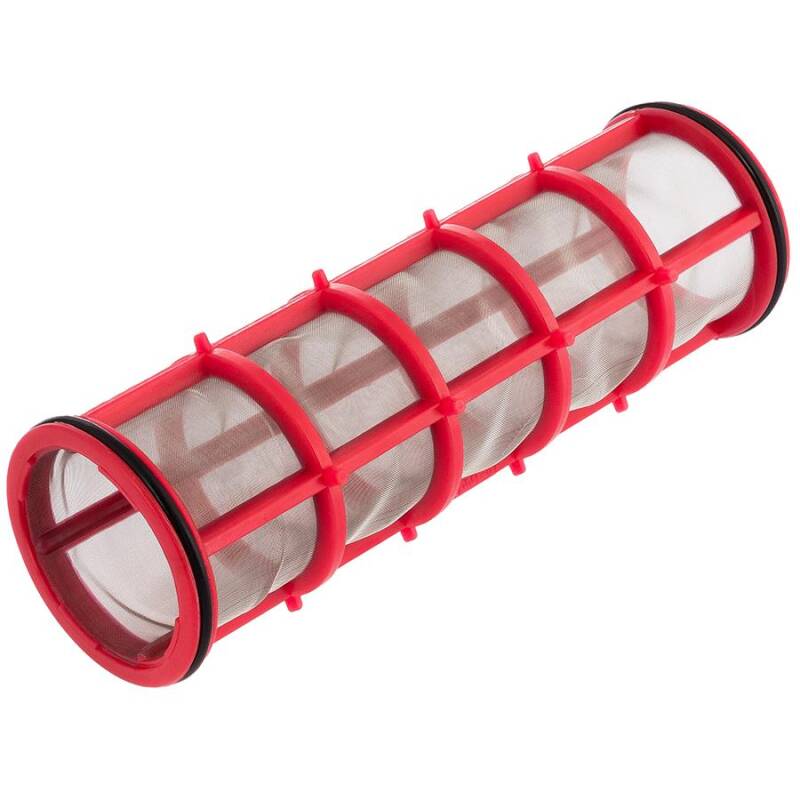

PP Y-filter IRRITEC type D, spare part stainless steel filter 120 mesh red
BW205D.ERS.120
Ersatzfilter Edelstahl
120 Mesh für
3/4" und 1"
---
---
---
---
---
D
7,49 €*
pc.:
PP Y-filter IRRITEC type D, spare part stainless steel filter 75 mesh white
BW205D.ERS.075
Ersatzfilter Edelstahl
75 Mesh für
3/4" und 1"
---
---
---
---
---
D
9,14 €*
PP Y-filter IRRITEC type D, spare part stainless steel filter 200 mesh black
BW205D.ERS.200
Ersatzfilter Edelstahl
200 Mesh für
3/4" und 1"
---
---
---
---
---
D
9,82 €*
pc.:
PP Y-filter IRRITEC type D, spare part disk filter 120 mesh
BW205D.ERS.SCH
Ersatzfilter Scheiben
120 Mesh für
3/4" und 1"
---
---
---
---
---
D
9,17 €*
pc.:

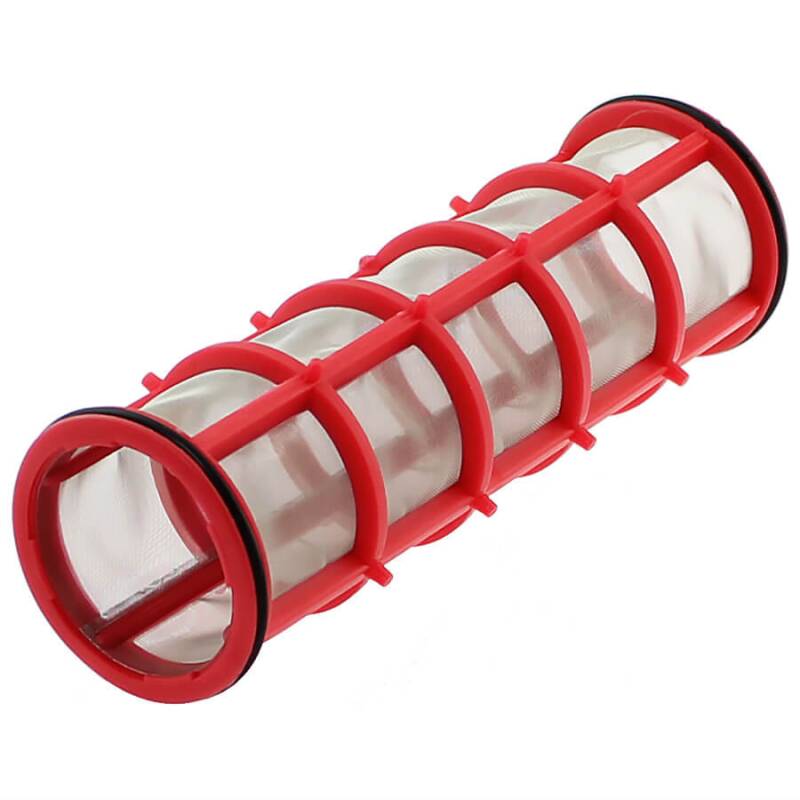

PP Y-filter IRRITEC type E, spare part stainless steel filter 120 mesh red
BW205E.ERS.120
Ersatzfilter Edelstahl
120 Mesh
für 1 1/4"
und 1 1/2"
---
---
---
---
---
E
12,46 €*
pc.:
PP Y-filter IRRITEC type E, spare part stainless steel filter 75 mesh white
BW205E.ERS.075
Ersatzfilter Edelstahl
75 Mesh
für 1 1/4"
und 1 1/2"
---
---
---
---
---
E
12,46 €*
pc.:
PP Y-filter IRRITEC type E, spare part stainless steel filter 200 mesh black
BW205E.ERS.200
Ersatzfilter Edelstahl
200 Mesh
für 1 1/4"
und 1 1/2"
---
---
---
---
---
E
15,11 €*
pc.:

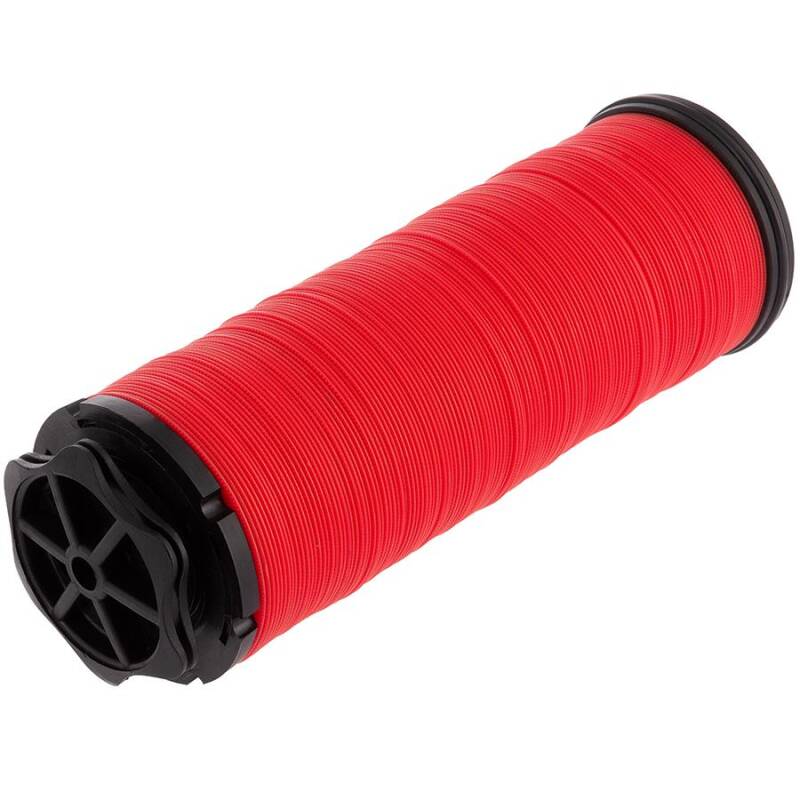

PP Y-filter IRRITEC type E, spare part disk filter 120 mesh
BW205E.ERS.SCH
Ersatzfilter Scheiben
120 Mesh
für 1 1/4"
und 1 1/2"
---
---
---
---
---
E
19,72 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

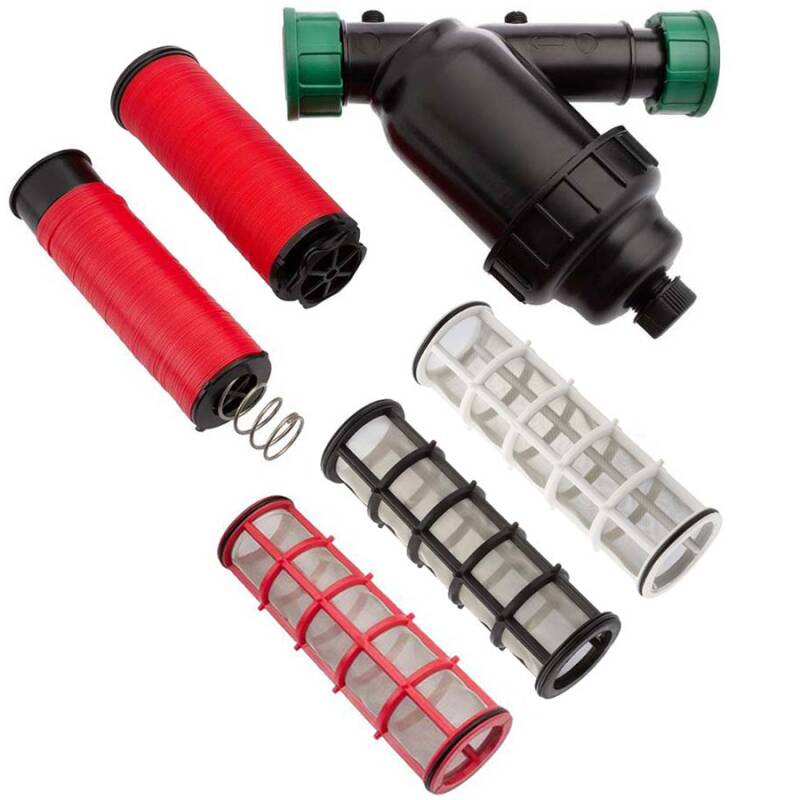

PP Y-filter Irritec with drain option and 2-way female threaded connection

Irritec filters provide the best filtration protection for any irrigation system. The different filtration grades range from 75 mesh to 200 mesh and can therefore be used in a wide variety of applications. In domestic garden irrigation, 120 mesh is usually recommended to protect downstream components such as solenoid valves, pop-up sprinklers, gear sprinklers and nozzles from damage and increased wear. Accordingly, the filter housings already contain filter cartridges with a filtration level of 120 mesh as standard.

Another difference is the stainless steel screen filter and disc filter variants. Compared to screen filters, disc filters have a larger filter surface and therefore have a longer maintenance and cleaning interval. This is particularly advantageous for well water with a high sand content or surface water with a lot of organic dirt particles, for example. For cisterns or tanks with less soiling, on the other hand, the screen filter can be used.

  • Including filter cartridge stainless steel sieve 120 mesh or disk filter 120 mesh (according to selection)
  • Housing made of black polypropylene, UV-stable
  • Max. Max. working pressure 10 bar at 20°C medium water
  • Drainage via 3/4" external thread incl. end cap

The connection using union nuts with internal thread and partially countersunk sealing O-rings enables the Y-filter to be installed and removed quickly in the pipework.


Important: Stainless steel filters cannot be used in a disk filter housing and, conversely, disk filters cannot be used in a screen filter housing!
Irritec tip: Filters connected in parallel significantly reduce the maintenance intervals - especially in heavily contaminated water!

Durchflussrichtung Y-Filter Edelstahlnetzfilter vs. Scheibenfilter
Durchflussrichtung >Y-Filter Edelstahlnetzfilter vs. Scheibenfilter

Flow direction Y-filter


When selecting the screen filter and disc filter variants, the flow direction must be observed. In the case of the disc filter, the housing is rotated or mirrored in comparison to the mesh filter,

Cleaning the disk filter using the example of the 1 1/4" or 1 1/2" variant

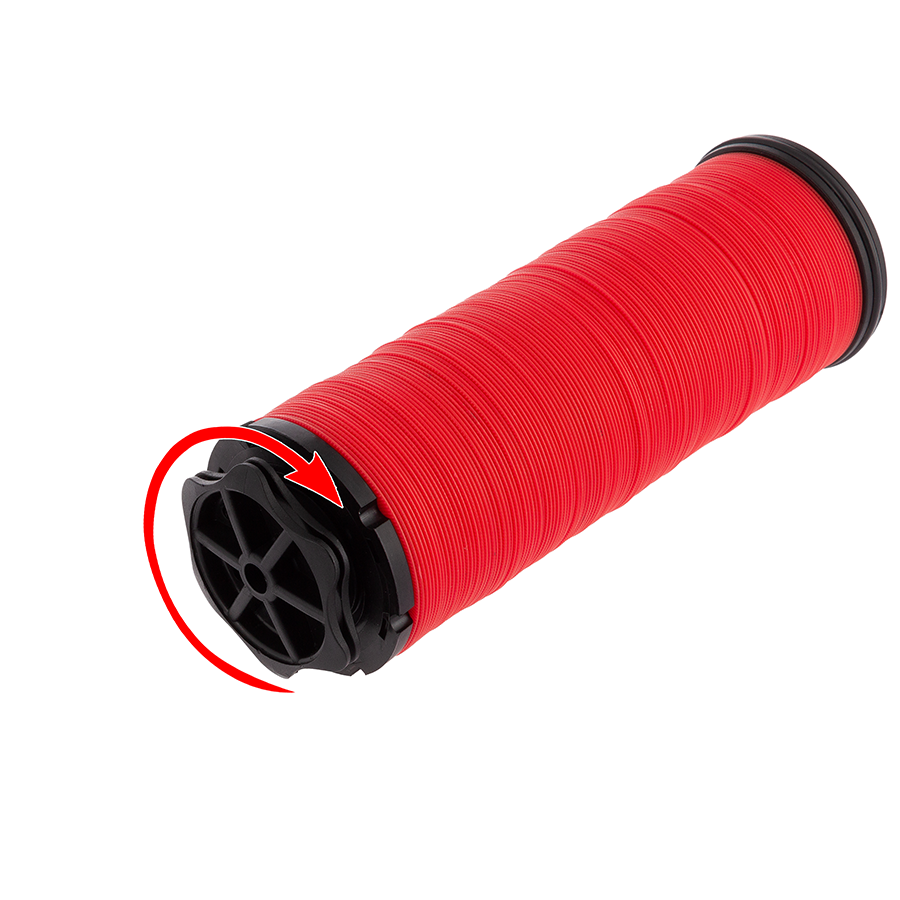

The disk filter can be opened by simply turning the wheel ...

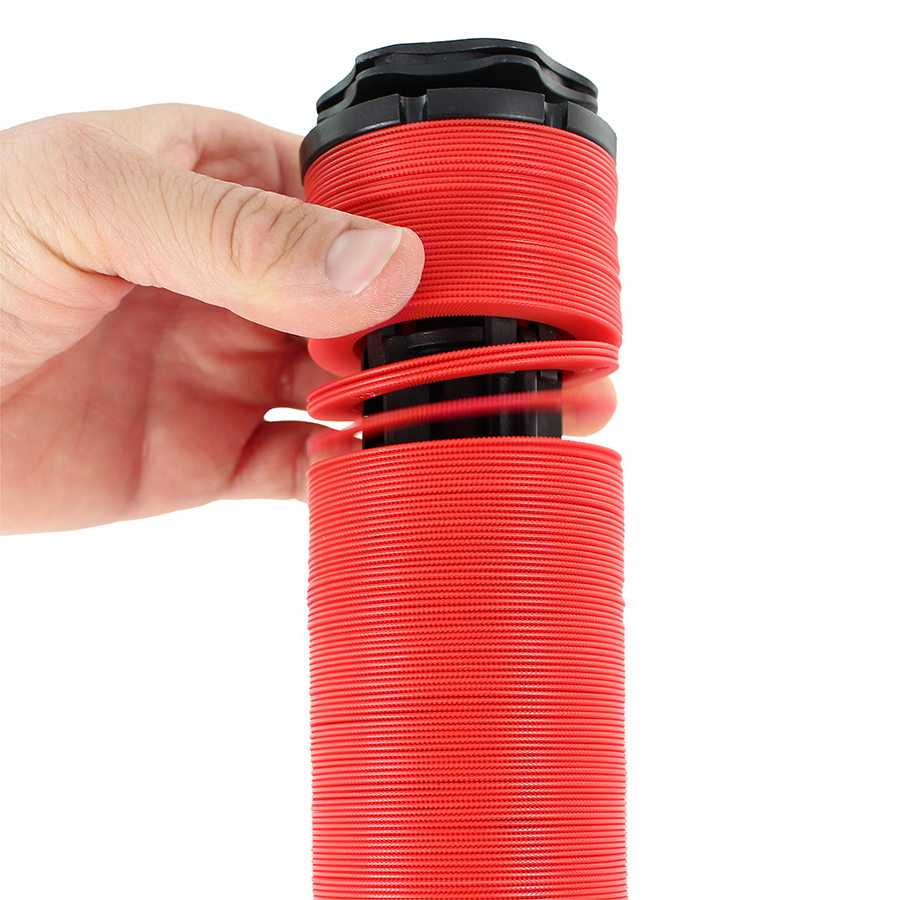

... and the individual filter disks can now be separated and cleaned with clear water.

Reinigung Scheibenfilter
Reinigung Scheibenfilter
YFI400 Irritec Y-Filter Druckverlust
DOWNLOAD The thread identification - or why 1" is not 25.4mm
