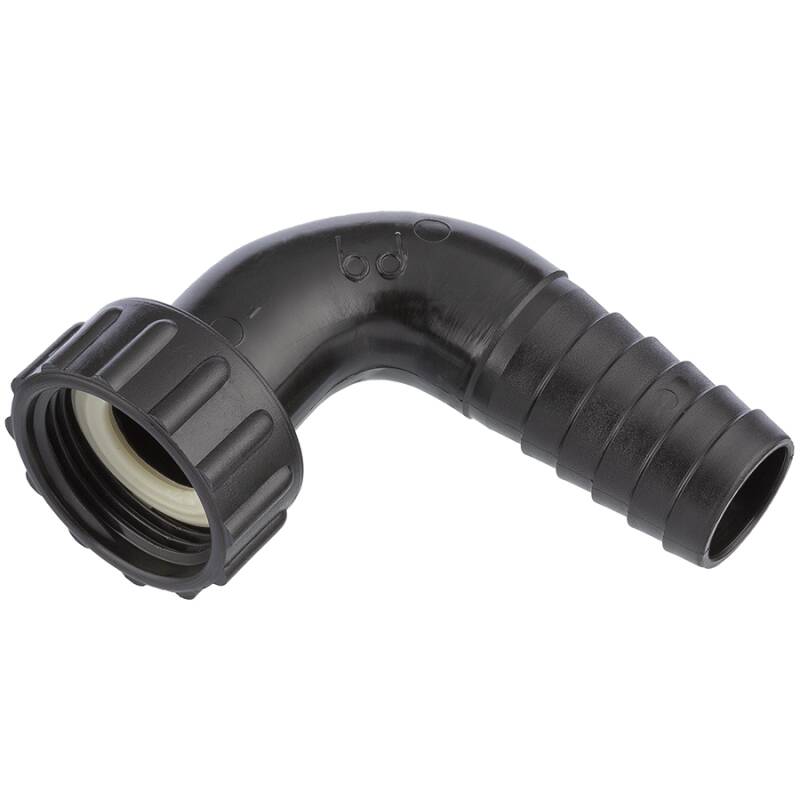

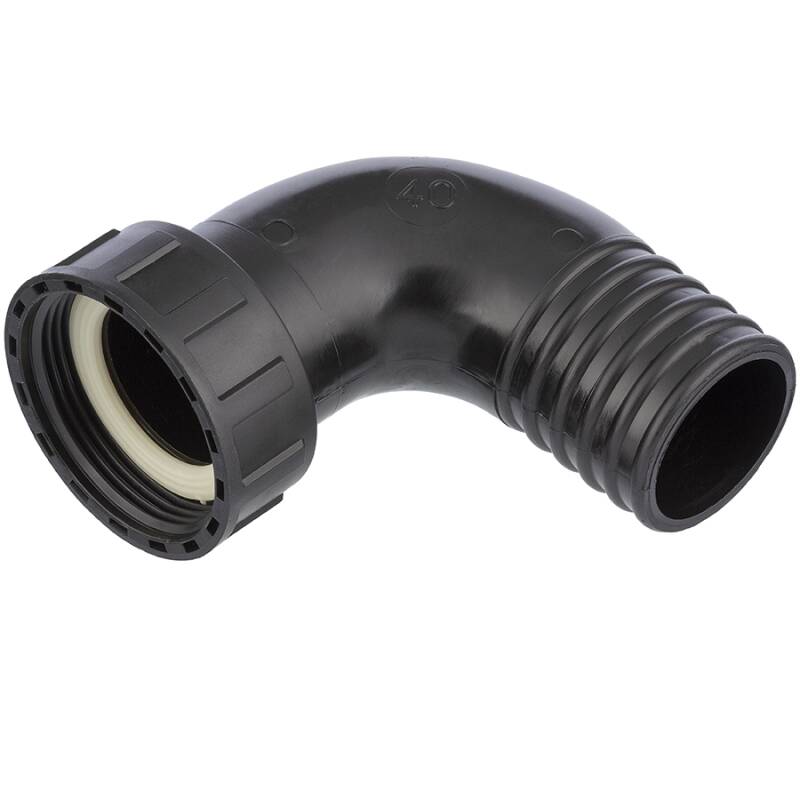

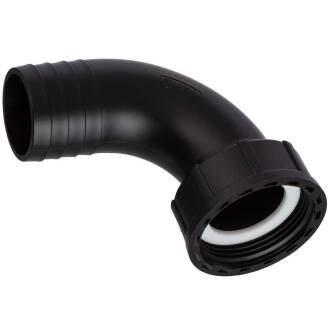

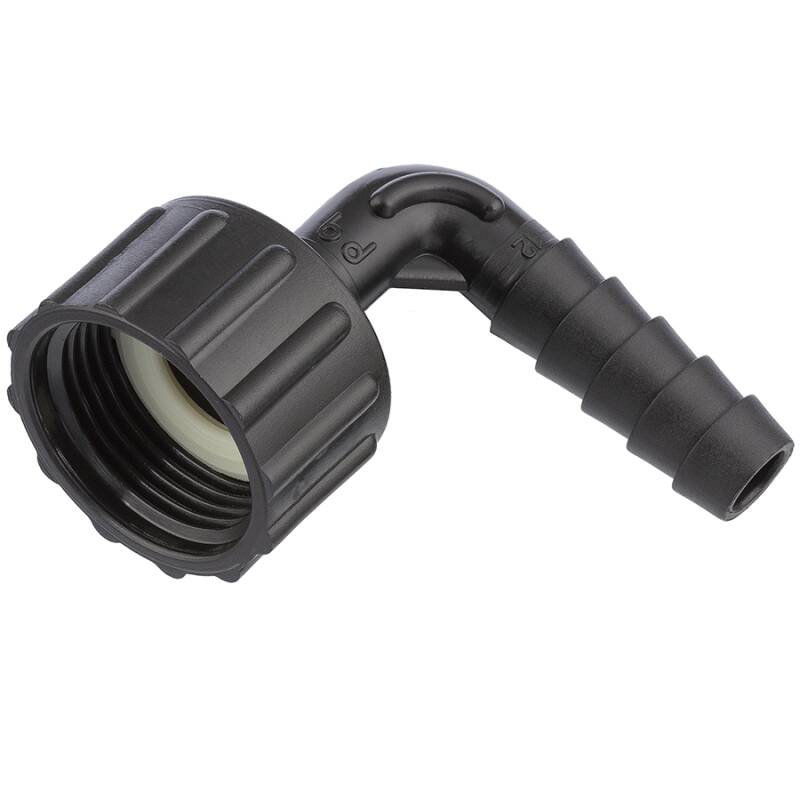

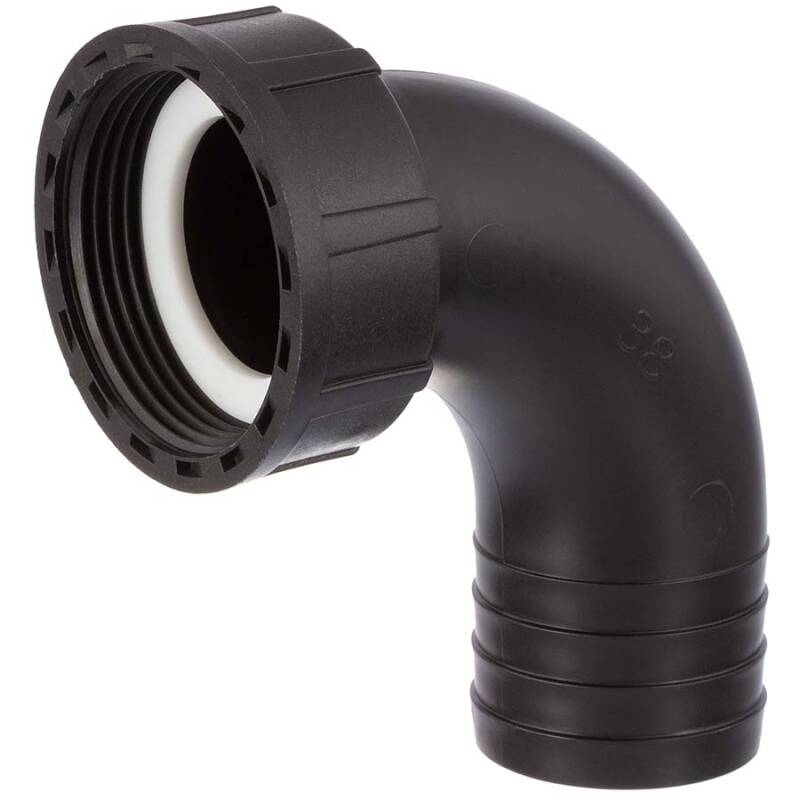

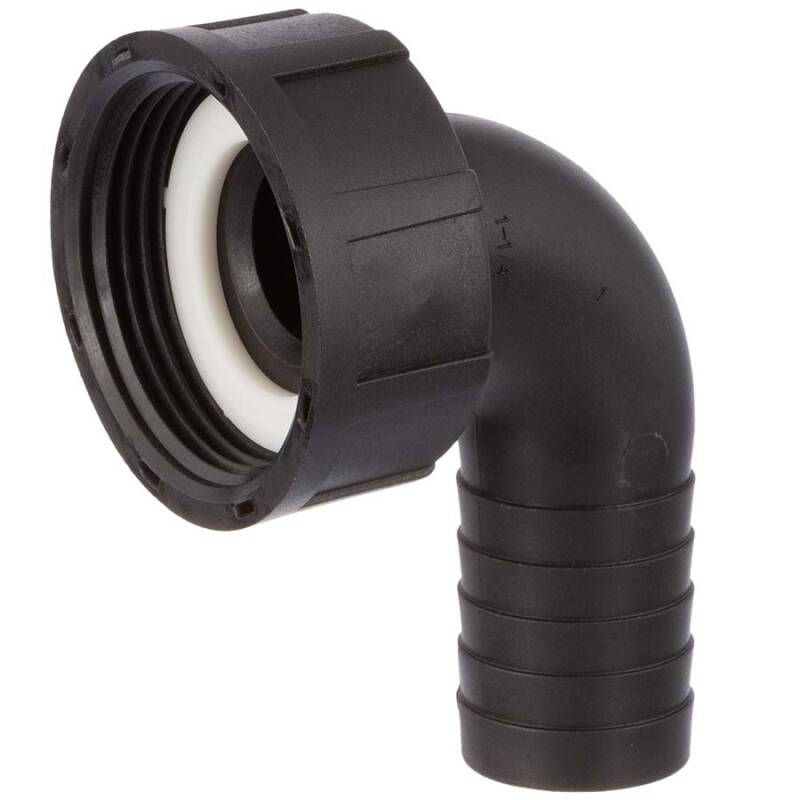

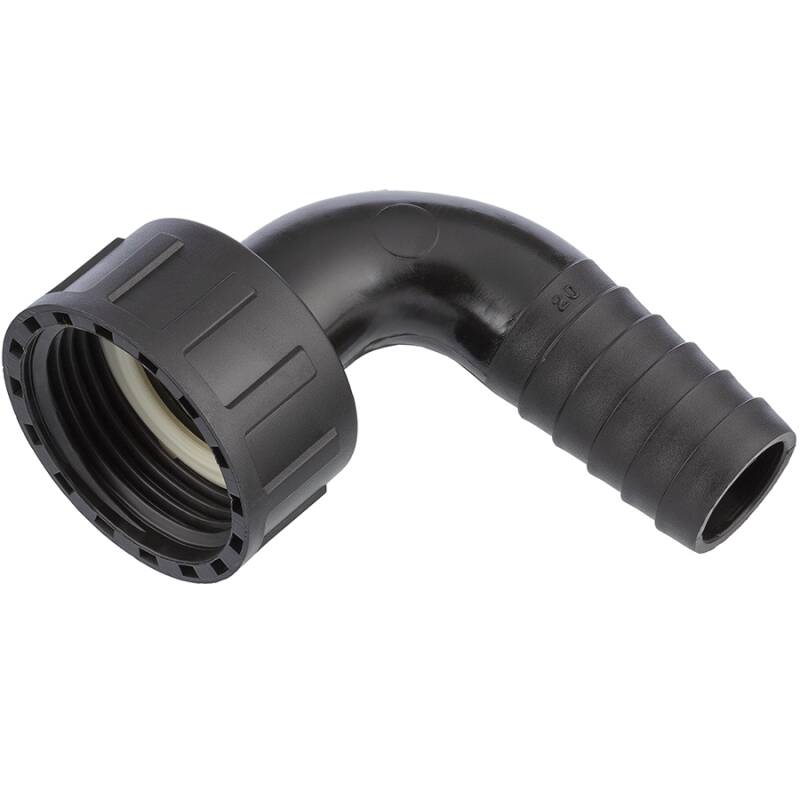

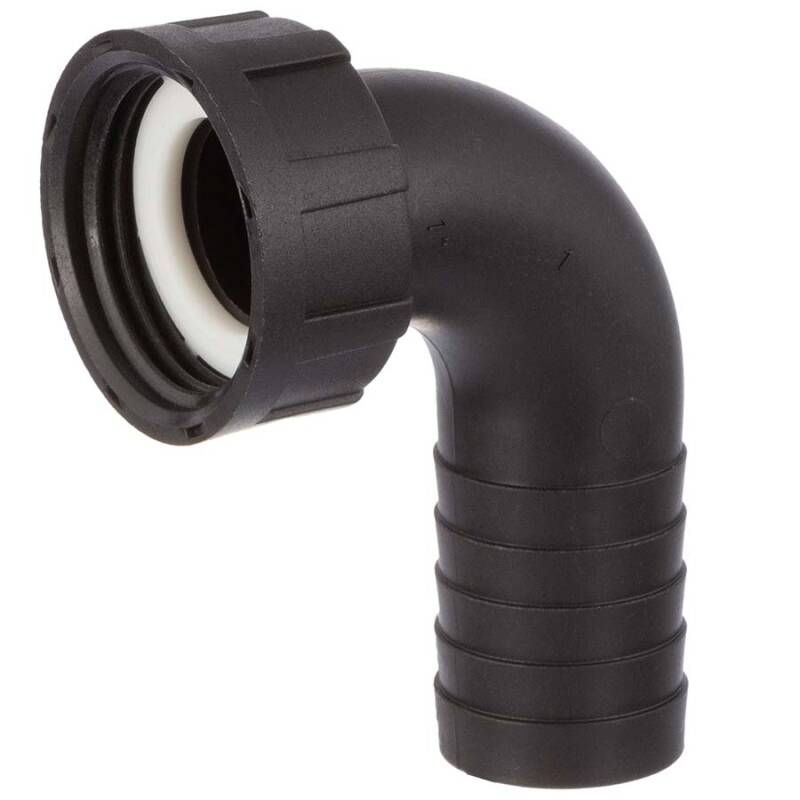

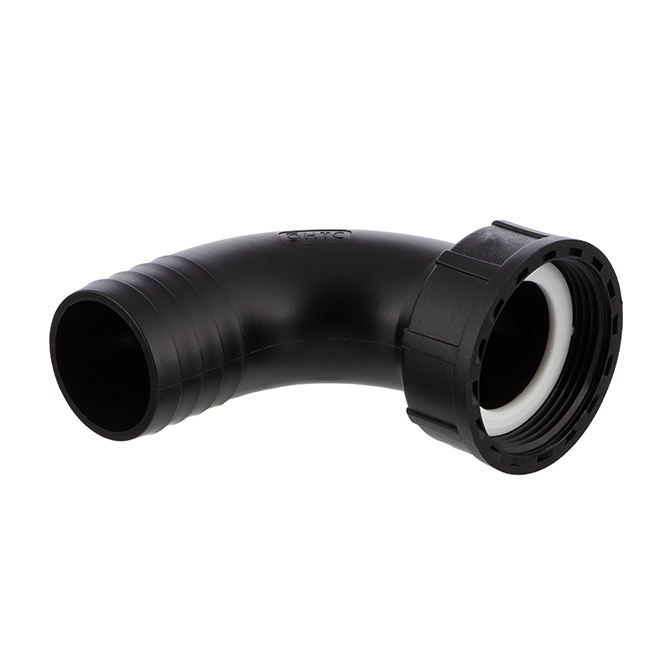

PP elbow 90° hose tail with female thread and nut

1,56 €

including 19% VAT., plus shipping

Item number: PF0806

How to measure a threaded fitting

3D View

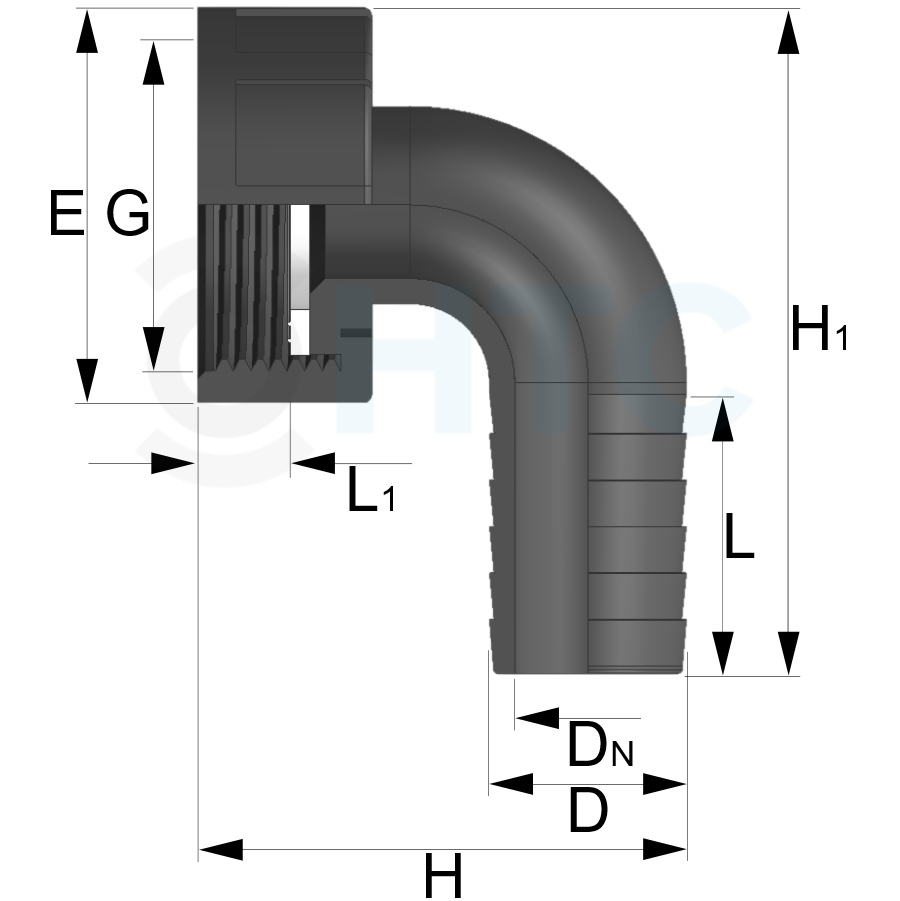

Product picture	Item no.	Variation	D	DN	E	G	H	h1	L(a)	L(1)	Weight	Price	Quantity
	PF0806.020.012	12mm x 1/2"	7	12	27,5	1/2" (20,96mm)	50	59	30	10,5	7	1,56 €^*	pc:
	PF0806.025.012	12mm x 3/4"	7	12	33	3/4" (26,44mm)	50	61	30	11,5	11	1,68 €^*	pc:

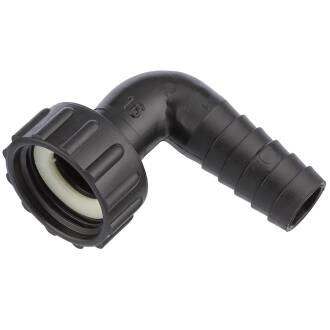

	PF0806.025.016	16mm x 3/4"	11	16	33	3/4" (26,44mm)	48	61	30	7	11	1,73 €^*	pc:
	PF0806.025.019	19mm x 3/4"	15	19	33	3/4" (26,44mm)	56	73	33	8	12	1,80 €^*	pc:

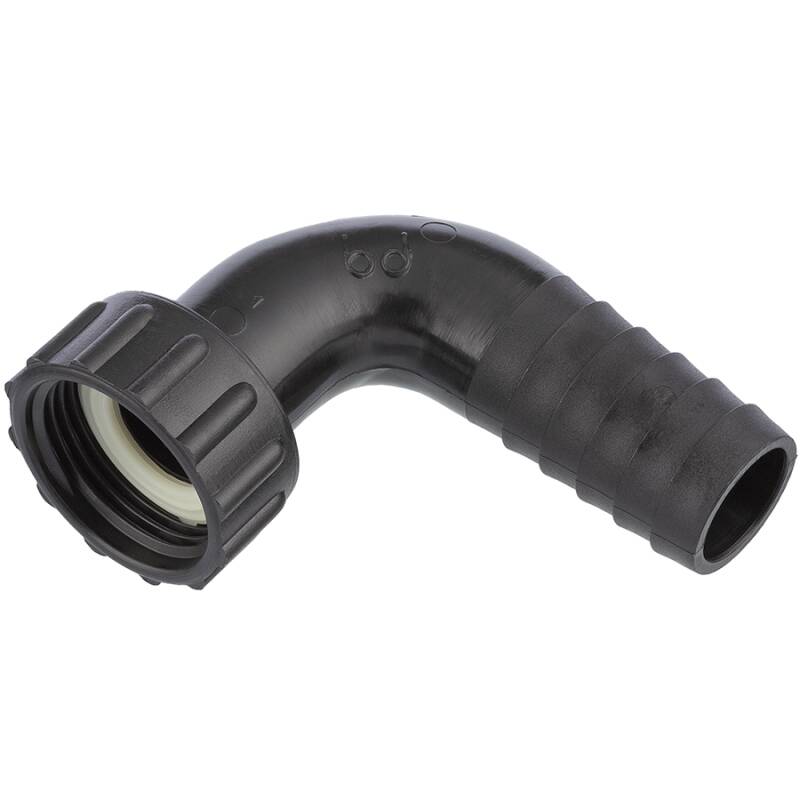

	PF0806.025.020	20mm x 3/4"	15,5	20	33	3/4" (26,44mm)	56	73	33	8	14	1,82 €^*	pc:

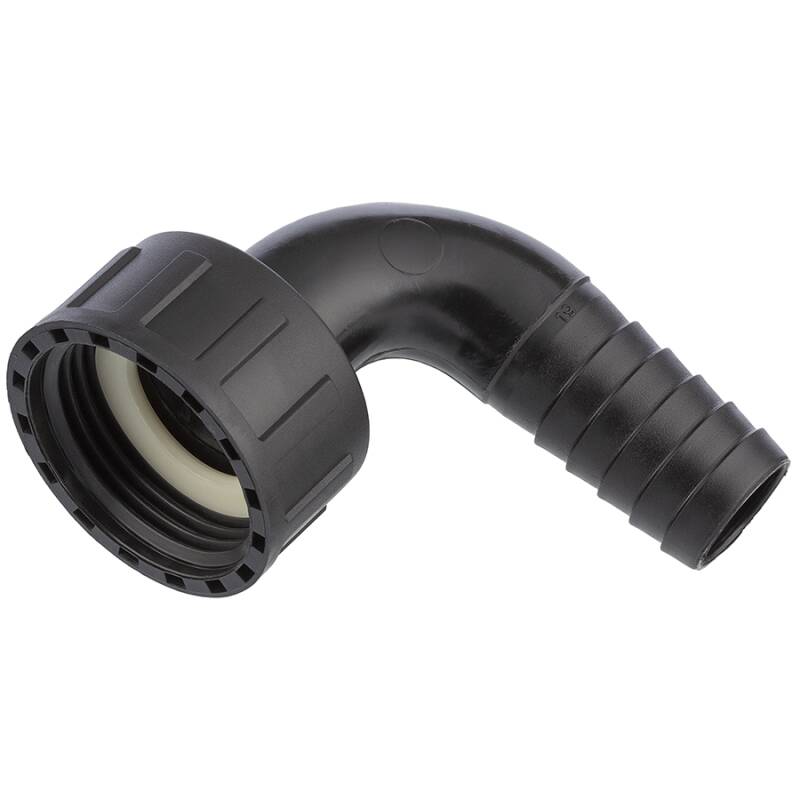

	PF0806.032.019	19mm x 1"	15	19	40	1" (33,25mm)	60	78	32,5	13	20	2,07 €^*	pc:
	PF0806.032.020	20mm x 1"	15	20	40	1" (33,25mm)	59	77	33	13	20	2,12 €^*	pc:
	PF0806.032.025	23,5mm x 1"	19,5	23,5	40,5	1" (33,25mm)	61	82	30	10	22	2,12 €^*	pc:
	PF0806.040.025	25mm x 1 1/4"	19,5	25	51	1 1/4" (41,91mm)	65	87	30	12	30	2,62 €^*	pc:

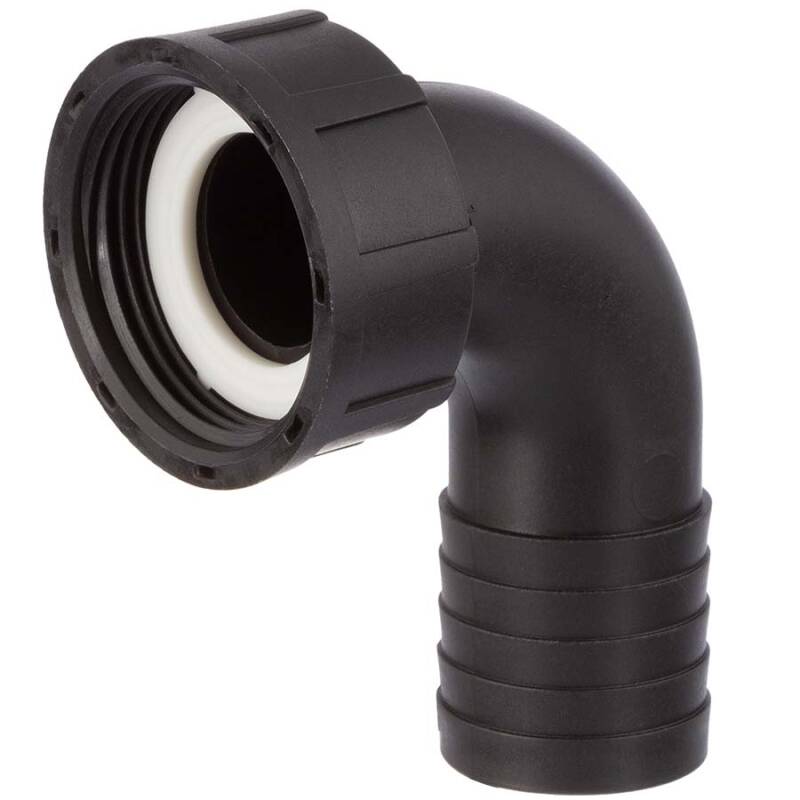

	PF0806.040.032	32mm x 1 1/4"	24	32	50	1 1/4" (41,91mm)	72,5	94	31	12	37	2,80 €^*	pc:
	PF0806.050.038	38mm x 1 1/2"	33	38	57,5	1 1/2" (47,80mm)	90	106	35	11,5	60	4,24 €^*	pc:
	PF0806.050.040	40mm x 1 1/2"	33	40	57,5	1 1/2" (47,80mm)	96	112	35	11,5	57	4,24 €^*	pc:

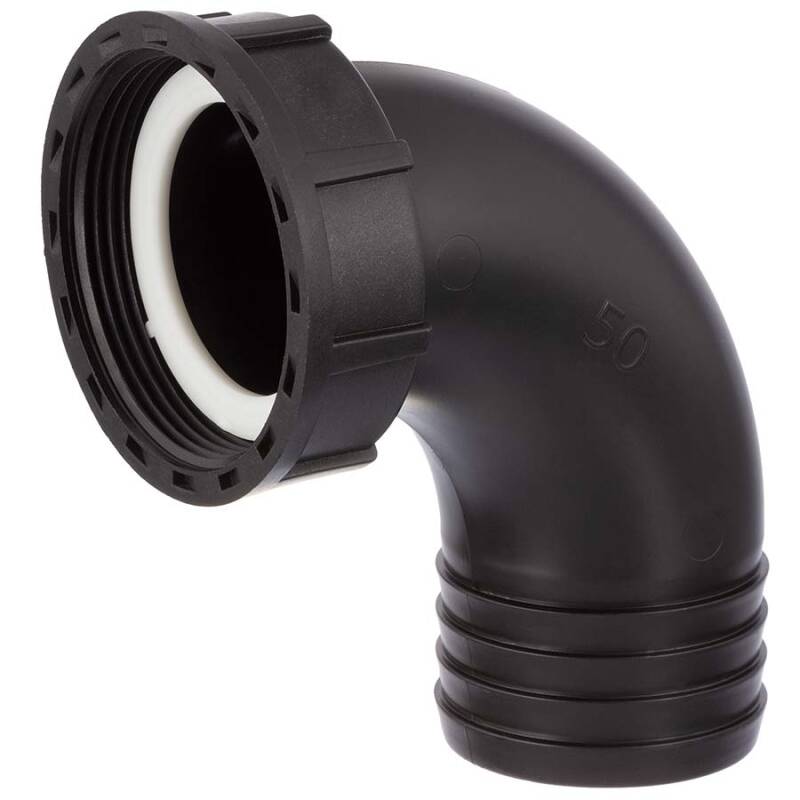

	PF0806.063.050	50mm x 2"	42,5	50	71	2" (59,61mm)	98	121	35	12,5	87	5,32 €^*	pc:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description Miscellaneous

Description

PP Winkelschlauchtülle 90°, Überwurfmutter x Tülle

Anschluss:

Überwurfmutter Innengewinde x Schlauchtülle 90°

Gewinde:

BSP G, , Abdichtung mit Teflonband o.ä.

Temperatur:

0°C bis 80°C

Arbeitsdruck ():

max. 6 bar bei 20°C

Material:

PP Polypropylen glasfaserverstärkt

Dichtung:

Flachdichtung EPDM (lebensmittelecht)

Farbe:

Schwarz ähnl. RAL 9011, Dichtung: Weiss

absolut ungiftig, geruchs- und geschmackslos
geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
Wetter-, Ozon und UV-beständig
