PP swing check valve, foot valve, suction strainer, vertical, reinforced internal thread

SKU: AK0313
Auswahl Steuerzone / Lieferland
from
158,31 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
C
D
F
G
H
Price
Quantity

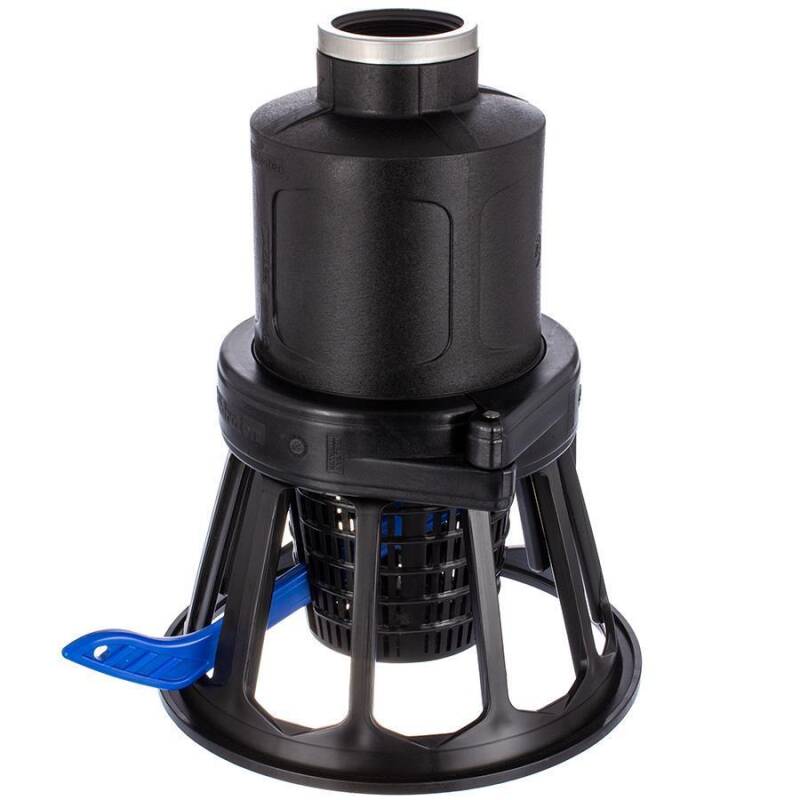

PP foot valve with aspiration filter, reinforced female thread 2"
AK0313.000.063
2"
184
352
259
315
2" (59,61mm)
38
158,31 €*
pc.:

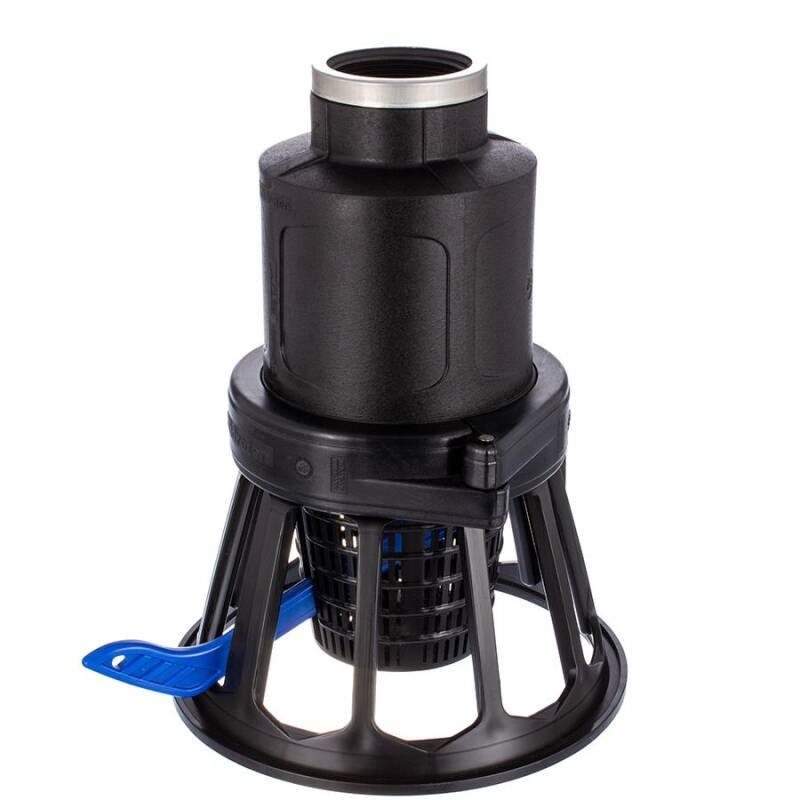

PP Rückschlagklappe Fußventil Saugkorb stehend Innengewinde verstärkt 2 1/2"
AK0313.000.075
2 1/2"
184
352
259
329
2 1/2" (75,18mm)
33
158,31 €*
pc.:

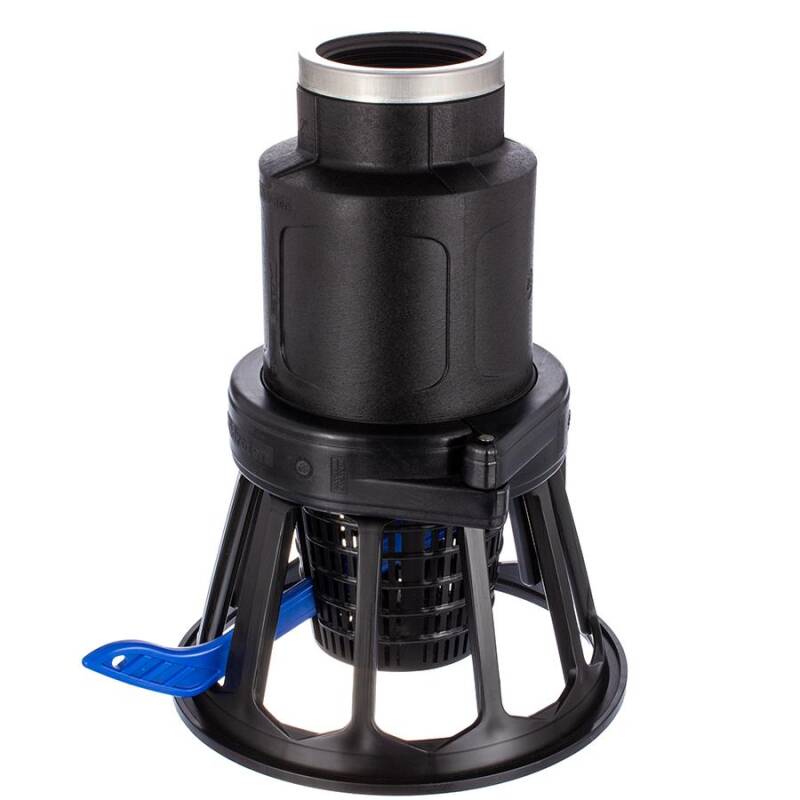

PP Rückschlagklappe Fußventil Saugkorb stehend Innengewinde verstärkt 3"
AK0313.000.090
3"
184
352
259
329
3" (87,88mm)
36
173,85 €*
pc.:

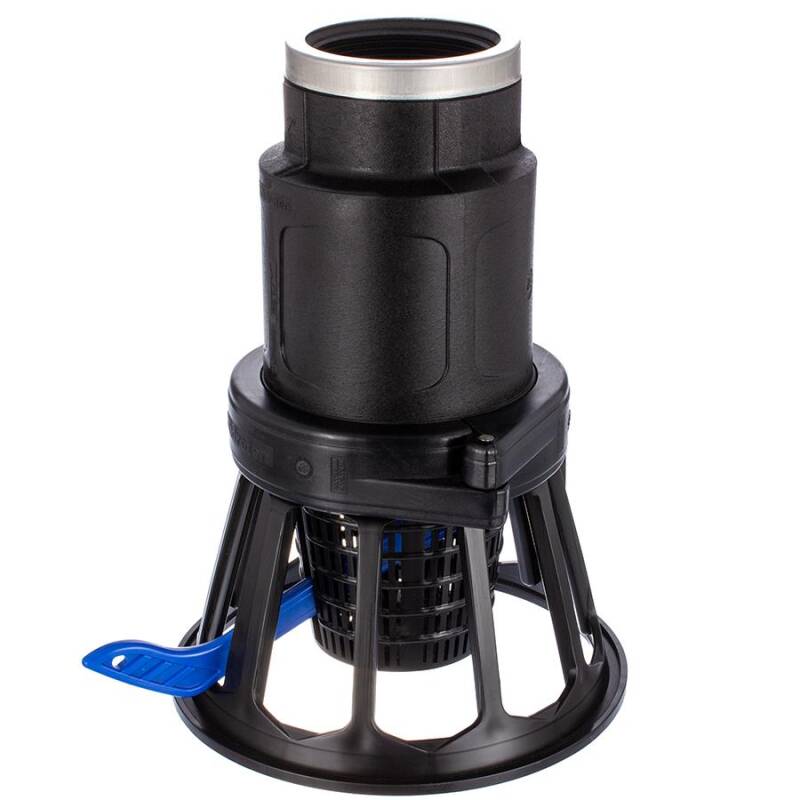

PP Rückschlagklappe Fußventil Saugkorb stehend Innengewinde verstärkt 4"
AK0313.000.110
4"
184
352
259
329
4" (113,03mm)
41
184,45 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP Foot valve, internal thread reinforced,

Foot valve, non-return valve, suction strainer, vertical, reinforced internal thread, spring-loaded non-return valve

Connection:
Reinforced female thread V2A ring
Thread:
BSP pipe thread G, not self-sealing, seal with Teflon tape or similar.
Temperature:
up to 45°C constant, 60°C for short periods
Working pressure (PN):
max. 16 bar at 20°C
Installation:
vertical
Material:
PP polypropylene
Color:
Black
AK0313 Querschnitt

Explanation

1. Reinforcement V2A

2. PPFV body

3. PVC-U Closure

4. Springflex double spring

5 EPDM O-ring

6. PP Handle for manual opening

7. PP filter against dirt

8. V2A bolt

9. EPDM seal

10. V2A locking bolt



Attention

Please note: for smooth operation, it is important to avoid dirt collecting in the area of the closing seal and spring. This should be checked and cleaned regularly
