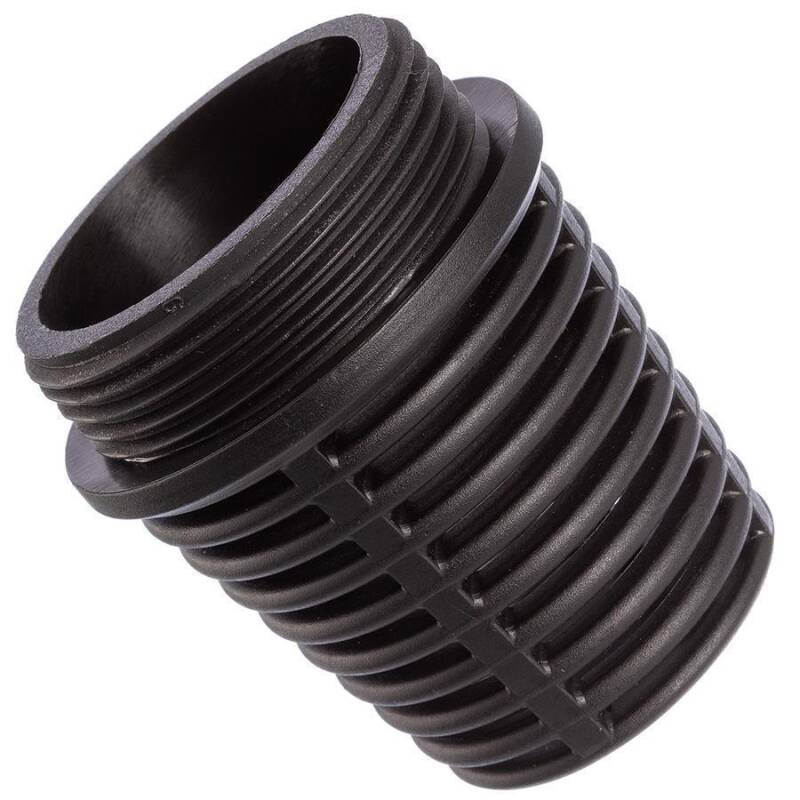

PP male threaded aspiration basket

from
0,69 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
G
L
L1
L2
Price
Quantity

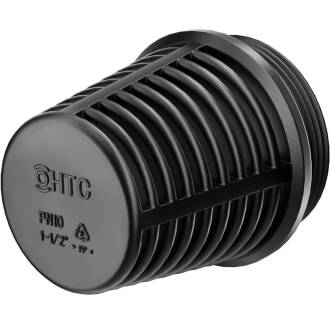

PP male threaded aspiration basket
PF0829.000.020
1/2"
24,5
1/2" (20,96mm)
36,5
8,5
1,0
0,69 €*
pc:
PP male threaded aspiration basket
PF0829.000.025
3/4"
32
3/4" (26,44mm)
40
8,5
1,3
0,83 €*
pc:
PP male threaded aspiration basket
PF0829.000.032
1"
38,5
1" (33,25mm)
46
9,5
2,2
1,05 €*
pc:
PP male threaded aspiration basket
PF0829.000.040
1 1/4"
47,5
1 1/4" (41,91mm)
57,5
11,5
2,2
1,46 €*
pc:
PP male threaded aspiration basket
PF0829.000.050
1 1/2"
54,5
1 1/2" (47,81mm)
62,5
13
2,2
1,73 €*
pc:
PP male threaded aspiration basket
PF0829.000.063
2"
67,5
2" (59,81mm)
69
13,5
2,2
2,06 €*
pc:
PP male threaded aspiration basket
PF0829.000.075
2 1/2"
2 1/2" (75,18mm)
12,96 €*
pc:
PP male threaded aspiration basket
PF0829.000.090
3"
3" (87,88mm)
20,16 €*
pc:
PP male threaded aspiration basket
PF0829.000.110
4"
4" (113,03mm)
36,00 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP Ansaugkorb Aussengewinde

Anschluss:
Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
0°C bis 80°C
Material:
PP Polypropylen faserverstärkt
Farbe:
Schwarz ähnl. RAL 9011
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig
DOWNLOADRoHS Bestätigung HTC

DOWNLOADPolypropylen PP Temperatur-/ Druckdiagramm
DOWNLOADdie Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOADchemische Beständigkeit von Kunststoffen
