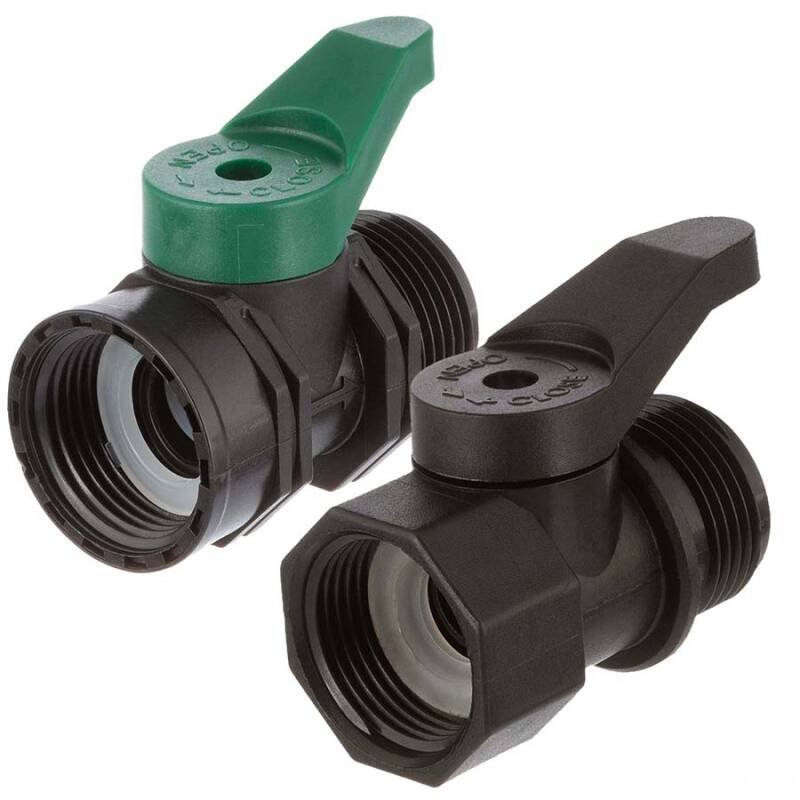

PP mini ball valve with female/male thread, PN 4

SKU: PA0108
Auswahl Steuerzone / Lieferland
from
1,15 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(16) { ["maximalmenge schlauch"]=> string(1) "0" ["tabellen_ansicht"]=> string(1) "1" ["dimension_0010_variante"]=> string(22) "Innen- x Aussengewinde" ["dimension_0288_g"]=> string(8) "" ["alt_list"]=> string(1) "1" ["dimension_0220_dn"]=> string(0) "" ["wichtiger hinweis"]=> string(50) "Die Einbaurichtung des Kugelhahns ist zu beachten!" ["wichtiger_hinweis"]=> string(119) "Einbauhinweis:

Die Fließrichtung vom Innengewinde zum Aussengewinde ist zu beachten!" ["hat_3d_bilder"]=> string(1) "1" ["dimension_0300_g1"]=> string(8) "" ["dimension_0400_l"]=> string(0) "" ["dimension_0420_l1"]=> string(0) "" ["dimension_0450_l2"]=> string(0) "" ["dimension_0340_h"]=> string(0) "" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
Einbauhinweis:

Die Fließrichtung vom Innengewinde zum Aussengewinde ist zu beachten!
  • Available immediately
   Variants

Product picture
Item no.
Variation
DN
G
Length
Price
Quantity

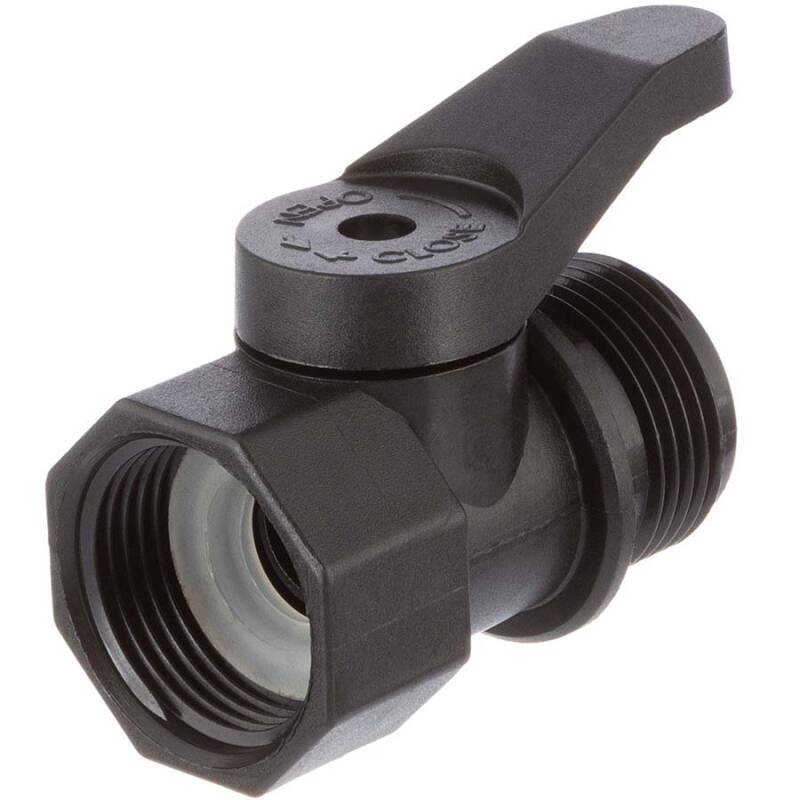

PP mini ball valve with female/male thread, PN 4, 3/4"
PA0108.025.025
Innen- x Aussengewinde 3/4"
11
3/4" (26,44mm)
63
1,15 €*
pc.:

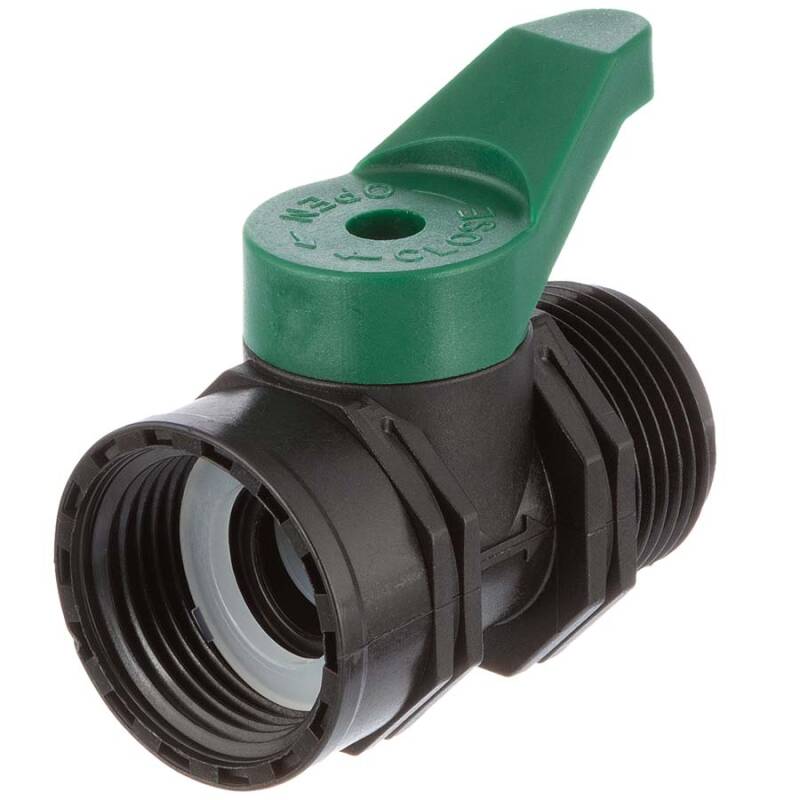

PP mini ball valve with female/male thread, PN 4, 1"
PA0108.032.032
Innen- x Aussengewinde 1"
15
1" (33,25mm)
67
2,37 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP mini ball valve female x male thread

  • Irritec mini ball valve female x male thread
  • Flow direction from female thread to male thread
  • max. PN 4 bar at 20°C Medium water
  • Female thread with flat seal
  • Color: black, handle black or green
  • All-purpose ball valve for irrigation or similar applications
DOWNLOAD the thread identification - or why 1" is not 25.4mm
