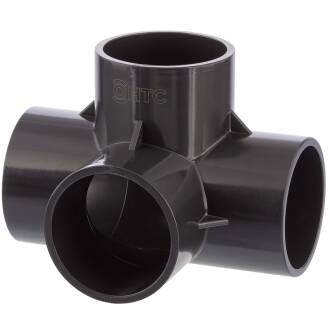

PVC-U Cross 90°, Quadruple Female Socket 25mm

SKU: AF0510.000.025
Auswahl Steuerzone / Lieferland
1,05 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Delivery time: 1 - 4 Workdays  (DE - int. shipments may differ)
array(12) { ["tabellen_ansicht"]=> string(1) "1" ["meta keywords"]=> string(20) "PVC-U_T-Stück_4fach" ["bild_abmessungen"]=> string(39) "/bilder/abmessungen/A-510_Zeichnung.jpg" ["maximalmenge schlauch"]=> string(1) "0" ["dimension_0340_h"]=> string(2) "55" ["dimension_0400_l"]=> string(2) "80" ["dimension_0140_d"]=> string(10) "25" ["dimension_0141_d1"]=> string(4) "30,5" ["dimension_0010_variante"]=> string(23) "25mm
Stück" ["dimension_0951_pn"]=> string(2) "10" ["dimension_0420_l1"]=> string(0) "" ["gpsr_manufacturer_name"]=> string(26) "TIQ China-Base Ningbo JEAN" }
View item details in PDF
How to measure a threaded fitting
pc
  • Available immediately
  • Delivery time: 1 - 4 Workdays  (DE - int. shipments may differ)
All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Main item including dimensions

   Description

PVC-U Cross 90°, Quadruple Female Socket

Connection:
Quadruple Female Socket
Temperature:
up to 45°C constant, temporarily up to 60°C
Material:
PVC-U
Color:
Grey
DOWNLOAD RoHS confirmation HTC
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD Sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
