All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

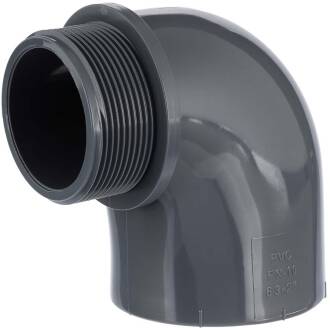

PVC-U Elbow 90°, Female Socket x Male Thread
Connection:
Female Socket x Male Thread
Thread:
BSP Pipe Thread ISO 228-1, not self-sealing, sealing with
Teflon tape or similar.
Temperature:
up to 45°C constant, temporarily up to 60°C
Operating pressure (PN):
max. 10 bar at 20°C, medium water
Material:
PVC-U
Color:
Grey
DOWNLOAD
RoHS confirmation HTC
DOWNLOAD
Bonding of PVC-U pipes and fittings
DOWNLOAD
The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD
Sealing and connecting plastic threads
DOWNLOAD
Chemical resistance of plastics
DOWNLOAD
External characteristics of injection-moulded fittings
