Description

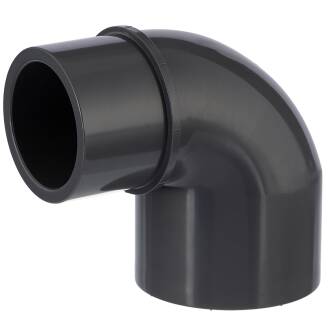

PVC-U Reducing Elbow 90°, Female Socket x Male/Female Socket
Connection:
Female Socket x Male/Female Socket
Temperature:
up to 45°C constant, temporarily up to 60°C
Operating pressure (PN):
max. 16 bar at 20°C
Material:
PVC-U
Color:
Grey
The reducing elbow from
shows its strengths and unique features in detail
Additional Features
- High-precision tooling quality
- Four usable dimensions for maximum flexibility
- Elbow side with usable male and female socket dimensions
- Reducing side also with usable male and female socket dimensions
- 45° marking for easy alignment
- Reducing side with socket stop
If the 90° reducing elbow is already part of our production range and therefore includes all features,
you can recognize it by the product image and the
logo.
