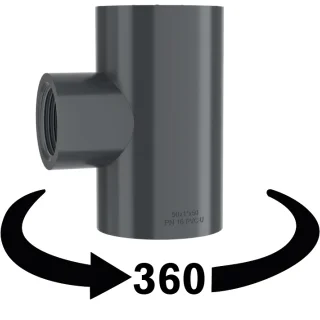

PVC-U Tee 90°, Female Socket x Reduced Female Thread

SKU: AF0507
Auswahl Steuerzone / Lieferland
from
1,38 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(15) { ["meta keywords"]=> string(35) "PVC_T-Stück_reduziert_Innengewinde" ["tabellen_ansicht"]=> string(1) "1" ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/AF0507_Zeichnung.jpg" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["dimension_0400_l"]=> string(0) "" ["dimension_0060_b"]=> string(0) "" ["dimension_0140_d"]=> string(8) "" ["dimension_0420_l1"]=> string(0) "" ["dimension_0141_d1"]=> string(0) "" ["dimension_0144_d2"]=> string(0) "" ["dimension_0010_variante"]=> string(0) "" ["dimension_0288_g"]=> string(8) "" ["hat_3d_bilder"]=> string(1) "1" ["dimension_0450_l2"]=> string(0) "" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
D
D1
D2
G
L
L1
L2
Price
Quantity
AF0507.020.012
20mm x 1/4"
20
29,5
27,5
1/4" (13,16mm)
51
16,5
12,5
1,38 €*
pc:
In stock: 1123
delivery status: 1 - 4 working days
AF0507.020.016
20mm x 3/8"
20
29
27
3/8" (16,66mm)
51
16
12,5
1,38 €*
pc:
In stock: 1125
delivery status: 1 - 4 working days
AF0507.025.016
25mm x 3/8"
33
25
32
3/8" (16,66mm)
66
14
1,65 €*
pc:
In stock: 116
delivery status: 1 - 4 working days
AF0507.032.012
32mm x 1/4"
46,5
32
43
27,5
1/4" (13,16mm)
76,5
22
14
2,11 €*
pc:
In stock: 1033
delivery status: 1 - 4 working days
AF0507.032.016
32mm x 3/8"
46,5
32
43
27,5
3/8" (16,66mm)
76,5
22
14
1,39 €*
pc:
In stock: 1115
delivery status: 1 - 4 working days
AF0507.032.020
32mm x 1/2"
46,5
32
40
27,5
1/2" (20,96mm)
79,5
22
17
2,11 €*
pc:
In stock: 856
delivery status: 1 - 4 working days
AF0507.032.025
32mm x 3/4"
46,5
32
43
34,5
3/4" (26,44mm)
84,5
22
17,5
2,11 €*
pc:
In stock: 988
delivery status: 1 - 4 working days
AF0507.040.020
40mm x 1/2"
40
1/2" (20,96mm)
2,73 €*
AF0507.040.025
40mm x 3/4"
37
40
34
3/4" (26,44mm)
95
16,5
2,73 €*
pc:
In stock: 14
delivery status: 1 - 4 working days
AF0507.040.032
40mm x 1"
54
40
54
44
1" (33,25mm)
98,5
26
21
2,59 €*
pc:
In stock: 538
delivery status: 1 - 4 working days
AF0507.050.012
50mm x 1/4"
55
50
60
27
1/4" (13,16mm)
88
31
13
3,21 €*
pc:
In stock: 468
delivery status: 1 - 4 working days
AF0507.050.016
50mm x 3/8"
55
50
60
27
3/8" (16,66mm)
88
31
13
3,21 €*
pc:
In stock: 289
delivery status: 1 - 4 working days
AF0507.050.020
50mm x 1/2"
55
50
60,5
33,5
1/2" (20,96mm)
94,5
32
17,5
3,21 €*
pc:
In stock: 889
delivery status: 1 - 4 working days
AF0507.050.025
50mm x 3/4"
56,5
50
60
34,5
3/4" (26,44mm)
94
31,5
17
3,21 €*
pc:
In stock: 966
delivery status: 1 - 4 working days
AF0507.050.032
50mm x 1"
55
50
60
44
1" (33,25mm)
104
31,5
22
3,33 €*
pc:
In stock: 338
delivery status: 1 - 4 working days
AF0507.050.040
50mm x 1 1/4"
62
50
63
1 1/4" (41,91mm)
118
32
26
3,78 €*
pc:
In stock: 14
delivery status: 1 - 4 working days
AF0507.063.032
63mm x 1"
60,5
63
73
44,5
1" (33,25mm)
113,5
37,5
21
5,97 €*
pc:
In stock: 210
delivery status: 1 - 4 working days
AF0507.063.040
63mm x 1 1/4"
73
63
75
1 1/4" (41,91mm)
144
26
5,52 €*
pc:
In stock: 4
delivery status: 1 - 4 working days
AF0507.063.050
63mm x 1 1/2"
73
63
75
1 1/2" (57,81mm)
144
31
5,52 €*
pc:
In stock: 7
delivery status: 1 - 4 working days

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Tee 90°, Female Socket x Reduced Female Thread

Connection:
Two Female Sockets x Reduced Female Thread
Thread Connection:
BSP pipe thread G, not self-sealing, sealing with Teflon tape or similar
Temperature:
up to 45°C constant, temporarily up to 60°C
Operating pressure (PN):
max. 10 bar at 20°C
Material:
PVC-U
Color:
Grey
DOWNLOAD RoHS declaration of conformity - HTC
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD Sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
