Description

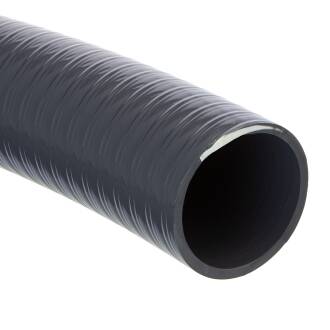

Flexible hose Adhesive hose Poolflex Spaflex
The flexible hose adhesive hose is also known as a flexible pipe. This term is somewhat misleading, as it is of course ideal for bridging a longer distance in your pool project quickly and in one piece with bends - but it does not have the performance data of a fixed pipe.
Important: Unlike most hoses, the outer diameter of the flexible hose is decisive, as it can only be bonded using PVC-U adhesive fittings or connected with PP compression fittings! A connection using hose nozzles is NOT possible!
Shipping information Germany Hose cut to size and rolls XXL
:
Flexible hose 25mm, 50m roll, per roll shipping costs 9,90 EUR gross
Flexible hose 32mm, 25m roll, per roll shipping costs 9,90 EUR gross
Flexible hose 32mm, 50m roll, per roll Shipping costs 12,90 EUR gross
Flexible hose 40mm, 25m roll, per roll Shipping costs 9,90 EUR gross
Flexible hose 40mm, 50m roll, per roll Shipping costs 15,90 EUR gross
Flexible hose 50mm, per section 1 - 5m Shipping costs 7,90 EUR gross
Flexible hose 50mm, per section 6 - 25m Shipping costs 12,90 EUR gross
Flexible hose 50mm, 25m roll, per roll shipping costs 12,90 EUR gross
Flexible hose 63mm, per section 1 - 5m Shipping costs 9,90 EUR gross
Flexible hose 63mm, per section 6 - 20m Shipping costs 12,90 EUR gross
Flexible hose 63mm, 25m roll, per roll Shipping costs 15,90 EUR gross
Flexible hose 75mm, per section 1 - 13m Shipping costs 9,90 EUR gross
Flexible hose 90mm, per section 1 - 9m Shipping costs 12,90 EUR gross
Cut-off quantities under roll length are delivered as one length.
Imprint:
YES
Resistance:
Soft PVC
Color:
Gray or black opaque
Foodstuffs:
NO
REACH:
1907/2006/EC
RoHS:
2015/863
Material:
Soft PVC
Spiral:
Hard PVC
Temperature:
-10°C to +60°C
when bonding with PVC-U fittings or clamping with PP clamp fittings, operation above +40° is not recommended
When using BD Fast couplings, higher operating temperatures are possible for short periods, as the internal sleeve supports the hose
when bonding with PVC-U fittings or clamping with PP clamp fittings, operation above +40° is not recommended
When using BD Fast couplings, higher operating temperatures are possible for short periods, as the internal sleeve supports the hose
Tolerance:
DIN 16940
Pressure:
not suitable for closed systems or applications in which there is continuous pressure during use - cross-linked hoses must be used here
PVC flexible hose Adhesive hose
The incorporation of a plastic spiral makes it possible to use the hose as a pressure and suction hose. For underground installation, installation in a protective pipe is recommended. The hose is not suitable for continuous pressure, e.g. your domestic water supply, as the hose structure is comparable to a pressure and suction hose and the necessary cross-linking for length stabilization is missing.
The molded-in rigid PVC spiral cannot be pressed on with hose clamps.
- Smooth inner and outer jacket
- Suitable for temperatures from -10°C to max. +45°C with flowing medium
- 3 - 8 bar max. pump pressure - *not for use in closed systems under continuous pressure - cross-linked hoses must be used here.
- Can be bonded with commercially available, high-quality PVC-U adhesive - Tangit PLUS is not suitable!
- Ideal for flexible installation in the ground (in a sand bed)
- Ozone, UV and chlorine resistant, suitable for saltwater pools
- Connection: can be bonded with PVC-U fittings or clamped with PP clamp couplings for flexible hose
The bending radius
The bending radius is a recommendation of how tightly you can lay the hose in a half-bend without the hose kinking or being damaged. This maximum guide value is significantly influenced by the temperature of the environment and the hose itself during installation!
PVC adhesive hose in section
- Ideal for the water supply and recirculation of swimming pools
- Solid gray, soft PVC outer wall
- Hard PVC spiral reinforcement
- Solid gray, soft PVC inner layer
