Rectangular valve box

from
24,75 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
B1
B2
H
L
L1
L2
Price
Quantity

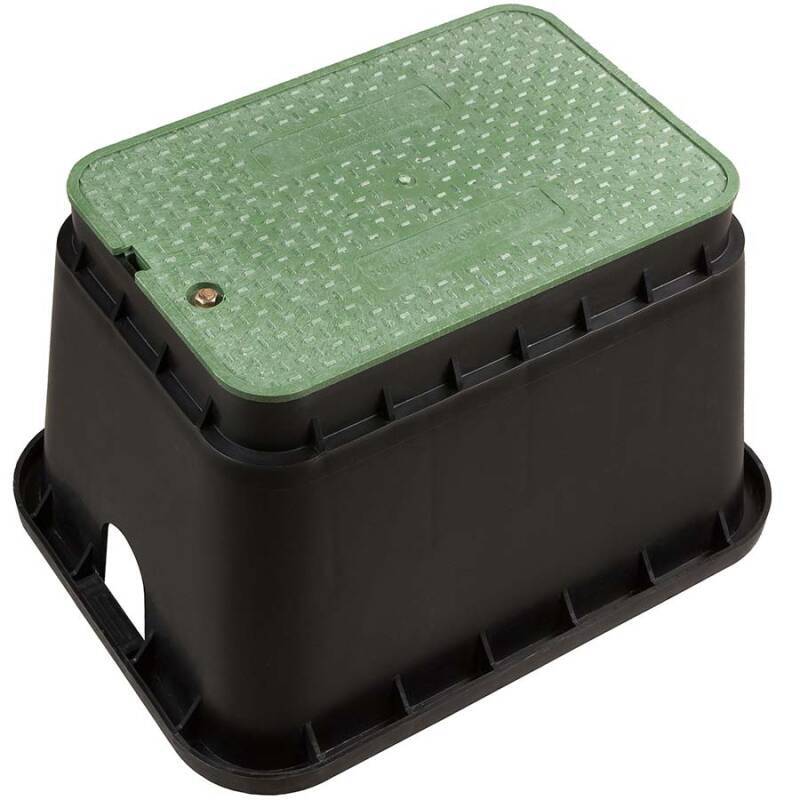

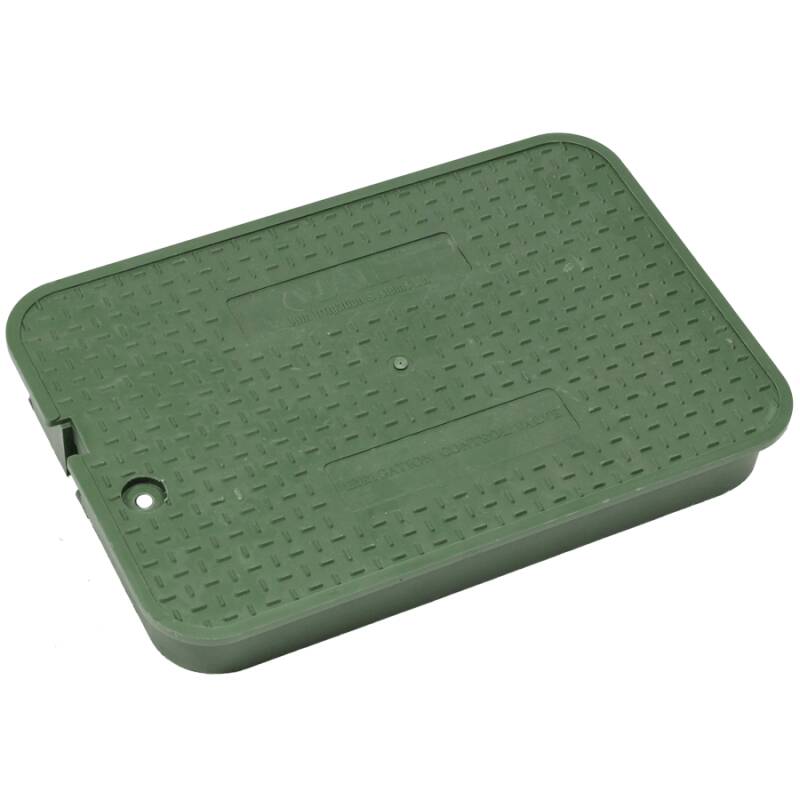

Rectangular valve box
BW3502.IRR.STA
Standard Irritec
375
335
280
310
510
470
410
hat Überlänge
31,23 €*
pc.:
Rectangular valve box Erhöhung schmal Standard Irritec
BW3502.IRR.ER1
Erhöhung schmal Irritec Standard
310
230
275
90
445
365
405
24,75 €*
pc.:
Rectangular valve box Erhöhung breit Standard Irritec
BW3502.IRR.ER2
Erhöhung breit Irritec Standard
310
250
270
167
445
385
405
27,00 €*
pc.:

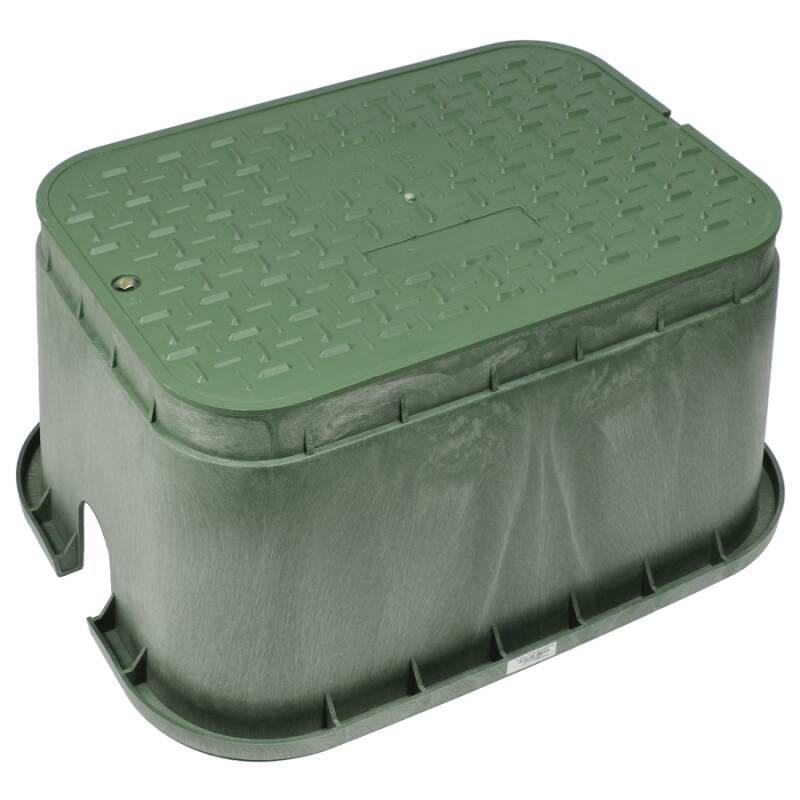

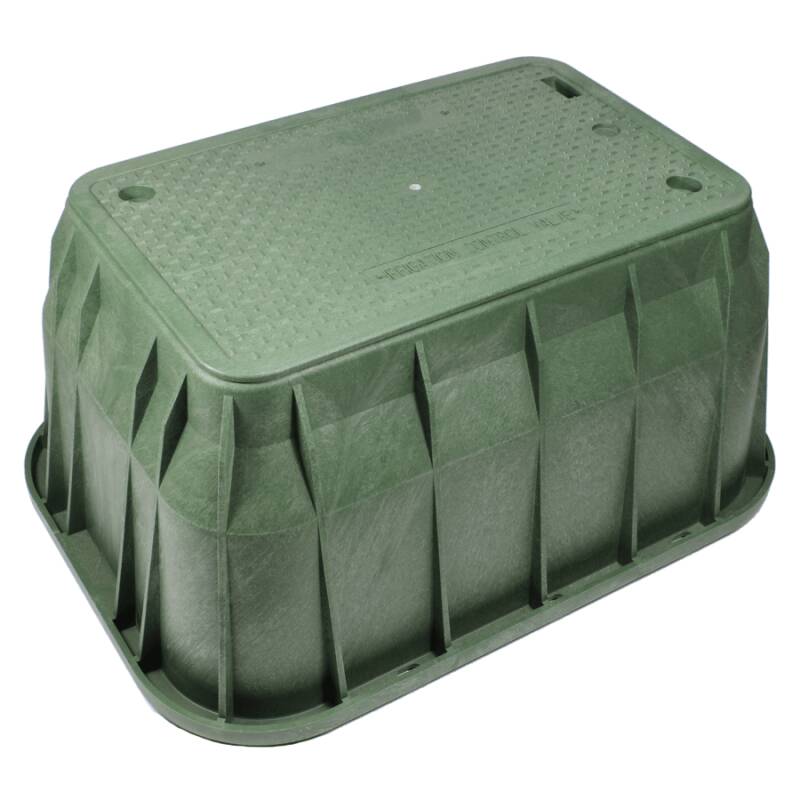

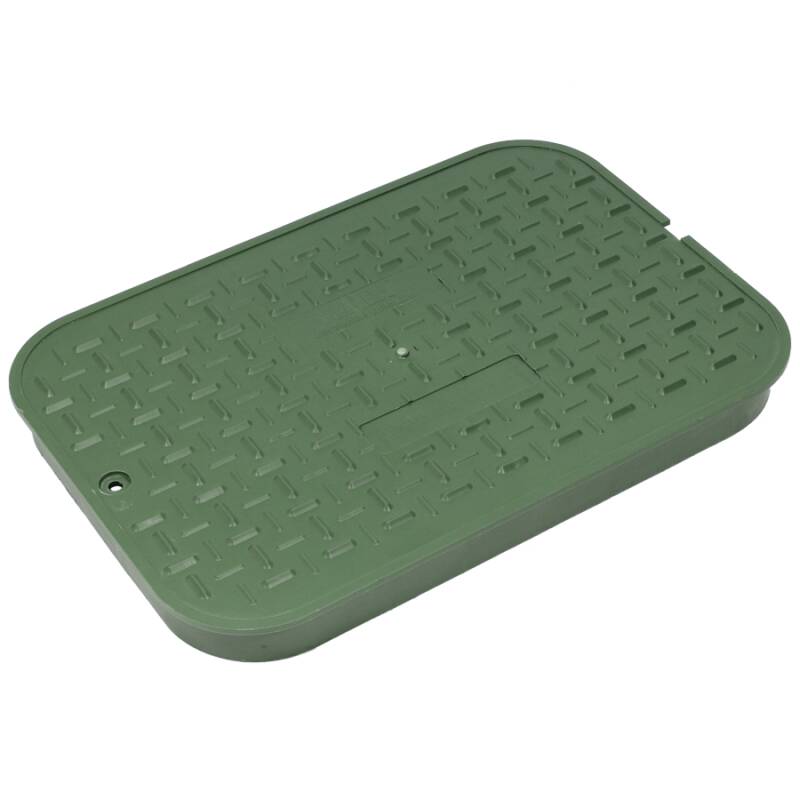

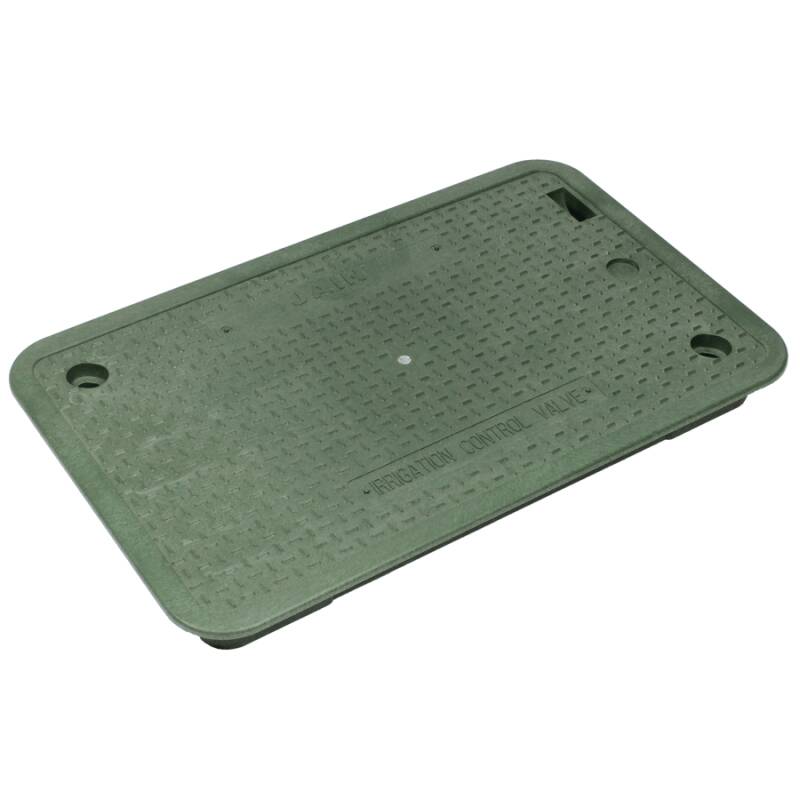

Rectangular valve box Jumbo Irritec
BW3502.IRR.JUM
Jumbo Irritec
500
460
370
310
650
595
520
hat Überlänge
48,83 €*
pc.:
Rectangular valve box Erhöhung Jumbo Irritec
BW3502.IRR.ER3
Erhöhung Jumbo Irritec
405
370
365
165
550
525
515
41,17 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Valve box IRRITEC rectangular



Good planning is half the battle

Prepare a suitably large hole for your valve box during construction. Fill at least 1/3 of this hole with gravel or similar and place your valve box in this gravel bed. The valve box for holding your distribution unit is open at the bottom - for good reason. For example, water that enters when it rains can easily drain away or seep into the gravel bed. It is also advantageous if, for example, the valve shaft is located in a general gravel area.

PA0219 Kiesbett



Quality and features:

  • Highly impact-resistant plastic in a sturdy design
  • Valve box housing, open at the bottom: black and green lid
  • Polypropylene resistant to UV radiation; suitable for high temperatures
  • Resistant to chemicals and corrosion-free
  • waterproof and functional in all weather conditions.
  • optimum fit: no dirt or grass between housing and lid
  • easy access to fittings thanks to large interior
  • secure lid locking with screw (a socket wrench is required to open and close)
  • beveled lid edges protect against possible damage from lawn mowers



Putting the valve box cover on correctly - simply explained


Ventilschacht Aufbau Anleitung Schritt 1

Step 1

Place the cover at an angle so that the side with the internal barb sits in the valve shaft and the side with the screw lock points upwards.


Ventilschacht Aufbau Anleitung Schritt 2

Step 2

The green barb lock of the cover will already engage in the cover housing and cannot be damaged when the cover is fully engaged.


Ventilschacht Aufbau Anleitung Schritt 3

Step 3

Press the side with the screw lock into the recess in the valve box body and pull the screw upwards if necessary.


Ventilschacht Aufbau Anleitung Schritt 4

Step 4

Done - Secure your fittings in the valve shaft by screwing in the locking screw to prevent vandalism. You will need a socket wrench for this.


Ventilschacht Aufbau Anleitung Schritt 5

Not like this!

If the cover is pressed in on both sides, there is a risk of the retaining barb on the underside of the cover breaking off.





Technical note: The valve box extension is attached to the respective valve box and is therefore fixed at the side and cannot slip. The cover of the valve box is now inserted into the elevation and can also be secured with the screw supplied with the valve chamber.



Extension for standard Irritec valve box

Two elevations are available for the Irritec standard valve box, which can theoretically be elevated endlessly, although the earth pressure must be taken into account.

PA0219 Irritec Erhöhung Standard



Elevation for Jumbo Irritec valve box

The elevation for the Jumbo valve box from Irritec raises the box by 168 mm. Theoretically, the valve box can be raised endlessly, whereby the earth pressure must be taken into account.

PA0219 Irritec Erhöhung Jumbo
