Steel filter basket with male thread

SKU: MA0012
Auswahl Steuerzone / Lieferland
from
0,67 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately

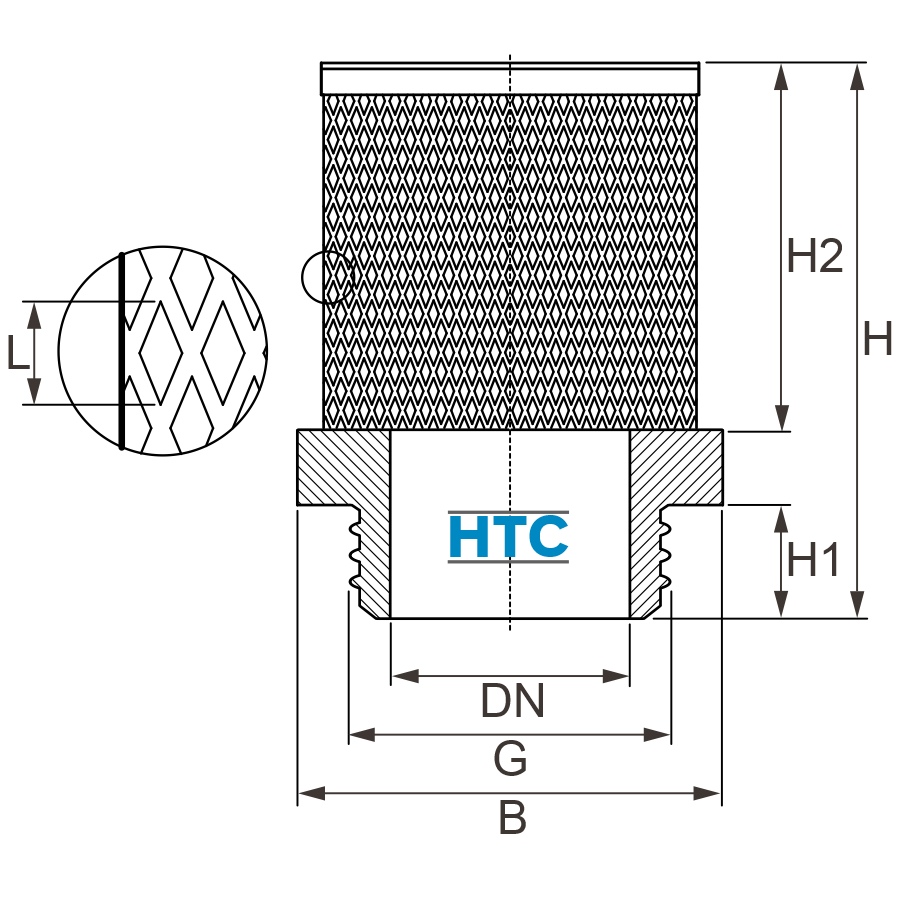

   Variants

Item no.
Variation
B
DN
G
H
H1
H2
L
Price
Quantity
MA0012.000.020
1/2"
28
15
1/2" (20,95mm)
39
8
25
2
0,67 €*
pc.:
MA0012.000.025
3/4"
35
19
3/4" (26,44mm)
39
8
25
2
0,87 €*
pc.:
MA0012.000.032
1"
40
24
1" (33,25mm)
51,5
10
35
2
1,29 €*
pc.:
MA0012.000.040
1 1/4"
49
35
1 1/4" (41,91mm)
57
10
41
2
1,42 €*
MA0012.000.050
1 1/2"
58
40
1 1/2" (47,81mm)
64
10
47
2
2,24 €*
pc.:
MA0012.000.063
2"
70
50
2" (59,61mm)
77
11
58
2
2,59 €*
pc.:
MA0012.000.075
2 1/2"
82
63
2 1/2" (75,18mm)
93
14
69
2
4,58 €*
pc.:
MA0012.000.090
3"
99
77
3" (87,88mm)
101
12
82
2
5,38 €*
pc.:
MA0012.000.110
4"
127
98
4" (113,03mm)
112
14
88
2
9,50 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

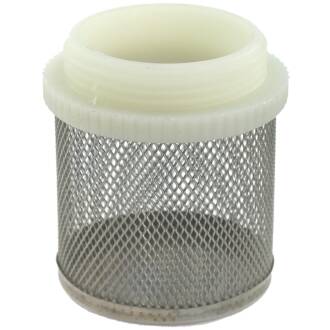

Filter Basket Stainless Steel, Male Thread

Connection:
Male thread G (BSP)
Application:
suitable for cold and hot water and air
Temperature:
-20°C to 100°C
Material:
Filter: stainless steel, thread attachment: nylon
DOWNLOAD The thread designation - or why 1" is not exactly 25.4mm
