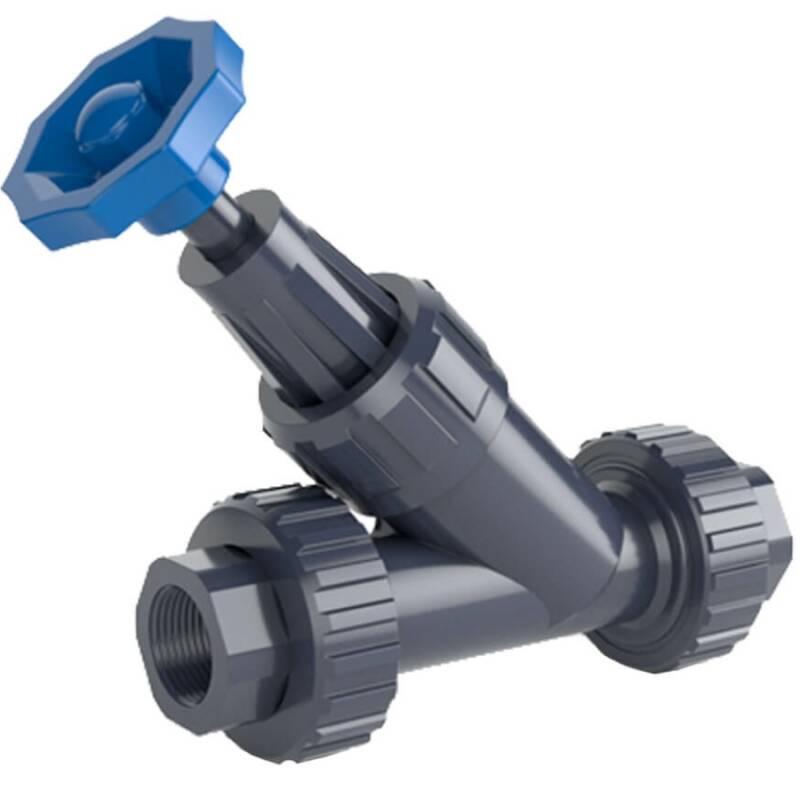

U-PVC angle-seat valve with female thread

from
36,94 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
A
B
C
D
DN
G
Weight
Price
Quantity
AK0051.0IG.020
1/2"
146
140
52
16
15
1/2" (20,96mm)
257
36,94 €*
pc:
AK0051.0IG.025
3/4"
173
164
59
17
20
3/4" (26,44mm)
388
50,37 €*
pc:
AK0051.0IG.032
1"
195
183
69
21
25
1" (33,25mm)
573
60,65 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Schrägsitz Absperrventil, 2fach Innengewinde

Anschluss:
2fach Innengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Zertifikat:
WRAS Zertifikat (Trinkwasser)
Farbe:
Grau, Sterngriff Blau

Wichtig: Das Gewinde der Überwurfmutter bei jedem Kugelhahn oder anderer Armatur ist nicht mit Gewindefittings kombinierbar und ausschließlich für die Verschraubung auf den Kugelhahn vorgesehen. Dieses Gewinde ist nicht genormt und weicht von Hersteller zu Hersteller ab.


Optische Positionsanzeige


Die Welle zum Sterngriff ist mit einer optischen Positionsanzeige ausgestattet. Die Skala ermöglicht es die Einstellung zu definieren und bei Veränderung der Durchflussmengeneinstellung die genaue vorherige Position leicht wieder herzustellen.

Schrägsitz Absperrventil Detail Einstellmöglichkeit

Ersatzteile Schrägsitz Absperrventil Hidroten Serie AK0050

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
