U-PVC butterfly valve

from
32,42 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
D
D2
DN
H
H1
H2
P
Rohr | Flansch
Price
Quantity

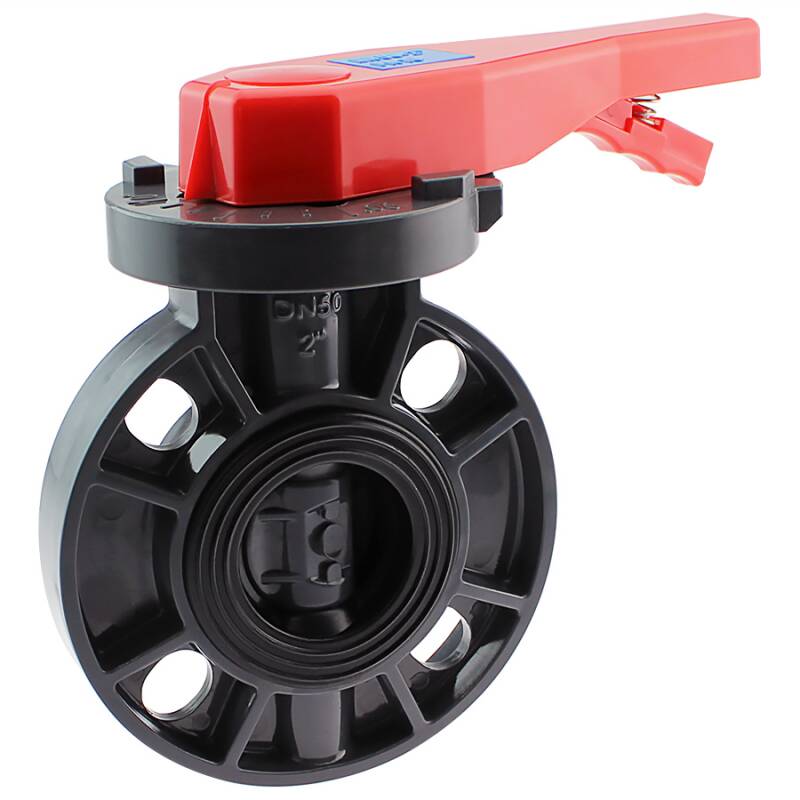

U-PVC butterfly valve 63mm
AK0001.000.063
63mm
30
42
50
125
50
223
80
107
190
63
32,42 €*
pc.:
U-PVC butterfly valve 75mm
AK0001.000.075
75mm
38
46
65
145
65
245
90
118
190
75
37,65 €*
pc.:
U-PVC butterfly valve 90mm
AK0001.000.090
90mm
43
51
80
160
80
260
97
117
245
90
44,39 €*

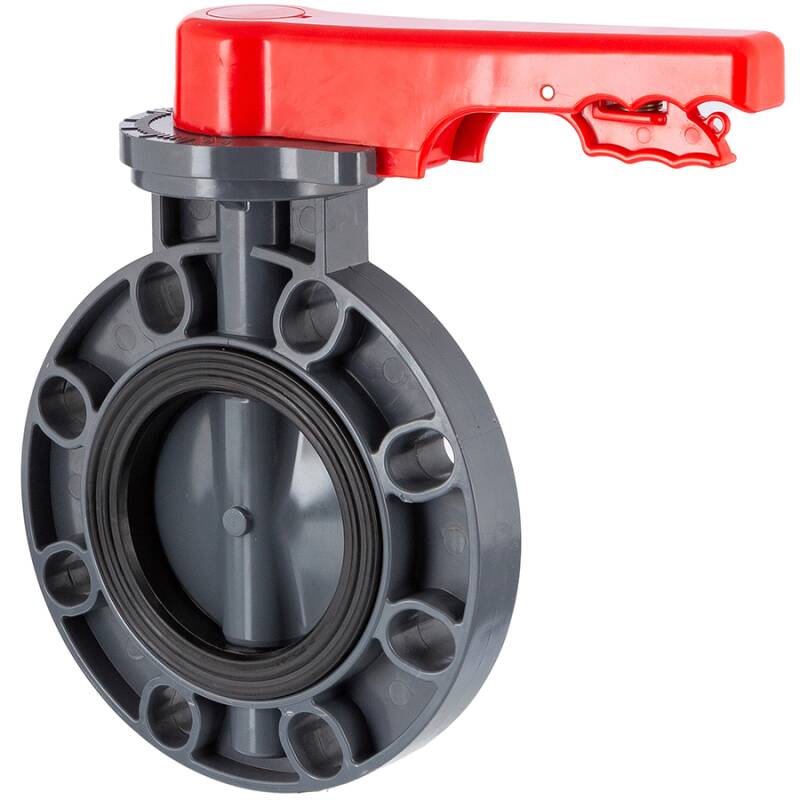

U-PVC butterfly valve 110mm
AK0001.000.110
110mm
48
58
100
180
100
300
115
150
245
110
59,85 €*
pc.:
U-PVC butterfly valve
AK0001.125.140
125/140mm
36
64
123
210
125
340
125
170
225
125/140
78,30 €*
U-PVC butterfly valve 160mm
AK0001.000.160
160mm
61
68
150
240
150
377
144
190
317
160
95,72 €*
U-PVC butterfly valve 200mm
AK0001.000.200
200mm
68
90
200
295
200
545
175
225
320
200
156,19 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Absperrklappe

Anschluss:
Montage zwischen Flansche
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser, ab 160mm max. 6 bar bei 20°C Medium Wasser
Dichtung:
EPDM
Material:
PVC-U
Farbe:
Grau, Griff Rot
Einsatzbereich:

  • PVC-U Klappenteller
  • Achse Stahl verzinkt
  • PP Handhebel mit Arretiermechanismus
  • Vollmanteldichtung
  • minimaler Druckverlust bei geringen Einbaumaßen
  • die Variantenangabe (z.B. 63mm) bezieht sich auf die benötigte Flanschdimension

Arretierbarer Handhebel


Steuerung des Durchflusses über einrastbaren Handhebel. Eine optimale Stellung kann nach Veränderung einfach wieder hergestellt werden. Auch ein hoher Durchflussdruck kann die gewählte Einstellung nicht verändern.

AR0001 Handhebel Arretierung


Vollmanteldichtung


Die hochwertige Vollmanteldichtung umschließt den kompletten PVC-U Körper im Klappenbereich. Kein Verrutschen der Dichtung während der Montage.

AR0001 Vollmanteldichtung

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
