Variants

Item no.
Variation
D
L
R
Weight
Price
Quantity
AFS416.P10.020
20mm
20
mind. 16
mind. 40
19
0,36 €*
pc.:
AFS416.P10.025
25mm
25
mind. 18,5
mind. 50
25
0,48 €*
pc.:
AF0416.P10.032
32mm
32
mind. 22
mind. 64
0,83 €*
pc.:
AF0416.P10.040
40mm
40
mind. 26
mind. 80
74
1,50 €*
pc.:
AF0416.P10.050
50mm
50
mind. 31
mind. 100
115
2,57 €*
pc.:
AFS416.P10.063
63mm
63
mind. 37,5
mind. 126
5,21 €*
pc.:
AF0416.P10.075
75mm
75
mind. 43,5
mind. 150
6,78 €*
pc.:
AFS416.P10.090
90mm
90
mind. 51
mind. 180
11,88 €*
pc.:
AFS416.P10.110
110mm
110
mind. 61
mind. 220
15,43 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

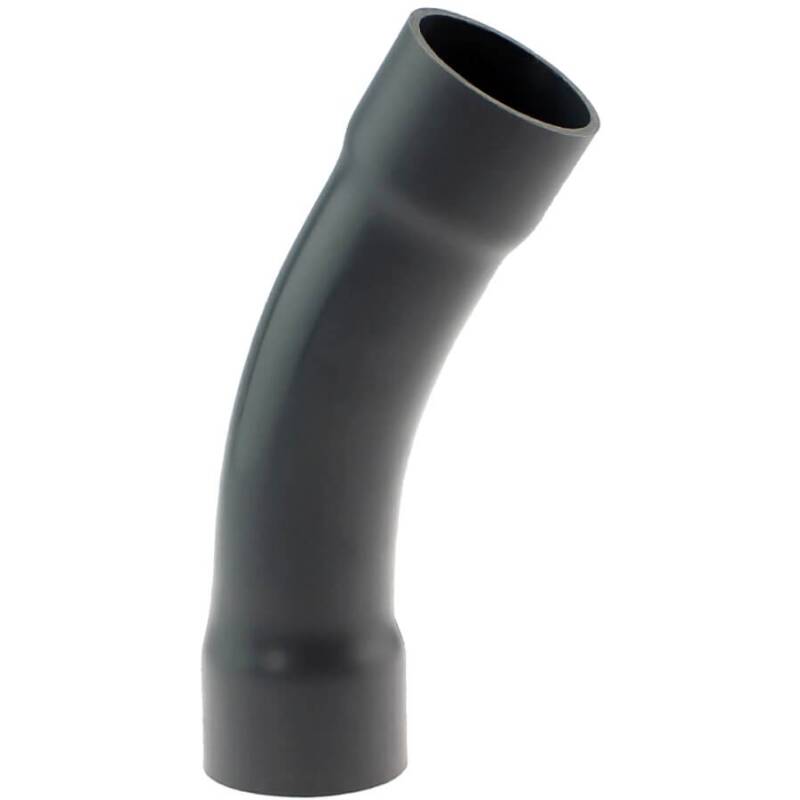

PVC-U Bogen 30° aus Rohr, 2fach Klebemuffe 10 bar

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:

Wichtig: Im Gegensatz zu Spritzgussfittings werden diese Fittings aus Rohr thermisch verformt. Die Maße sowie die Ausführung können deshalb z.T. leicht abweichen.


DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
