Variants

Item no.
Variation
A
B
C
D
DN
Weight
Price
Quantity
AF0408.000.016
3/8"
3/8" (16,66mm)
25
14
7
10
18
1,31 €*
pc:
AF0408.000.020
1/2"
1/2" (20,96mm)
25
16
5
15
11
1,52 €*
pc:
AF0408.000.025
3/4"
3/4" (26,44mm)
32,5
19
6
20
23
1,70 €*
pc:
AF0408.000.032
1"
1" (33,25mm)
40
22
7,5
25
39
2,02 €*
pc:
AF0408.000.040
1 1/4"
1 1/4" (41,91mm)
50
26
9,5
32
72
2,65 €*
pc:
AF0408.000.050
1 1/2"
1 1/2" (47,80mm)
63
31,5
11,5
40
168
3,63 €*
pc:
AF0408.000.063
2"
2" (59,61mm)
75
38
14
50
251
5,24 €*
pc:
AF0408.000.075
2 1/2"
2 1/2" (75,18mm)
90
44
16,5
65
340
8,51 €*
pc:
AF0408.000.090
3"
3" (87,88mm)
110
51
19,5
80
702
13,13 €*
pc:
AF0408.000.110
4"
4" (113,03mm)
131
61
23
100
850
24,57 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

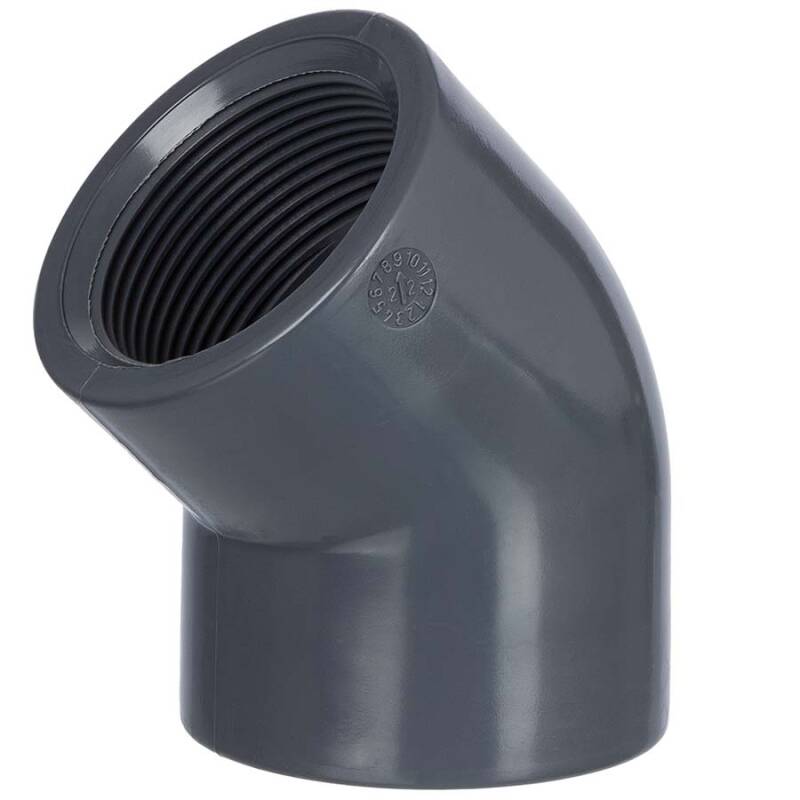

PVC-U Winkel 45°, 2fach Innengewinde

Anschluss:
2fach Innengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
