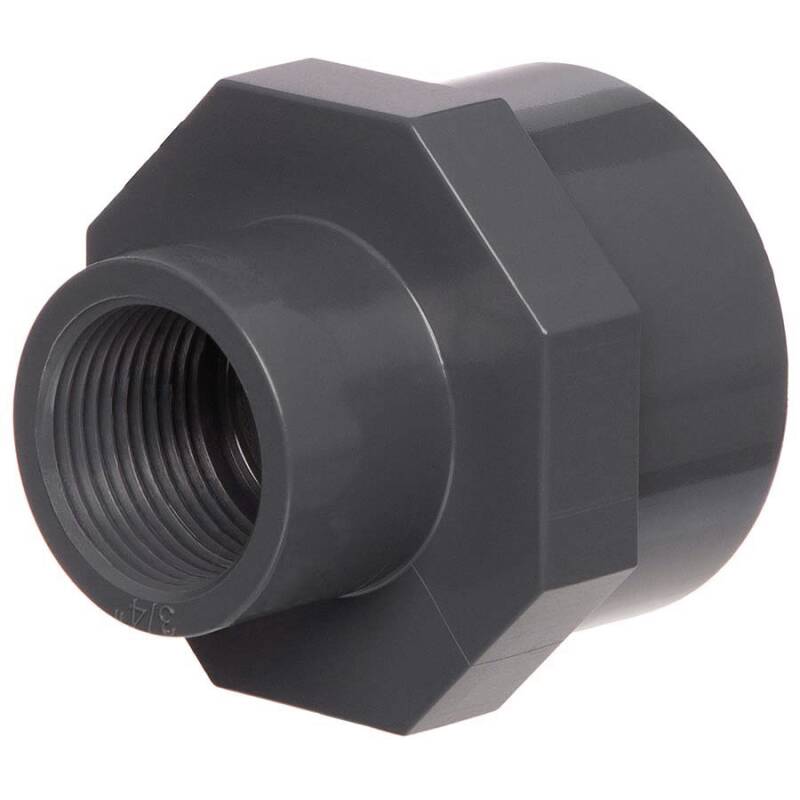

U-PVC female threaded reducing socket

SKU: AF0204
Auswahl Steuerzone / Lieferland
from
1,13 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
E1
E2
G1
G2
L
L1
L2
SW
Price
Quantity
AF0204.016.012
3/8" x 1/4"
15
11
3/8" (16,66mm)
1/4" (13,16mm)
29
12
12
27
2,21 €*
pc:
AF0204.020.016
1/2" x 3/8"
28
23
1/2" (20,96mm)
3/8" (16,66mm)
33
15
12
30
1,13 €*
pc:
AF0204.025.016
3/4" x 3/8"
33
27
3/4" (26,44mm)
3/8" (16,66mm)
42
16
15
36
1,29 €*
pc:
AF0204.025.020
3/4" x 1/2"
34
28
3/4" (26,44mm)
1/2" (20,96mm)
38
19
16
35,5
1,29 €*
pc:
AF0204.032.016
1" x 3/8"
41
27
1" (33,25mm)
3/8" (16,66mm)
46
20
15
46
1,46 €*
pc:
AF0204.032.020
1" x 1/2"
41
27
1" (33,25mm)
1/2" (20,96mm)
47,5
20
15
46
1,46 €*
pc:
AF0204.032.025
1" x 3/4"
42
34
1" (33,25mm)
3/4" (26,44mm)
43
19,1
16,3
46
1,46 €*
pc:
AF0204.040.020
1 1/4" x 1/2"
50
27
1 1/4" (41,91mm)
1/2" (20,96mm)
54
24
18
55
1,75 €*
pc:
AF0204.040.025
1 1/4" x 3/4"
50
33
1 1/4" (41,91mm)
3/4" (26,44mm)
55
24
18
55
1,75 €*
pc:
AF0204.040.032
1 1/4" x 1"
51
42
1 1/4" (41,91mm)
1" (33,25mm)
49,5
24
22
55
1,75 €*
pc:
AF0204.050.025
1 1/2" x 3/4"
63
33
1 1/2" (47,80mm)
3/4" (26,44mm)
64
32
27
65
2,40 €*
pc:
AF0204.050.032
1 1/2" x 1"
63
41
1 1/2" (47,80mm)
1" (33,25mm)
66
29
28
65
2,40 €*
pc:
AF0204.050.040
1 1/2" x 1 1/4"
58
51
1 1/2" (47,80mm)
1 1/4" (41,91mm)
51
24
23
65
2,40 €*
pc:
AF0204.063.032
2" x 1"
75
41
2" (59,61mm)
1" (33,25mm)
75
34
20
79
3,67 €*
pc:
AF0204.063.040
2" x 1 1/4"
75
50
2" (59,61mm)
1 1/4" (41,91mm)
77
33
23
79
3,67 €*
pc:
AF0204.063.050
2" x 1 1/2"
72
58
2" (59,61mm)
1 1/2" (47,80mm)
55
28
23
74
3,71 €*
pc:
AF0204.075.063
2 1/2" x 2"
89
72
2 1/2" (75,18mm)
2" (59,61mm)
66,5
33
28
89
5,97 €*
pc:
AF0204.090.075
3" x 2 1/2"
103
89
3" (87,88mm)
2 1/2" (75,18mm)
75
38
34
105
7,18 €*
pc:
AF0204.110.090
4" x 3"
130
103
4" (113,03mm)
3" (87,88mm)
85
40
34
130
9,84 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Reduziermuffe, 2fach Innengewinde

Anschluss:
2fach Innengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau

Sicherung Gewindeverbindung

nachträgliche Sicherung einer Gewindeverbindung


Sichern Sie nachträglich ihre Gewindeverbindung durch eine Schlauchschelle um eine Beschädigung oder Aufplatzen der Gewindemuffe bei seitl. Zug oder Druck zu verhindern.

DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
