PVC-U Reinforced Socket Nipple, Male x Female Thread

SKU: AF0259
Auswahl Steuerzone / Lieferland
from
3,47 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
DN
G
G1
L
L1
L2
S
Price
Quantity
AF0259.020.020
1/2" x 1/2"
29,5
14
1/2" (20,96mm)
1/2" (20,96mm)
40
13
16
28,5
3,47 €*
pc:
AF0259.025.025
3/4" x 3/4"
34
14
3/4" (26,44mm)
3/4" (26,44mm)
45
13,5
15
34
3,51 €*
pc:
AF0259.032.032
1" x 1"
41,5
24
1" (33,25mm)
1" (33,25mm)
51,5
17
21
42
3,93 €*
pc:
AF0259.040.040
1 1/4" x 1 1/4"
52
26
1 1/4" (41,91mm)
1 1/4" (41,91mm)
54,5
17,5
22,5
53
4,05 €*
pc:
AF0259.050.050
1 1/2" x 1 1/2"
59
37
1 1/2" (47,81mm)
1 1/2" (47,81mm)
54
19
22
59,5
5,21 €*
pc:
AF0259.063.063
2" x 2"
74
42
2" (59,61mm)
2" (59,61mm)
63
22
26
73
7,38 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

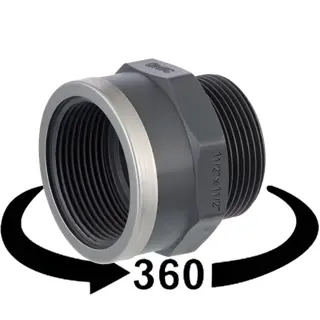

PVC-U Reinforced Socket Nipple, Male x Female Thread

Connection:
Male Thread x Female Thread (reinforced)
Material:
PVC-U (Unplasticized Polyvinyl Chloride)
Reinforcement ring:
Stainless steel V2A (AISI 304)
Thread:
BSP thread type Rp, not self-sealing, seal with PTFE tape or similar.
Temperature:
up to 45 °C constant, temporarily up to 60 °C
Operating pressure (PN):
max. 16 bar at 20 °C (medium: water)
Color:
Grey
Reinforced female thread detail

Reinforced Female Thread – for higher pressure applications


The stainless steel reinforcement ring compensates for the pressure acting on the thread and prevents damage or cracking of the socket. The reinforced socket nipple can be used for higher pressure ratings up to 16 bar.

Please also refer to our download:

Sealing and connecting plastic threads

DOWNLOAD RoHS confirmation HTC
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD Sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
