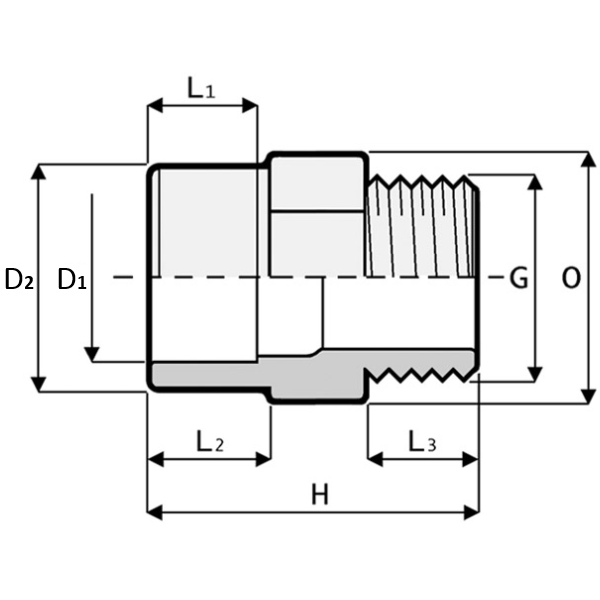

Variants

Product picture
Item no.
Variation
D1
D2
G
H
L1
L2
L3
O
Price
Quantity

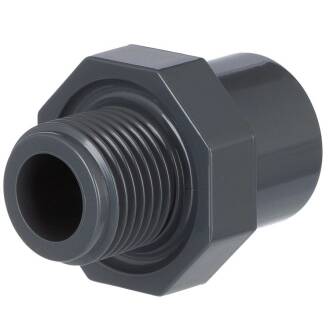

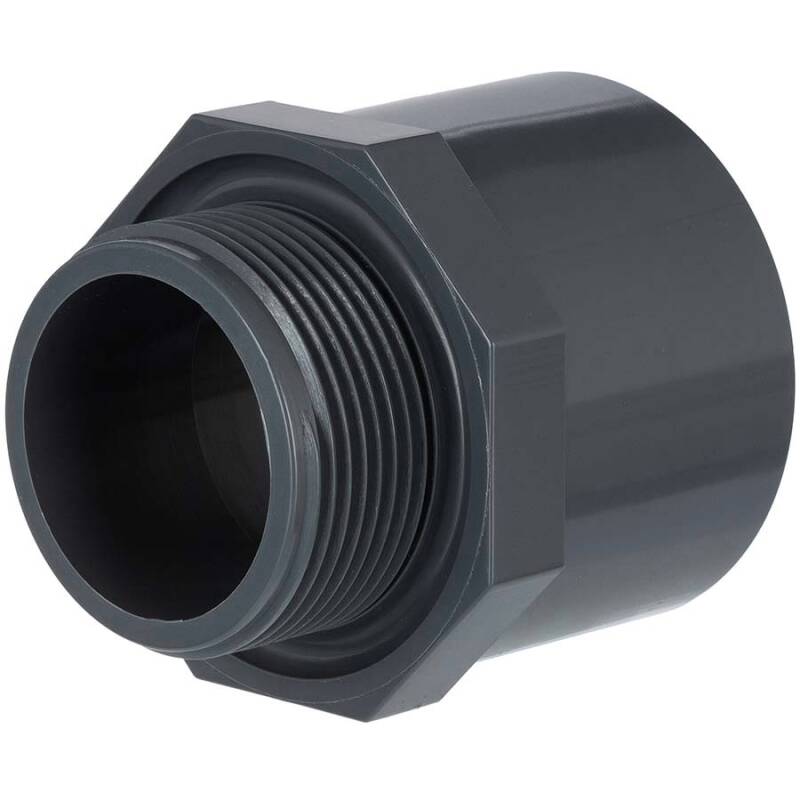

U-PVC male/female solvent adapter, male thread
AF0302.010.012
10/16mm x 1/4"
10
16
1/4" (13,16mm)
32
13
12
12
19
1,00 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.012.012
12/16mm x 1/4"
12
16
1/4" (13,16mm)
32
12,5
12
12
19
1,23 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.012.016
12/16mm x 3/8"
12
16
3/8" (16,66mm)
36,5
13
14
11,5
20
0,96 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.016.016
16/20mm x 3/8"
16
20
3/8" (16,66mm)
34
14
16
12
22
0,52 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.016.020
16/20mm x 1/2"
16
20
1/2" (20,96mm)
38
17,5
15
14
27
0,48 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.020.016
20/25mm x 3/8"
20
25
3/8" (16,66mm)
42
17
18,5
11
30
0,87 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.020.020
20/25mm x 1/2"
20
25
1/2" (20,96mm)
47
16
19
14,5
27
0,36 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.020.025
20/25mm x 3/4"
20
25
3/4" (26,44mm)
44
16
19
15
33
0,44 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.020.032
20/25mm x 1"
20
25
1" (33,25mm)
48
16
19
19
41
0,74 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.025.020
25/32mm x 1/2"
25
32
1/2" (20,96mm)
49
19,5
22
15
36
0,50 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.025.025
25/32mm x 3/4"
25
32
3/4" (26,44mm)
51
19
22
16
36
0,50 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.025.032
25/32mm x 1"
25
32
1" (33,25mm)
53
19,5
22
19
36
0,68 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.025.040
25/32mm x 1 1/4"
25
32
1 1/4" (41,91mm)
52
19
22,5
20
51
1,13 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.032.020
32/40mm x 1/2"
32
40
1/2" (20,96mm)
48
22,5
21,5
16
46
0,89 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.032.025
32/40mm x 3/4"
32
40
3/4" (26,44mm)
54,5
22
26
16
46
0,60 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.032.032
32/40mm x 1"
32
40
1" (33,25mm)
57
23
26
20
42
0,60 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.032.040
32/40mm x 1 1/4"
32
40
1 1/4" (41,91mm)
59,5
22,5
26
21
45,5
0,76 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.032.050
32/40mm x 1 1/2"
32
40
1 1/2" (47,81mm)
58,5
23
26,5
20
59
1,25 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.040.025
40/50mm x 3/4"
40
50
3/4" (26,44mm)
54
27
25,5
17
55
2,07 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.040.032
40/50mm x 1"
40
50
1" (33,25mm)
60
26
31
18,5
51
1,00 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.040.040
40/50 x 1 1/4"
40
50
1 1/4" (41,91mm)
67
27
31
21
55
0,90 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.040.050
40/50mm x 1 1/2"
40
50
1 1/2" (47,80mm)
67
26,5
31
21,5
55
1,07 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.040.063
40/50mm x 2"
40
50
2" (59,61mm)
63
26
31
20
74
2,00 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.050.032
50/63mm x 1"
50
63
1" (33,25mm)
68,5
31
37,5
19
64
2,07 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.050.040
50/63mm x 1 1/4"
50
63
1 1/4" (41,91mm)
73,5
32
37,5
22
65
1,34 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.050.050
50/63mm x 1 1/2"
50
63
1 1/2" (47,80mm)
74
31,5
37,5
21
65
1,07 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.050.063
50/63mm x 2"
50
63
2" (59,61mm)
73
32
38
25
64
1,68 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.063.032
63/75mm x 1"
63
75
1" (33,25mm)
79
38
44
20
80
3,17 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.063.040
63/75mm x 1 1/4"
63
75
1 1/4" (41,91mm)
81
38
44
21,5
80
3,17 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.063.050
63/75mm x 1 1/2"
63
75
1 1/2" (47,80mm)
80
38
43,5
22
75
2,37 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.063.063
63/75mm x 2"
63
75
2" (59,61mm)
84
38
44
25,5
74
1,75 €*
U-PVC male/female solvent adapter, male thread
AF0302.063.075
63/75mm x 2 1/2"
63
75
2 1/2" (75,18mm)
87
51
45
30
80
3,58 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.075.063
75/90mm x 2"
75
90
2" (59,61mm)
94
44
51
26,5
95
5,49 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.075.075
75/90mm x 2 1/2"
75
90
2 1/2" (75,18mm)
92,5
45
50
30
94
4,01 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.075.090
75/90mm x 3"
75
90
3" (87,88mm)
99
52
50
33
93
5,49 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.090.075
90/110mm x 2 1/2"
90
110
2 1/2" (75,18mm)
110
51
61
31
115
8,31 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.090.090
90/110mm x 3"
90
110
3" (87,88mm)
108
52
60
33
114
9,02 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.090.110
90/110mm x 4"
90
110
4" (113,03mm)
117,5
52
60
38
115
11,08 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.110.090
110/125mm x 3"
110
125
3" (87,88mm)
114
61
65
35
129,5
9,52 €*
pc:
U-PVC male/female solvent adapter, male thread
AF0302.110.110
110/125mm x 4"
110
125
4" (113,03mm)
122
62
68
40
128
10,06 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Übergangsnippel, Klebemuffe/-stutzen x Aussengewinde

Anschluss:
Klebemuffe/-stutzen x Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:

Übergangsnippel Detail 1

PVC-U Übergangsnippel in der Muffe


Der PVC-U Übergangsnippel besitzt zwei Klebenutzmaße neben dem gegenüberliegendem Aussengewinde. Das äußere Maß (das größere Maß) gibt die Dimension des Stutzen an. So kann der PVC-U Übergangsnippel in eine passende Klebemuffe eingeklebt werden, um so diesen Fitting mit einem Aussengewinde zu versehen.
Übergangsnippel Detail 2

PVC-U Übergangsnippel über den Stutzen bzw. Rohr


Mit dieser Variante können PVC-U Kleberohr oder Fittings mit einem passenden Stutzenaussenmaß mit einem Aussengewinde versehen werden. Der Stutzen bzw. das Rohr hat das identische Maß zum inneren Maß (Muffe) des PVC-U Übergangsnippel.
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings

HTC Logo ist eine europaweit geschützte, eingetragene Marke der HT CONNECT GmbH & Co. KG

Others

AF0302.020.025

20/25mm x 3/4" - .step file

AF0302.020.032

20/25mm x 1" - .step file

AF0302.025.040

25/32mm x 1 1/4" - .step-file

AF0302.032.050

32/40mm x 1 1/2" - .step-file

AF0302.040.032

40/50mm x 1" - .step-file

AF0302.040.063

40/50mm x 2" - .step-file
