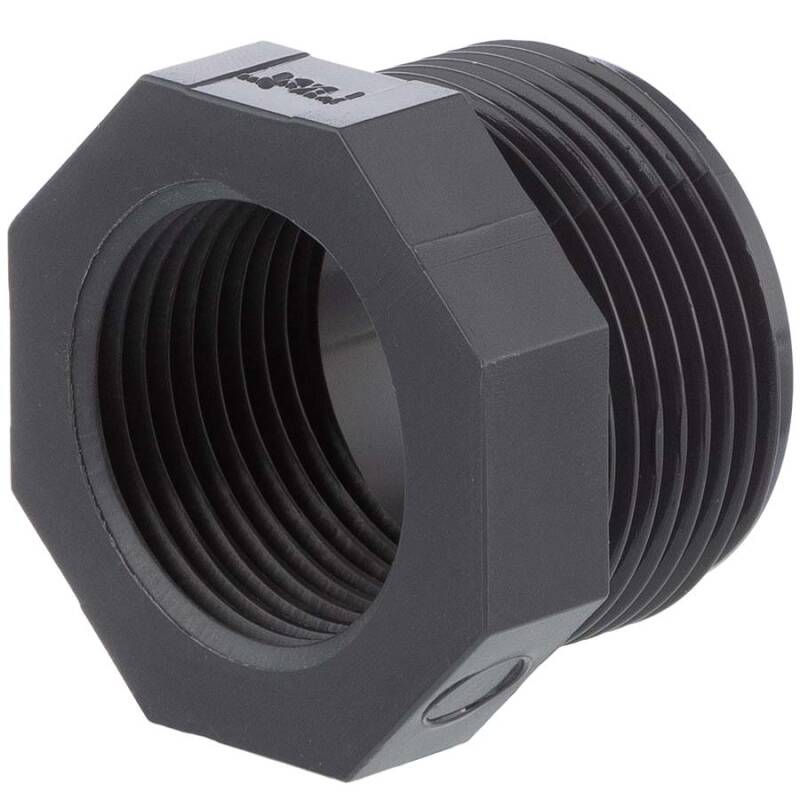

U-PVC male/female threaded reducing bush

SKU: AF0206
Auswahl Steuerzone / Lieferland
from
0,87 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(16) { ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/AF0206_Zeichnung.jpg" ["meta keywords"]=> string(16) "PVC_Reduzierring" ["tabellen_ansicht"]=> string(1) "1" ["dimension_0010_variante"]=> string(0) "" ["dimension_0400_l"]=> string(0) "" ["dimension_0420_l1"]=> string(0) "" ["hat_3d_bilder"]=> string(1) "1" ["dimension_0288_g"]=> string(8) "" ["dimension_0300_g1"]=> string(8) "" ["dimension_0630_s"]=> string(0) "" ["dimension_0450_l2"]=> string(0) "" ["break_after"]=> string(1) "1" ["break_after_color"]=> string(7) "#b1b1b1" ["break_after_thickness"]=> string(3) "6px" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
G
G1
L
L1
L2
S
Price
Quantity
AF0206.020.009
1/2" x 1/8"
1/2" (20,96mm)
1/8" (9,73mm)
23
13
15
25
1,14 €*
pc.:
In stock: 457
delivery status: 1 - 4 working days
AF0206.020.012
1/2" x 1/4"
1/2" (20,96mm)
1/4" (13,16mm)
23
13
14
24
1,14 €*
pc.:
In stock: 11
delivery status: 1 - 4 working days
AF0206.025.009
3/4" x 1/8"
3/4" (26,44mm)
1/8" (9,73mm)
23
14
14
30
1,33 €*
pc.:
In stock: 472
delivery status: 1 - 4 working days
AF0206.025.012
3/4" x 1/4"
3/4" (26,44mm)
1/4" (13,16mm)
23
14
14
30
1,33 €*
pc.:
In stock: 164
delivery status: 1 - 4 working days
AF0206.025.016
3/4" x 3/8"
3/4" (26,44mm)
3/8" (16,66mm)
23
13
14
30
1,33 €*
pc:
In stock: 337
delivery status: 1 - 4 working days
AF0206.025.020
3/4" x 1/2"
3/4" (26,44mm)
1/2" (20,96mm)
23
19
15
30
0,87 €*
pc.:
In stock: 267
delivery status: 1 - 4 working days
AF0206.032.009
1" x 1/8"
1" (33,25mm)
1/8" (9,73mm)
29
12,5
18
40
1,40 €*
pc:
In stock: 346
delivery status: 1 - 4 working days
AF0206.032.012
1" x 1/4"
1" (33,25mm)
1/4" (13,16mm)
32
12
19
40
1,40 €*
pc.:
In stock: 167
delivery status: 1 - 4 working days
AF0206.032.016
1" x 3/8"
1" (33,25mm)
3/8" (16,44mm)
29
14
18
40
1,40 €*
pc:
In stock: 363
delivery status: 1 - 4 working days
AF0206.032.020
1" x 1/2"
1" (33,25mm)
1/2" (20,96mm)
29
17,5
17,5
40
1,40 €*
pc:
In stock: 181
delivery status: 1 - 4 working days
AF0206.032.025
1" x 3/4"
1" (33,25mm)
3/4" (26,44mm)
29
15
18
40
1,13 €*
pc.:
In stock: 1015
delivery status: 1 - 4 working days
AF0206.040.020
1 1/4" x 1/2"
1 1/4" (41,91mm)
1/2" (20,96mm)
30
17,5
18
50
2,48 €*
pc:
In stock: 225
delivery status: 1 - 4 working days
AF0206.040.025
1 1/4" x 3/4"
1 1/4" (41,91mm)
3/4" (26,44mm)
30
17
19
50
2,48 €*
pc:
In stock: 211
delivery status: 1 - 4 working days
AF0206.040.032
1 1/4" x 1"
1 1/4" (41,91mm)
1" (33,25mm)
34
34
20
50
1,96 €*
pc.:
In stock: 1
delivery status: 1 - 4 working days
AF0206.050.009
1 1/2" x 1/8"
1 1/2" (47,81mm)
1/8" (9,73mm)
32
12,5
19
55
2,98 €*
pc:
In stock: 305
delivery status: 1 - 4 working days
AF0206.050.012
1 1/2" x 1/4"
1 1/2" (47,81mm)
1/4" (13,16mm)
32
12,5
19
55
2,98 €*
pc:
In stock: 305
delivery status: 1 - 4 working days
AF0206.050.016
1 1/2" x 3/8"
1 1/2" (47,81mm)
3/8" (16,66mm)
32
12,5
19
55
2,98 €*
pc:
In stock: 294
delivery status: 1 - 4 working days
AF0206.050.020
1 1/2" x 1/2"
1 1/2" (47,81mm)
1/2" (20,96mm)
32
15,5
19
55
2,98 €*
pc:
In stock: 257
delivery status: 1 - 4 working days
AF0206.050.025
1 1/2" x 3/4"
1 1/2" (47,81mm)
3/4" (26,44mm)
32
17
19
55
2,98 €*
pc:
In stock: 263
delivery status: 1 - 4 working days
AF0206.050.032
1 1/2" x 1"
1 1/2" (47,81mm)
1" (33,25mm)
32
21
19
55
2,98 €*
pc:
In stock: 251
delivery status: 1 - 4 working days
AF0206.050.040
1 1/2" x 1 1/4"
1 1/2" (47,81mm)
1 1/4" (41,91mm)
35
20
21
55
2,23 €*
pc.:
In stock: 313
delivery status: 1 - 4 working days
AF0206.063.009
2" x 1/8"
2" (59,61mm)
1/8" (9,73mm)
36
9
23
65
4,36 €*
pc:
In stock: 139
delivery status: 1 - 4 working days
AF0206.063.012
2" x 1/4"
2" (59,61mm)
1/4" (13,16mm)
36
14
23
65
4,36 €*
pc:
In stock: 137
delivery status: 1 - 4 working days
AF0206.063.016
2" x 3/8"
2" (59,61mm)
3/8" (16,66mm)
36
13,5
23
65
4,36 €*
pc:
In stock: 140
delivery status: 1 - 4 working days
AF0206.063.020
2" x 1/2"
2" (59,61mm)
1/2" (20,96mm)
36
16
23
65
4,36 €*
pc:
In stock: 130
delivery status: 1 - 4 working days
AF0206.063.025
2" x 3/4"
2" (59,61mm)
3/4" (26,44mm)
36
17
23
65
4,36 €*
pc:
In stock: 129
delivery status: 1 - 4 working days
AF0206.063.032
2" x 1"
2" (59,61mm)
1" (33,25mm)
36
22
23
65
4,36 €*
pc:
In stock: 115
delivery status: 1 - 4 working days
AF0206.063.040
2" x 1 1/4"
2" (59,61mm)
1 1/4" (41,91mm)
36
4,36 €*
pc:
In stock: 108
delivery status: 1 - 4 working days
AF0206.075.063
2 1/2" x 2"
2 1/2" (75,18mm)
2" (59,61mm)
47
42
31
80
4,66 €*
pc.:
In stock: 2
delivery status: 1 - 4 working days
AF0206.090.075
3" x 2 1/2"
3" (87,88mm)
2 1/2" (75,18mm)
50
44
34
95
7,96 €*
pc.:
In stock: 9
delivery status: 1 - 4 working days
AF0206.110.090
4" x 3"
4" (113,03mm)
3§ (87,88mm)
57
49
39
120
18,74 €*
pc.:
In stock: 10
delivery status: 1 - 4 working days

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Reducing Bush, Male Thread x Female Thread

Connection:
Male Thread x Female Thread
Thread:
BSP thread type G, not self-sealing, seal with PTFE tape or similar.
Temperature:
up to 45 °C constant, temporarily up to 60 °C
Operating pressure (PN):
max. 10 bar at 20 °C (medium: water)
Material:
PVC-U (Unplasticized Polyvinyl Chloride)
Color:
Grey
DOWNLOAD RoHS confirmation HTC
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD Sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
