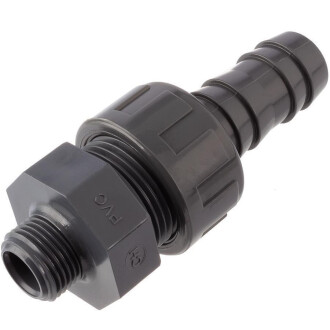

U-PVC male threaded union with hose tail

SKU: AF0805
Auswahl Steuerzone / Lieferland
from
3,21 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
E
F
G
G1
H
L
L1
S
Price
Quantity
AF0805.016.016
16mm x 3/8"
16
36
3/8" (16,66mm)
3/4" (26,44mm)
85
35
11
32
3,58 €*
pc.:
AF0805.020.018
18mm x 1/2"
18
36
1/2" (20,96mm)
3/4" (26,44mm)
87,5
35
16
32
3,58 €*
pc.:
AF0805.020.020
20mm x 1/2"
20
36
1/2" (20,96mm)
3/4" (26,44mm)
88,5
38
16
32
3,47 €*
pc.:
AF0805.025.020
3/4" x 20mm
20 (20,4/19,2)
43,5
3/4" (26,44mm)
1" (33,25mm)
90
29,5
16
40
3,21 €*
pc.:
AF0805.025.025
25mm x 3/4"
25
41
3/4" (26,44mm)
1" (33,25mm)
100,5
42
16
40
3,70 €*
pc.:
AF0805.032.025
1" x 25mm
25 (25,5/24,2)
53
1" (33,25mm)
1 1/4" (41,91mm)
100,5
35
18
50
3,99 €*
pc.:
AF0805.032.032
1" x 32mm
32 (32,5/31,5)
53
1" (33,25mm)
1 1/4" (41,91mm)
105,5
39
18
50
4,17 €*
pc.:
AF0805.040.032
1 1/4" x 32mm
32 (32,5/31,5)
60,5
1 1/4" (41,91mm)
1 1/2" (47,81mm)
109
39
21
55
4,76 €*
pc.:
AF0805.040.038
1 1/4" x 38mm
38 (38,8/37,5)
60,5
1 1/4" (41,91mm)
1 1/2" (47,81mm)
126,5
56
21
55
4,94 €*
pc.:
AF0805.040.040
1 1/4" x 40mm
40
61
1 1/4" (41,91mm)
1 1/2" (47,81mm)
120
52
21
55
5,75 €*
pc.:
AF0805.050.038
38mm x 1 1/2"
38
74
1 1/2" (47,80mm)
2" (59,61mm)
128,5
57
21
65
7,09 €*
pc.:
AF0805.050.050
50mm x 1 1/2"
50
74
1 1/2" (47,80mm)
2" (59,61mm)
131
57
21
65
7,75 €*
pc.:
AF0805.063.060
60mm x 2"
60
90
2" (59,61mm)
2 1/2" (75,18mm)
144
60
25
80
10,34 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Schlauchtüllen Verschraubung Aussengewinde

Anschluss:
Aussengewinde x Schlauchtüllenverschraubung
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Dichtung:
EPDM
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
