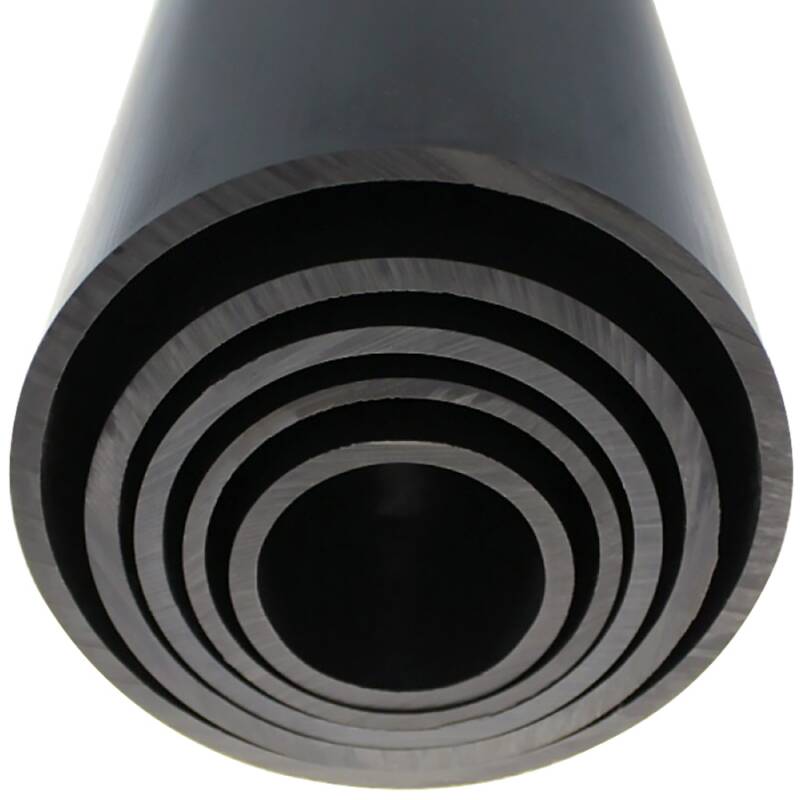

U-PVC pipe 40 x 1,9mm - PN 10

SKU: AR0040.P16
Auswahl Steuerzone / Lieferland
Choose the variation
Grey 40 x 3,0mm - PN16
from
2,42 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(13) { ["maximalmenge schlauch"]=> string(1) "0" ["dimension_0913_länge"]=> string(9) "5m ±0,5%" ["wichtiger_hinweis"]=> string(144) "

wichtiger Hinweis

Rohrzuschnitt 1m und 2m werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.

" ["tabellen_ansicht"]=> string(1) "1" ["dimension_0220_dn"]=> string(7) "max. 34" ["meta keywords"]=> string(18) "PVC-Rohr_Druckrohr" ["dimension_0140_d"]=> string(10) "40" ["bild_abmessungen"]=> string(38) "/bilder/abmessungen/Rohr_Zeichnung.jpg" ["dimension_0760_w"]=> string(9) "mind. 3,0" ["dimension_0010_variante"]=> string(19) "5m Länge mit Muffe" ["alternatives_icon"]=> string(49) "bilder/artikelicons/icon-rohr-grau-pn16-50x50.png" ["dimension_9899_en1452 (pn)"]=> string(10) "16" ["anbieterkennzeichnung_htc"]=> string(1) "1" }
View item details in PDF
How to measure a threaded fitting

wichtiger Hinweis

Rohrzuschnitt 1m und 2m werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.

  • Available immediately
   Variants

Item no.
Variation
D
DN
W
Length
EN1452 (PN)
Price
Quantity
AR0040.P16.001-01
1m Länge ohne Muffe
40
max. 34
mind. 3,0
1m ±1%
16
2,42 €*
Pipe:
AR0040.P16.001-10
1m Länge
ohne Muffe
ab 10 Stück
40
max. 34
mind. 3,0
1m ±1%
16
hat Überlänge
2,42 €*
pc.:
Minimum order quantity: 10
AR0040.P16.002
2m Länge
ohne Muffe
40
max. 34
mind. 3,0
2m ±1%
16
hat Überlänge
5,32 €*
Pipe:
Minimum order quantity: 6
AR0040.P16.005
5m Länge
mit Muffe
40
max. 34
mind. 3,0
5m ±1%
16
13,30 €*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Industrial Pipe Grey 40 x 3.0mm - PN 16 bar

Outer Diameter:
40mm
Wall Thickness:
min. 3.0mm
Temperature:
up to 45°C constant, short-term 60°C
Working Pressure:
see table (EN 1452-2)
Material:
PVC-U
Color:
Grey

Shipping cost information Germany 2m pipes HTC Logo :
6 - 18 pipes shipping costs 7.90 EUR gross
19 - 36 pipes shipping costs 15.80 EUR gross
37 - 54 pipes shipping costs 23.70 EUR gross
55 - 72 pipes shipping costs 31.60 EUR gross
73 - 90 pipes shipping costs 39.50 EUR gross
91 - 108 pipes shipping costs 47.40 EUR gross

Note: Nominal pressure up to 90mm, ISO 4065 based on design coefficient C = 2.5. Nominal pressure from 110mm, ISO 4065 based on design coefficient C = 2.0.

  • Dimensions according to EN 1452-2
  • Delivery length +/- 1%
  • 1m length without socket
  • 2m length without socket
  • 5m length with socket
  • The unit DN is derived from the wall thickness and is to be considered as nominal plus tolerance according to DIN 8062 and not a usable dimension

Our Quality - No Compromises

  • Exclusively virgin material - no recycled material
  • LEAD FREE - free from lead or other heavy metals
  • Top quality at a top price
DOWNLOADRoHS confirmation HTC
DOWNLOAD Technical datasheet PVC-U pipe 40 x 3.0mm, PN 16
DOWNLOAD Bonding PVC-U pipes and fittings
DOWNLOAD PVC-U technical characteristics
DOWNLOAD Chemical resistance of plastics
