U-PVC pipe 63 x 3,0mm - PN 10

SKU: AR0063.P10
Auswahl Steuerzone / Lieferland
Choose the variation
Grey 63 x 3,0mm - PN10
from
4,02 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(13) { ["maximalmenge schlauch"]=> string(1) "0" ["dimension_0913_länge"]=> string(4) "±1%" ["wichtiger_hinweis"]=> string(144) "

wichtiger Hinweis

Rohrzuschnitt 1m und 2m werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.

" ["tabellen_ansicht"]=> string(1) "1" ["dimension_0220_dn"]=> string(7) "max. 57" ["meta keywords"]=> string(18) "PVC-Rohr_Druckrohr" ["dimension_0140_d"]=> string(10) "63" ["bild_abmessungen"]=> string(38) "/bilder/abmessungen/Rohr_Zeichnung.jpg" ["dimension_0760_w"]=> string(9) "mind. 3,0" ["dimension_0010_variante"]=> string(20) "1m Länge ohne Muffe" ["dimension_9899_en1452 (pn)"]=> string(10) "10" ["alternatives_icon"]=> string(49) "bilder/artikelicons/icon-rohr-grau-pn10-50x50.png" ["anbieterkennzeichnung_htc"]=> string(1) "1" }
View item details in PDF
How to measure a threaded fitting

wichtiger Hinweis

Rohrzuschnitt 1m und 2m werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.

  • Available immediately
   Variants

Item no.
Variation
D
DN
W
Length
EN1452 (PN)
Price
Quantity
AR0063.P10.001-01
1m Länge
ohne Muffe
1 - 5 Stück
63
max. 57
mind. 3,0
1m ±1%
10
4,02 €*
Pipe:
AR0063.P10.001-06
1m Länge
ohne Muffe
ab 6 Stück
63
max. 57
mind. 3,0
1m ±1%
10
hat Überlänge
4,02 €*
Pipe:
Minimum order quantity: 6
AR0063.P10.002
2m Länge
ohne Muffe
63
max. 57
mind. 3,0
2m ±1%
10
hat Überlänge
8,63 €*
Pipe:
Minimum order quantity: 5
AR0063.P10.005
5m Länge
mit Muffe
63
max. 57
mind. 3,0
5m ±1%
10
21,56 €*
Pipe:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

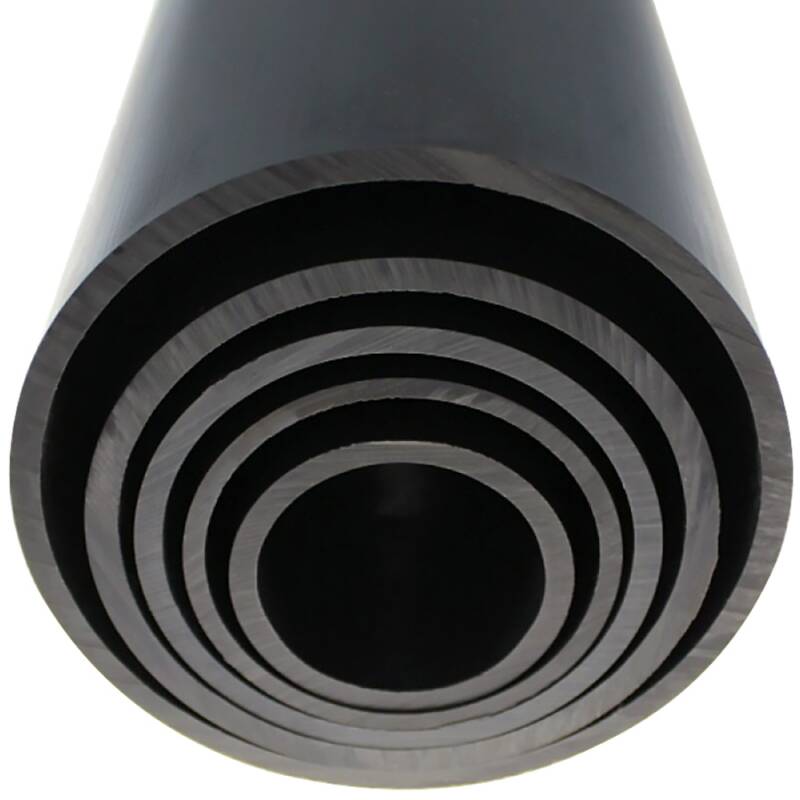

PVC-U pipe industrial pipe grey 63 x 3.0 mm – PN 10

OD:
63 mm
Wall thickness:
see table
Temperature:
up to 45°C continuous, short-term 60°C
Working pressure:
see table (EN 1452-2)
Material:
PVC-U
Colour:
Grey
Note: Nominal pressure up to 90 mm, ISO 4065 based on design coefficient C = 2.5. Nominal pressure from 110 mm, ISO 4065 based on design coefficient C = 2.0.

  • Dimensions according to EN 1452-2
  • Delivery length +/- 1%
  • 1 m length without socket
  • 2 m length without socket
  • 5 m length with socket
  • The nominal size DN results from the wall thickness and is to be regarded according to DIN 8062 as nominal plus tolerance and not as usable dimension
  • Production-related streaks or light scratches may occur

Our quality – no compromises

  • Exclusively virgin material – no recycled material
  • LEAD FREE – free from lead or other heavy metals
  • Top quality at a top price

Shipping cost notice Germany 1 m pipes HTC Logo :
6 – 12 pipes shipping costs EUR 7.90 incl. VAT
13 – 24 pipes shipping costs EUR 15.80 incl. VAT
25 – 36 pipes shipping costs EUR 23.70 incl. VAT
37 – 48 pipes shipping costs EUR 31.60 incl. VAT
49 – 60 pipes shipping costs EUR 39.50 incl. VAT
61 – 72 pipes shipping costs EUR 47.40 incl. VAT
73 – 84 pipes shipping costs EUR 55.30 incl. VAT
85 – 96 pipes shipping costs EUR 63.20 incl. VAT
97 – 108 pipes shipping costs EUR 71.10 incl. VAT
109 – 120 pipes shipping costs EUR 79.00 incl. VAT
121 – 132 pipes shipping costs EUR 86.90 incl. VAT
133 – 144 pipes shipping costs EUR 94.80 incl. VAT
145 – 156 pipes shipping costs EUR 102.70 incl. VAT
157 – 168 pipes shipping costs EUR 110.60 incl. VAT
169 – 180 pipes shipping costs EUR 118.50 incl. VAT
181 – 192 pipes shipping costs EUR 126.40 incl. VAT
193 – 204 pipes shipping costs EUR 134.30 incl. VAT
from 205 pipes shipping costs EUR 139.90 incl. VAT

Shipping cost notice Germany 2 m pipes HTC Logo :
5 – 10 pipes shipping costs EUR 7.90 incl. VAT
11 – 20 pipes shipping costs EUR 15.80 incl. VAT
21 – 30 pipes shipping costs EUR 23.70 incl. VAT
31 – 40 pipes shipping costs EUR 31.60 incl. VAT
41 – 50 pipes shipping costs EUR 39.50 incl. VAT
51 – 60 pipes shipping costs EUR 47.40 incl. VAT
61 – 70 pipes shipping costs EUR 55.30 incl. VAT
71 – 80 pipes shipping costs EUR 63.20 incl. VAT
81 – 90 pipes shipping costs EUR 71.10 incl. VAT
91 – 100 pipes shipping costs EUR 79.00 incl. VAT
101 – 110 pipes shipping costs EUR 86.90 incl. VAT
111 – 120 pipes shipping costs EUR 94.80 incl. VAT
121 – 130 pipes shipping costs EUR 102.70 incl. VAT
131 – 140 pipes shipping costs EUR 110.60 incl. VAT
141 – 150 pipes shipping costs EUR 118.50 incl. VAT
151 – 160 pipes shipping costs EUR 126.40 incl. VAT
161 – 170 pipes shipping costs EUR 134.30 incl. VAT
from 171 pipes shipping costs EUR 139.90 incl. VAT

DOWNLOADRoHS confirmation HTC
DOWNLOAD Technical data sheet PVC-U pipe 63 x 3.0 mm, PN 10 DE + EN
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD PVC-U technical characteristics
DOWNLOAD Chemical resistance of plastics
