U-PVC transparent pipe 63 x 3,0mm - PN 10

SKU: AT0063
Auswahl Steuerzone / Lieferland
Choose the variation
Transparent 63 x 3,0mm - PN10
from
3,80 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting

wichtiger Hinweis

Rohrzuschnitt wird speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.
  • Available immediately
   Variants

Item no.
Variation
D
DN
W
Length
Price
Quantity
AT0063.000.020
63mm - Länge 20cm
63
max. 55
mind. 3,0
200 ±1%
3,80 €*
Pipe:
AT0063.000.040
63mm - Länge 40cm
63
max. 55
mind. 3,0
400 ±1%
7,58 €*
Pipe:
AT0063.000.060
63mm - Länge 60cm
63
max. 55
mind. 3,0
600 ±1%
11,38 €*
Pipe:
AT0063.000.080
63mm - Länge 80cm
63
max. 55
mind. 3,0
800 ±1%
15,17 €*
Pipe:
AT0063.000.100
63mm - Länge 100cm
63
max. 55
mind. 3,0
1000 ±1%
18,96 €*
Pipe:
AT0063.000.120
63mm - Länge 120cm
63
max. 55
mind. 3,0
1200 ±1%
hat Überlänge
25,73 €*
Pipe:
AT0063.000.140
63mm - Länge 140cm
63
max. 55
mind. 3,0
1400 ±1%
hat Überlänge
29,51 €*
Pipe:
AT0063.000.160
63mm - Länge 160cm
63
max. 55
mind. 3,0
1600 ±1%
hat Überlänge
33,31 €*
Pipe:
AT0063.000.180
63mm - Länge 180cm
63
max. 55
mind. 3,0
1800 ±1%
hat Überlänge
37,09 €*
Pipe:
AT0063.000.200
63mm - Länge 200cm
63
max. 55
mind. 3,0
2000 ±1%
hat Überlänge
40,89 €*
Pipe:
AT0063.000.300
63mm - Länge 300cm
63
max. 55
mind. 3,0
3000 ±1%
56,88 €*
Pipe:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

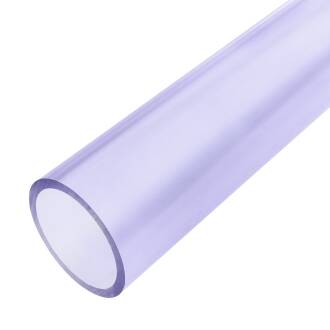

PVC-U Transparent Pipe 63 x 3.0mm - PN 10 bar

Outer Diameter:
63mm
Wall Thickness:
see table
Temperature:
up to 45°C constant, short-term 60°C
Working Pressure:
max. PN 10 bar at 20°C
Material:
PVC-U
Color:
transparent, bluish
Marking:
YES

Shipping cost information Germany pipe length 120cm – 200cm HTC Logo :
1 - 3 pipes shipping costs 9.90 EUR gross (without free shipping)
4 - 6 pipes shipping costs 19.80 EUR gross
7 - 9 pipes shipping costs 29.70 EUR gross
10 - 12 pipes shipping costs 39.60 EUR gross
13 - 15 pipes shipping costs 49.50 EUR gross
16 - 18 pipes shipping costs 59.40 EUR gross
19 - 21 pipes shipping costs 69.30 EUR gross
22 - 24 pipes shipping costs 79.20 EUR gross
25 - 27 pipes shipping costs 89.10 EUR gross
28 - 30 pipes shipping costs 99.00 EUR gross
31 - 33 pipes shipping costs 108.90 EUR gross
34 - 36 pipes shipping costs 118.80 EUR gross
from 37 pipes shipping costs 128.70 EUR gross


  • The PVC-U transparent pipe can be bonded with any commercially available PVC-U adhesive.
  • Color: transparent, bluish.
  • Due to the manufacturing process, streaks or light scratches may occur.
DOWNLOAD RoHS confirmation HTC
DOWNLOAD PVC-U pipe certificate B2 combustible materials
DOWNLOAD Bonding PVC-U pipes and fittings
DOWNLOAD PVC-U technical characteristics
DOWNLOAD Chemical resistance of plastics
