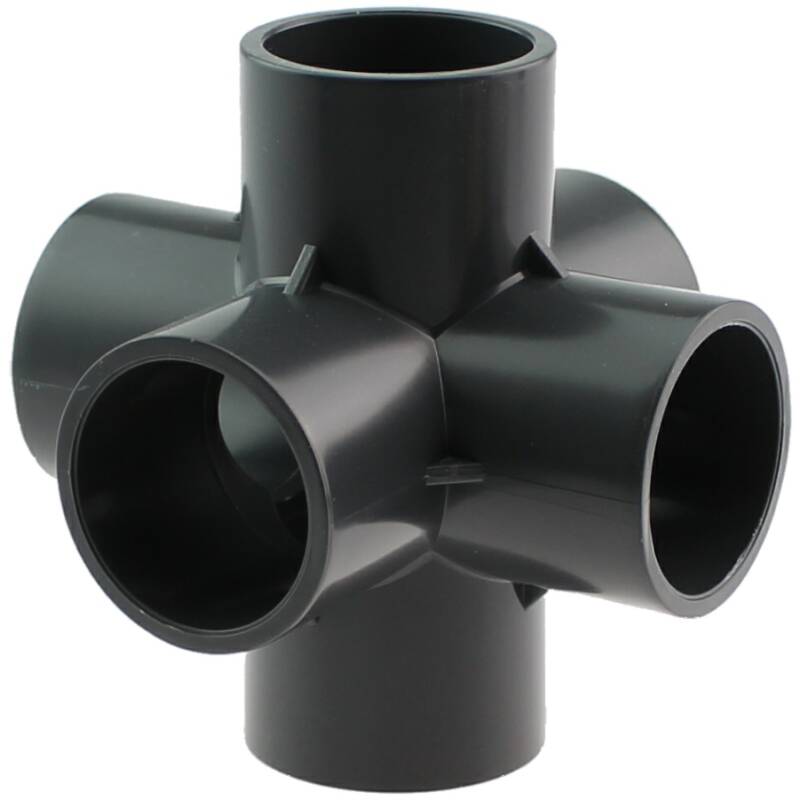

U-PVC sixfold solvent cross

SKU: AY-007
Auswahl Steuerzone / Lieferland
from
1,55 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
D1
H
L
Weight
Price
Quantity
AY071
6fach 20mm
20
25
49
72
42
1,55 €*
pc:
AY072
6fach 25mm
25
30,5
56
81
58
2,00 €*
pc:
AY073
6fach 32mm
32
38,5
64
90
90
2,87 €*
pc:
AY075
6fach 50mm
50
57,5
91
121
198
4,97 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Kreuz 6Wege, 6fach Klebemuffe

Anschluss:
6fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C, Mediumj Wasser
Material:
PVC-U
Farbe:
Grau
DOWNLOAD RoHS Konformitätserklärung - HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
