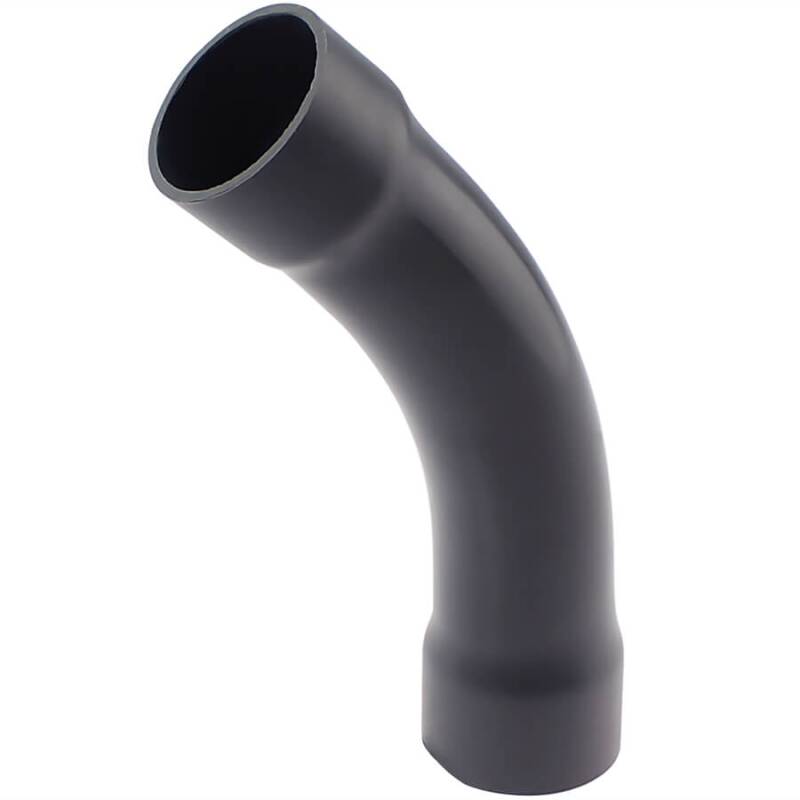

U-PVC solvent bend 45°

0,43 €

including 19% VAT., plus shipping

Item number: AF0402

How to measure a threaded fitting

Choose the variation

Industrie

auf Grund der thermischen Formung können die Maße z.T. abweichen

Item no.	Variation	B	D	H	Z	Weight	Price	Quantity
AF0402.P10.020	20mm	min. 16	20	min. 95	min. 40	21	0,43 €^*	pc.:
AF0402.P10.025	25mm	min. 18,5	25	min. 95	min. 45	28	0,48 €^*	pc.:
AF0402.P10.032	32mm	min. 22	32	min. 110	min. 52	37	0,99 €^*	pc.:
AF0402.P10.040	40mm	min. 26	40	min. 148	min. 70	78	1,57 €^*	pc.:
AF0402.P10.050	50mm	min. 31	50	min. 195	min. 80	162	2,31 €^*	pc.:
AF0402.P10.063	63mm	min. 37,5	63	min. 215	93	252	3,50 €^*	pc.:
AF0402.P10.075	75mm	min. 43,5	75	min. 230	min. 100	406	4,47 €^*	pc.:
AF0402.P10.090	90mm	min. 51	90	min. 305	min. 130	732	8,19 €^*	pc.:
AF0402.P10.110	110mm	min. 61	110	min. 370	min. 160	1115	14,38 €^*	pc.:
A-402-200	200mm	min. 106	200	min.	min.	5900	76,46 €^*	pc.:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PVC-U Bogen 45° aus Rohr, 2fach Klebemuffe 10 bar

Anschluss:

2fach Klebemuffe

Temperatur:

bis 45°C konstant, kurzzeitig 60°C

Arbeitsdruck ():

max. 10 bar bei 20°C Medium Wasser

Material:

PVC-U

Farbe:

Grau

Einsatzbereich:

Wichtig: Im Gegensatz zu Spritzgussfittings werden diese Fittings aus Rohr thermisch verformt. Die Maße sowie die Ausführung können deshalb z.T. leicht abweichen.
