Variants

Item no.
Variation
B
D
L
Price
Quantity
EC0404.P06.020
20mm
ca. 10
20
ca. 102
0,67 €*
pc:
EC0404.P06.025
25mm
ca. 18
25
ca. 85
0,71 €*
pc:
ALL404.P06.032
32mm
ca. 12
32
ca. 151
1,05 €*
pc:
ALL404.P06.040
40mm
ca. 18
40
ca. 189
1,18 €*
pc:
ECO404.P06.050
50mm
ca. 25
50
ca. 190
1,59 €*
pc:
ALL404.P06.063
63mm
ca. 34
63
ca. 299
2,78 €*
pc:
ALL404.P06.075
75mm
ca. 45
75
ca. 335
4,59 €*
pc:
CF0404.P06.090
90mm
ca. 55
90
ca. 440
8,60 €*
pc:
ALL404.P06.110
110mm
ca. 67
110
ca. 515
14,96 €*
pc:

incl. 19% VAT , plus shipping costs

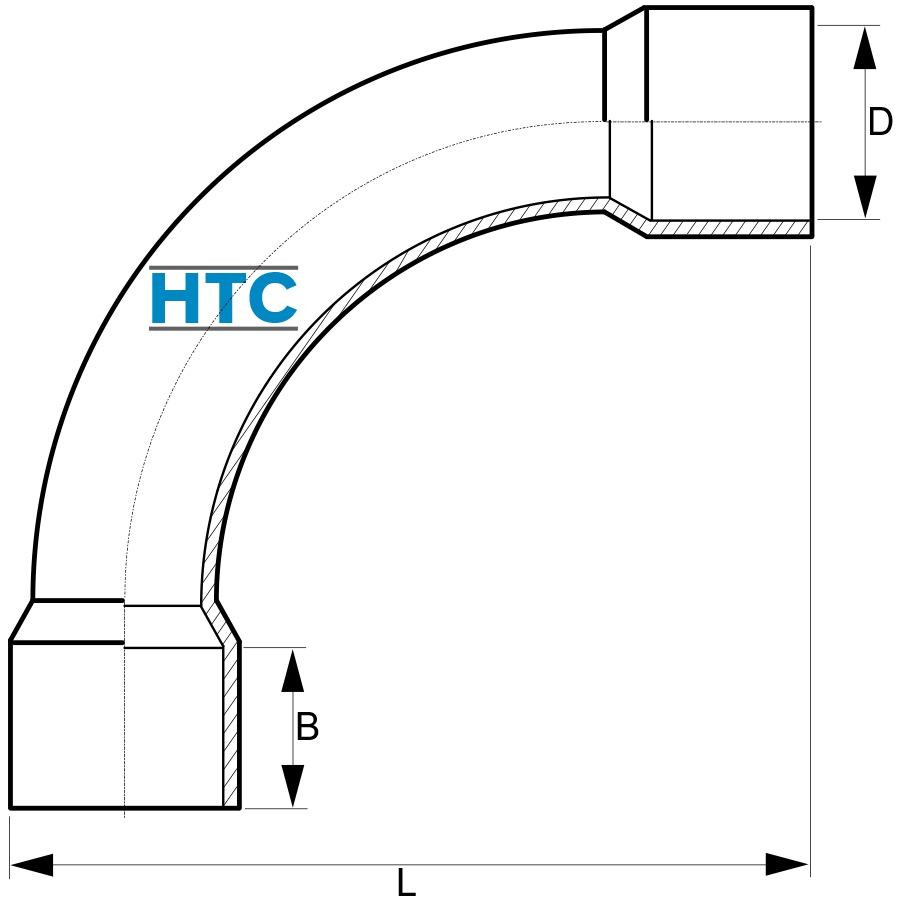

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

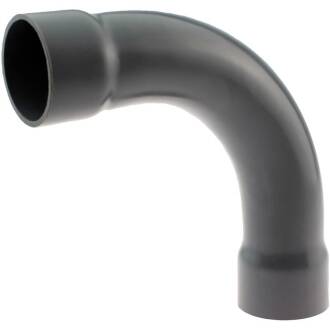

PVC-U Bogen 90° aus Rohr, 2fach Klebemuffe 6 bar ECO

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
20mm + 25mm max. 10 bar bei 20°C Medium Wasser, ab 32mm max. 6 bar
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Pikto
Qualität Legende:
ECO Qualitätslogo
ECO ist günstig und abgestimmt auf die Bedürfnisse im Teich-und Poolbau, Beregnungs- sowie Niederdruckanlagen im Allgemeinen.

Wichtig: Im Gegensatz zu Spritzgussfittings werden diese Fittings aus Rohr thermisch verformt. Die Formmaße sowie die Ausführung können deshalb z.T. abweichen.


DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
