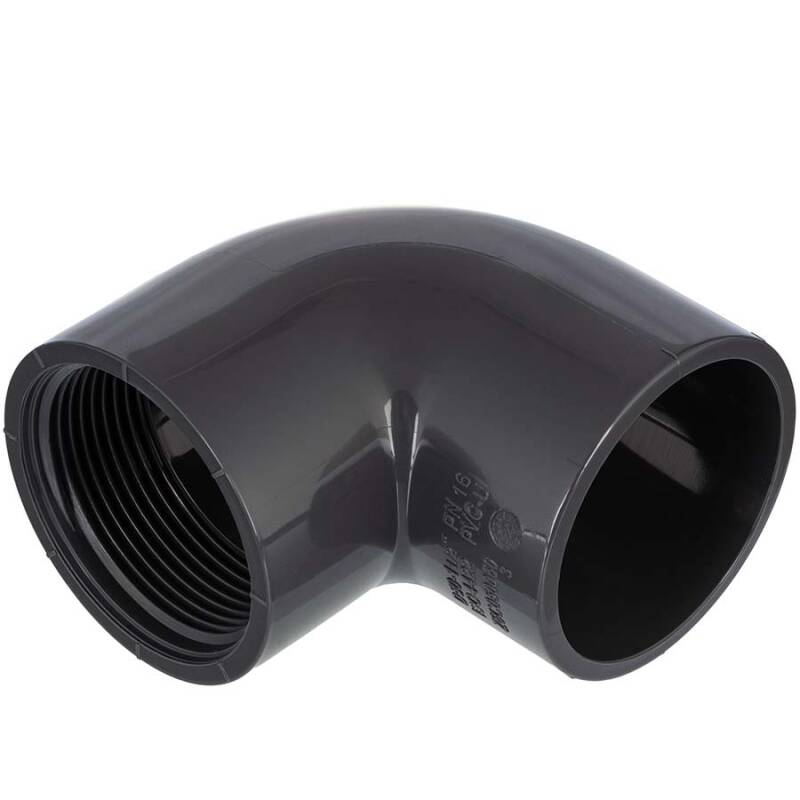

U-PVC solvent elbow 90° x female thread

from
0,67 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
D
D1
G
L
L1
L2
Price
Quantity
AF0407.016.016
16mm x 3/8"
16
21
3/8" (16,66mm)
29,5
14
0,81 €*
pc:
AF0407.020.020
20mm x 1/2"
20
28,5
1/2" (20,96mm)
29
16
18
0,67 €*
pc:
AF0407.025.025
25mm x 3/4"
25
32
3/4" (26,44mm)
34
19
0,68 €*
pc:
AF0407.032.032
32mm x 1"
32
40,5
1" (33,25mm)
40,5
22
21
0,99 €*
pc:
AF0407.040.040
40mm x 1 1/4"
40
50
1 1/4" (41,91mm)
49
26
1,52 €*
pc:
AF0407.050.050
50mm x 1 1/2"
50
58,5
1 1/2" (47,81mm)
58
31
22,5
2,20 €*
pc:
AF0407.063.050
63mm x 1 1/2"
63
75
1 1/2" (47,81mm)
70,5
38
4,70 €*
pc:
AF0407.063.063
63mm x 2"
63
75
2" (59,61mm)
70,5
38
2,73 €*
pc:
AF0407.075.075
75mm x 2 1/2"
75
90
2 1/2" (75,18mm)
85
44
41
7,68 €*
pc:
AF0407.090.090
90mm x 3"
90
110
3" (87,88mm)
99
51
18,21 €*
pc:
AF0407.110.110
110mm x 4"
110
130
4" (113,03mm)
119
61
53
23,87 €*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Winkel 90° Klebemuffe x Innengewinde

Anschluss:
Klebemuffe x Innengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings

Provider identification:

HTC Logo is a europaweit Europe-wide protected, registered trademark of HT CONNECT GmbH & Co. KG

HT CONNECT GmbH & Co. KG
Norisstraße 4
91257 Pegnitz
E-Mail: info@ht-connect.de

HTC Logo

Provider identification:

Aquaram Valves & Fittings S.L.
Pol. Ind. Coll de la Manya
C/ Leonardo Torres Quevedo, 11
08403 Granollers
E-Mail: comercial@aquaram.es


   Media

AF0407.020.020

20mm x 1/2" - step-file

AF0407.025.025

25mm x 3/4" - step-file

AF0407.032.032

32mm x 1" - step-file

AF0407.050.050

50mm x 1 1/2" - step-file
