PVC-U Elbow 90°, Female Socket x Male Thread

SKU: AF0410
Auswahl Steuerzone / Lieferland
from
1,07 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
D
d
G
I
I1
L1
L2
L3
R
Price
Quantity
PVC-U Elbow 90°, Female Socket x Male Thread 20mm x 1/2"
AF0410.020.020
20mm x 1/2"
20
R 1/2" (20,95mm)
31
33
---
15
---
1,07 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 20mm x 3/4"
AF0410.020.025
20mm x 3/4"
20
3/4" (26,44mm)
28
35
---
16
---
2,59 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 25mm x 3/4"
AF0410.025.025
25mm x 3/4"
25
R 3/4" (26,44mm)
34
36
---
15
---
1,49 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 25mm x 1"
AF0410.025.032
25mm x 1"
25
1" (33,25mm)
32
39
---
18
---
2,86 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 32mm x 3/4"
AF0410.032.025
32mm x 3/4"
32
3/4" (26,44mm)
43
48
---
30
30
2,32 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 32mm x 1"
AF0410.032.032
32mm x 1"
32
R 1" (33,25mm)
43
49
---
30
---
1,90 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 32mm x 1 1/4"
AF0410.032.040
32mm x 1 1/4"
32
1 1/4" (41,91mm)
39
45
---
24
---
1,58 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 40mm x 1 1/4"
AF0410.040.040
40/50mm x 1 1/4"
50
40
1 1/4" (41,91mm)
53,5
54,5
27
30,5
19
45
1,46 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 40mm x 1 1/2"
AF0410.040.050
40mm x 1 1/2"
40
1 1/2" (47,80mm)
47
49
---
22
---
2,33 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 50mm x 1 1/4"
AF0410.050.040
50mm x 1 1/4"
50
1 1/4" (41,91mm)
57
55,5
---
21
54,5
2,59 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 50/63mm x 1 1/2"
AF0410.050.050
50/63mm x 1 1/2"
63
50
1 1/2" (47,80mm)
66
63
31
37
20
55
1,71 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 50/63mm x 2"
AF0410.050.063
50/63mm x 2"
63
50
2" (59,61mm)
72
64
31
37,5
24
68
2,90 €*
pc:
PVC-U Elbow 90°, Female Socket x Male Thread 63mm x 2"
AF0410.063.063
63mm x 2"
63
2" (59,61mm)
70
68
---
26
71
2,90 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

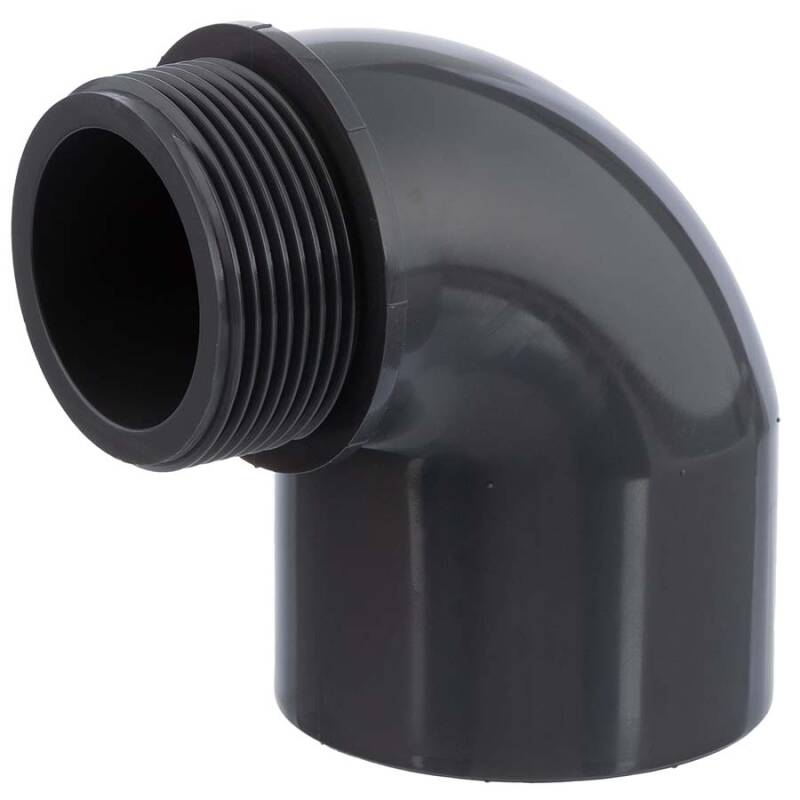

PVC-U Elbow 90°, Female Socket x Male Thread

Connection:
Female Socket x Male Thread
Thread:
BSP Pipe Thread ISO 228-1, not self-sealing, sealing with Teflon tape or similar.
Temperature:
up to 45°C constant, temporarily up to 60°C
Operating pressure (PN):
max. 10 bar at 20°C, medium water
Material:
PVC-U
Color:
Grey
DOWNLOAD RoHS confirmation HTC
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD Sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
