All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description
Missing sizes can be found in our successor model end cap, flat solvent socket

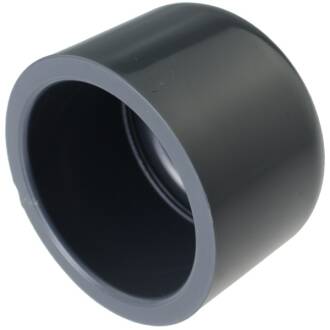

PVC-U end cap, solvent cap with female socket
Connection:
female socket
Temperature:
up to 45°C constant, short-term 60°C
Working pressure (PN):
max. 16 bar at 20°C medium water or max. 10 bar from 160mm
Material:
PVC-U
Color:
grey
