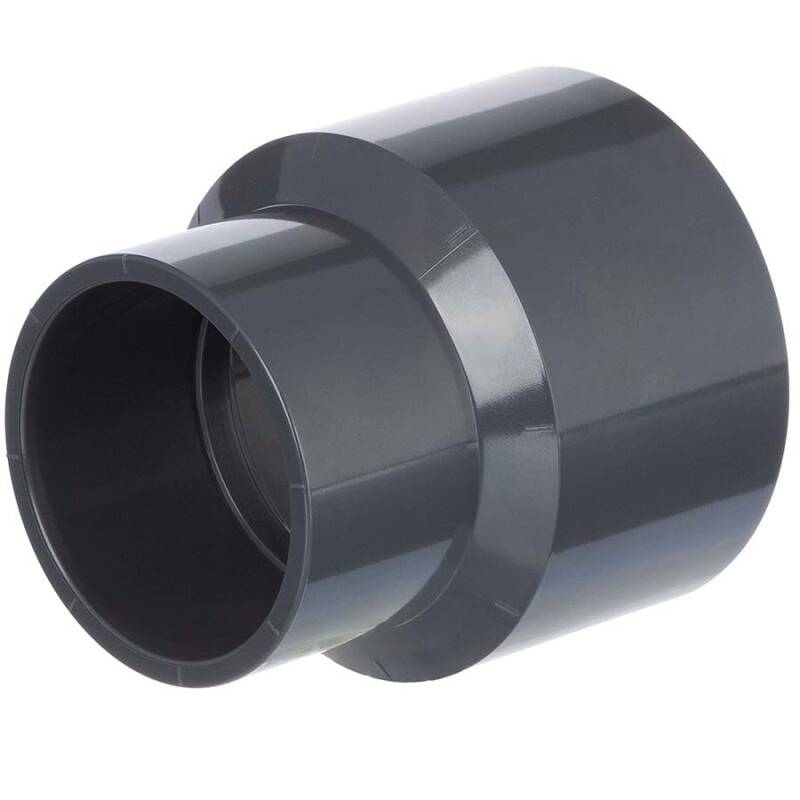

U-PVC solvent reducing socket

SKU: AF0202
Auswahl Steuerzone / Lieferland
from
0,33 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
F
G
L
L1
L2
L3
Price
Quantity
U-PVC solvent reducing socket 16/20 x 12mm
AF0202.016.012
16/20 x 12mm
19
12
16
20
32
1,79 €*
pc.:
U-PVC solvent reducing socket 20/25 x 12mm
AF0202.020.012
20/25 x 12mm
19
12
20
25
37,5
1,92 €*
pc.:
U-PVC solvent reducing socket 20/25 x 16mm
AF0202.020.016
20/25 x 16mm
19,8
16
20
25
39
0,57 €*
pc.:
U-PVC solvent reducing socket
AF0202.020.020
20/25 x 20mm
26
20
20
25
40,5
1,13 €*
pc:
PVC-U reduction coupler 2-part glue coupler 25/32 x 16mm
AF0202.025.016
25/32 x 16mm
20,5
16
25
32
39,5
14,5
19
23
0,36 €*
pc.:
U-PVC solvent reducing socket 25 x 20mm
AF0202.025.020
25/32 x 20mm
26
20
25
32
41,5
17
19
22
0,33 €*
pc:
U-PVC solvent reducing socket
AF0202.025.025
25/32 x 25mm
33
25
25
32
44
0,33 €*
pc:
U-PVC solvent reducing socket 32/40 x 16mm
AF0202.032.016
32/40 x 16mm
20,5
16
32
40
44,5
14
23
26
0,38 €*
pc.:
U-PVC solvent reducing socket 32 x 20mm
AF0202.032.020
32/40 x 20mm
25,5
20
32
40
47,5
16
23
26
0,38 €*
pc:
U-PVC solvent reducing socket 32 x 25mm
AF0202.032.025
32/40 x 25mm
32,3
25
32
40
49,5
19
23
26
0,45 €*
pc:
U-PVC solvent reducing socket
AF0202.032.032
32/40 x 32mm
40
32
32
40
53
0,45 €*
pc:
U-PVC solvent reducing socket 40/50 x 20mm
AF0202.040.020
40/50 x 20mm
26
20
40
50
51,5
15
27
31
1,17 €*
pc:
U-PVC solvent reducing socket 40/50 x 25mm
AF0202.040.025
40/50 x 25mm
32,5
25
40
50
58
19
27
31
1,17 €*
pc:
U-PVC solvent reducing socket 40/50 x 32mm
AF0202.040.032
40/50 x 32mm
39,5
32
40
50
58
23
27
31
1,17 €*
pc:
U-PVC solvent reducing socket
AF0202.040.040
40/50 x 40mm
50
40
40
50
59
28
28
29
0,60 €*
pc:
U-PVC solvent reducing socket 50 x 20mm
AF0202.050.020
50 x 20mm
27
20
50
61
64
1,01 €*
pc:
PVC-U reducing socket, 2-way solvent cement socket 50 x 25mm
AF0202.050.025
50 x 25mm
31
25
50
59
58,5
1,06 €*
pc:
U-PVC solvent reducing socket 50/63 x 32mm
AF0202.050.032
50/63 x 32mm
39,5
32
50
63
66
23
32
38
1,38 €*
pc:
U-PVC solvent reducing socket 50/63 x 40mm
AF0202.050.040
50/63 x 40mm
49
40
50
63
70
27
31,5
38
1,17 €*
pc:
U-PVC solvent reducing socket
AF0202.050.050
50/63 x 50mm
63
50
50
63
77
31
31
38
2,89 €*
pc:
U-PVC solvent reducing socket 63/75 x 20mm
AF0202.063.020
63 x 20mm
27
20
63
75,3
68
0,70 €*
pc:
U-PVC solvent reducing socket 63/75 x 25mm
AF0202.063.025
63 x 25mm
33
25
63
75,3
68
0,70 €*
pc:
U-PVC solvent reducing socket 63/75 x 32mm
AF0202.063.032
63/75 x 32mm
39,5
32
63
75
82
23
38
44
1,18 €*
pc:
U-PVC solvent reducing socket 63 x 40mm
AF0202.063.040
63/75 x 40mm
49
40
63
75
82
26,5
38
44
1,18 €*
pc:
U-PVC solvent reducing socket 63 x 50mm
AF0202.063.050
63/75 x 50mm
58
50
63
75
82
31
38
44
1,18 €*
pc:
U-PVC solvent reducing socket
AF0202.063.063
63/75 x 63mm
75
63
63
75
89
38
38
44
2,56 €*
pc:
U-PVC solvent reducing socket 75 x 40mm
AF0202.075.040
75 x 40mm
47
40
75
86
83
1,98 €*
pc:
U-PVC solvent reducing socket 75 x 50mm
AF0202.075.050
75 x 50mm
57,5
50
75
86
85
31
45
51
1,98 €*
pc:
U-PVC solvent reducing socket 75/90 x 63mm
AF0202.075.063
75/90 x 63mm
75
63
75
90
99
38
45
50
2,44 €*
pc:
U-PVC solvent reducing socket 90 x 50mm
AF0202.090.050
90/110 x 50mm
58
50
90
110
110
31
51
61
4,22 €*
pc:
U-PVC solvent reducing socket 90 x 63mm
AF0202.090.063
90/110 x 63mm
75,2
63
90
110
126,5
38
49
61
4,22 €*
pc:
U-PVC solvent reducing socket 90 x 75mm
AF0202.090.075
90/110 x 75mm
87
75
90
110
110
44
51
60
4,22 €*
pc:
U-PVC solvent reducing socket 110/125 x 50mm
AF0202.110.050
110/125 x 50mm
58
50
110
125
127
31
61
68
5,94 €*
pc:
U-PVC solvent reducing socket 110 x 63mm
AF0202.110.063
110/125 x 63mm
73,5
63
110
125
127
37,5
61
69
5,94 €*
pc:
U-PVC solvent reducing socket 110 x 75mm
AF0202.110.075
110/125 x 75mm
87
75
110
125
128,5
44
61
69
5,94 €*
pc:
U-PVC solvent reducing socket 110 x 90mm
AF0202.110.090
110/125 x 90mm
104
90
110
125
129
51
61
69
6,19 €*
pc:
U-PVC solvent reducing socket
AF0202.125.063
125/140 x 63mm
73,5
63
125
140
134,5
38
69
76
12,79 €*
pc:
U-PVC solvent reducing socket 125/140 x 75mm
AF0202.125.075
125/140 x 75mm
90
75
125
140
156
13,15 €*
pc.:
U-PVC solvent reducing socket 125/140 x 90mm
AF0202.125.090
125/140 x 90mm
104,5
90
125
140
149
50
67
76
11,63 €*
pc.:
U-PVC solvent reducing socket 125/140 x 110mm
AF0202.125.110
125/140 x 110mm
124
110
125
140
148,5
60,5
69,5
76
11,63 €*
pc.:
U-PVC solvent reducing socket 140/160 x 125mm
AF0202.140.125
140/160 x 125mm
148
125
140
160
194
18,20 €*
pc.:
U-PVC solvent reducing socket
AF0202.160.110
160/180 x 110mm
124,5
110
160
180
174
61
86
96
21,96 €*
pc:
U-PVC solvent reducing socket
AF0202.160.125
160/180 x 125mm
141
125
160
180
182
69
86
96
21,21 €*
pc:
U-PVC solvent reducing socket 180/200 x 110mm
AF0202.280.110
180/200 x 110mm
130
110
180
200
215
31,33 €*
pc.:
U-PVC solvent reducing socket 180/200 x 125mm
AF0202.280.125
180/200 x 125mm
148
125
180
200
224
31,33 €*
pc.:
U-PVC solvent reducing socket
AF0202.200.110
200/225 x 110mm
124,5
110
200
225
195,5
61
106
118
39,20 €*
pc:
U-PVC solvent reducing socket 200/225 x 125mm
AF0202.225.125
200/225 x 125mm
148
125
200
225
224
44,51 €*
pc:
U-PVC solvent reducing socket 200/225 x 160mm
AF0202.225.160
200/225 x 160mm
180
160
200
225
258
44,51 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Reduziermuffe, Klebemuffe/-stutzen x Klebemuffe

Anschluss:
Klebemuffe/-stutzen x Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C, Medium Wasser
Material:
PVC-U
Farbe:
Grau

Reduziermuffe

Abschnittstelle der Spritzgussform


Die Abschnittstelle bei PVC-U Reduziermuffe befindet sich teilweise im sichtbaren Bereich, da sich im Innenbereich die Abschnittstelle nachteilig auf den Strömungsverlauf auswirken kann.

Die Abschnittstelle kann falls notwendig einfach mit einem Messer o.ä. nachbearbeitet werden.

DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
