Variants

Item no.
Variation
B
B1
D
D1
D2
L
L1
L2
Weight
Pipe O-ø
Price
Quantity
AF0500.050.020
50 x 20mm
112
87
50
61
20
115
32
56
207
PVC 50 x PE 20
6,26 €*
pc:
AF0500.050.025
50 x 25mm
120
89
50
61
25
115
32
58
235
PVC 50 x PE 25
6,26 €*
pc:
AF0500.063.020
63 x 20mm
132
94
63
75
20
141
38
70
308
PVC 63 x PE 20
8,64 €*
pc:
AF0500.063.025
63 x 25mm
133
95
63
75
25
141
38
70
325
PVC 63 x PE 25
8,95 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

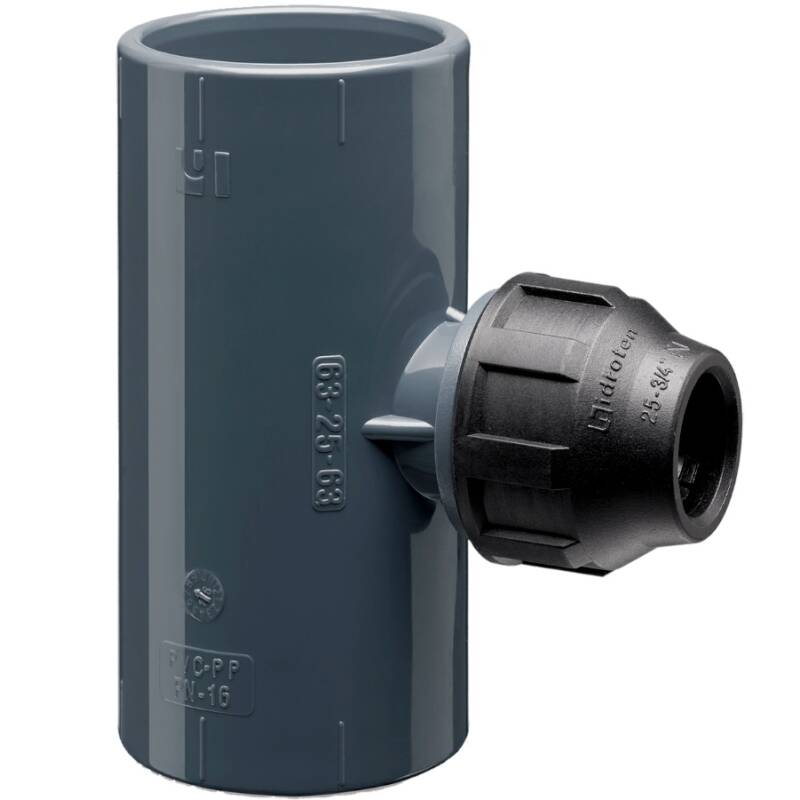

PVC-U T-Stück 1fach Abgang PP Klemme

Anschluss:
2fach Klebemuffe x 1fach Klemmanschluß
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PVC-U | Überwurmutter Klemme PP
Farbe:
Grau | Überwurfmutter Klemme Schwarz
Einsatzbereich:
AX-500

Die Verbindung zwischen den Welten

Für die schnelle Anbindung zwischen PVC und PE-Rohr; hier in einer Installation einer Bewässerungsanlage eines Gewächshauses. Für den direkten, schnell verlegten Abgang eines PE-Rohrs.

DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
DOWNLOAD RoHS Konformitätserklärung - Hidroten
