PVC-U 90° T-piece, solvent-weld socket x reduced female thread

SKU: AF0507
Auswahl Steuerzone / Lieferland
from
1,39 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
C
D
E
F
G
H
Price
Quantity
PVC-U T-piece 90°, glue socket x internal thread reduced 20mm x 3/8"
AF0507.020.016
20mm x 3/8"
20
14
16
13
27
3/8" (16,66mm)
25
54
1,39 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 25mm x 3/8"
AF0507.025.016
25mm x 3/8"
25
14
19
19
33
3/8" (16,66mm)
32
66
1,65 €*
pc:

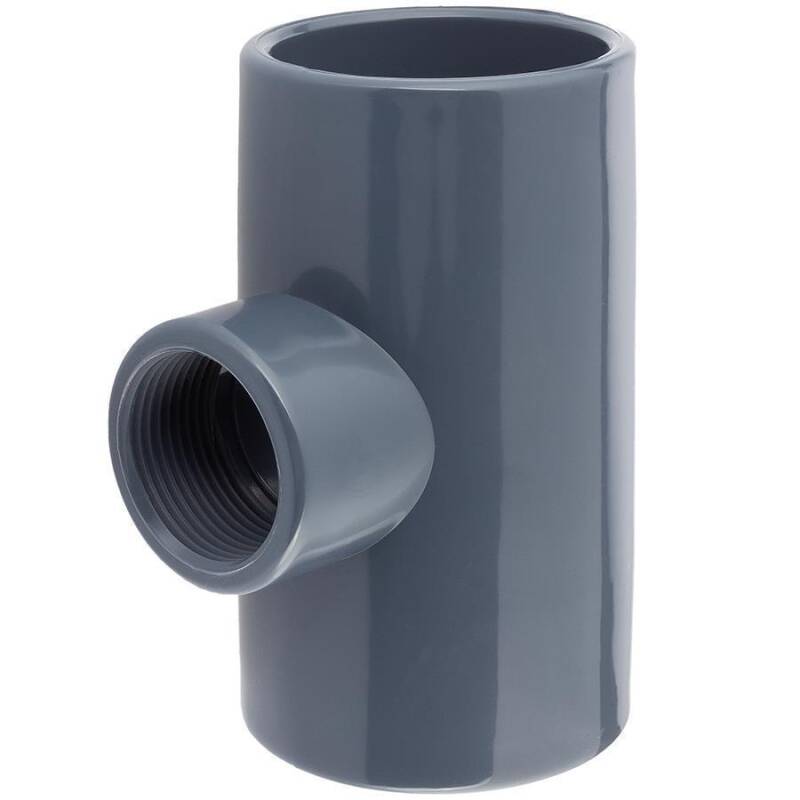

PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 25mm x 1/2"
AF0507.025.020
25mm x 1/2"
25
17
19
19
35
1/2" (20,96mm)
34
66
1,58 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 32mm x 1/2"
AF0507.032.020
32mm x 1/2"
32
16
22
23
39
1/2" (20,96mm)
40
78,5
2,01 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 32mm x 3/4"
AF0507.032.025
32mm x 3/4"
32
19
22
20
39
3/4" (26,44mm)
40
78,5
2,01 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 40mm x 1/2"
AF0507.040.020
40mm x 1/2"
40
15
26
33
49
1/2" (20,96mm)
50
95,5
2,67 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 40mm x 3/4"
AF0507.040.025
40mm x 3/4"
40
16,5
23
24,5
37
3/4" (26,44mm)
34
95
2,64 €*
pc:
PVC-U T-piece 90°, solvent cement socket x female thread reduced 40mm x 1"
AF0507.040.032
40mm x 1"
40
22
26
27
49
1" (33,25mm)
50
100
2,64 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 50mm x 1/2"
AF0507.050.020
50mm x 1/2"
50
15
24
30
46
1/2" (20,96mm)
33,5
113,5
4,18 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 50mm x 3/4"
AF0507.050.025
50mm x 3/4"
50
18
25
30
47
3/4" (26,44mm)
33,5
113,5
4,18 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 50mm x 1"
AF0507.050.032
50mm x 1"
50
22
31
37
59
1" (33,25mm)
63
118
4,18 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 50mm x 1 1/4"
AF0507.050.040
50mm x 1 1/4"
50
26
31
33
59
1 1/4" (41,91mm)
63
118
3,75 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 63mm x 1/2"
AF0507.063.020
63mm x 1/2"
63
18
42
37,5
73
1/2" (20,96mm)
75
144
6,33 €*
pc:

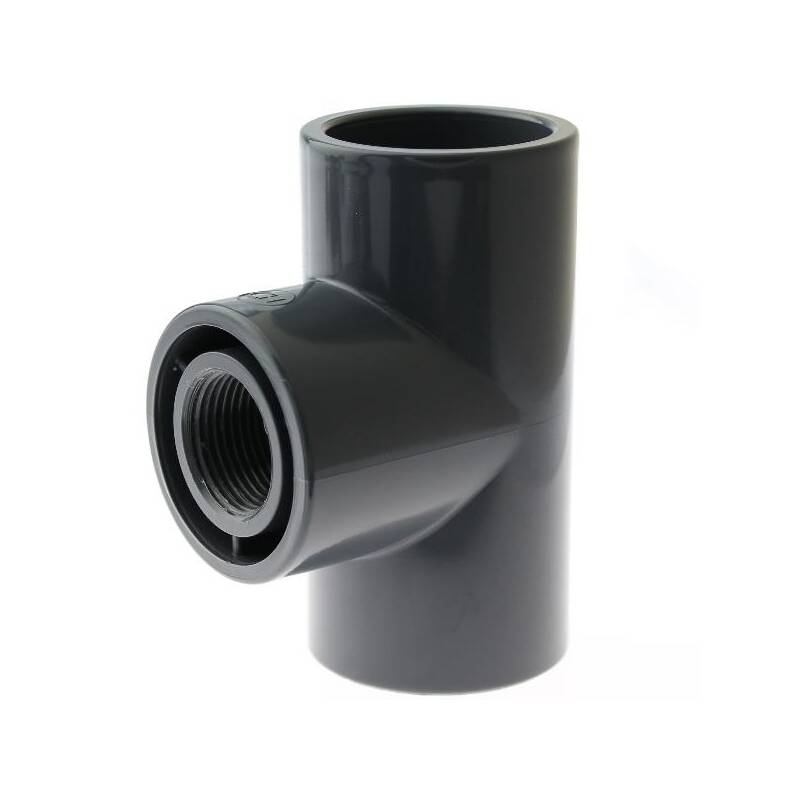

PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 63mm x 3/4"
AF0507.063.025
63mm x 3/4"
63
20
42
37,5
73
3/4" (26,44mm)
75
144
6,33 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 63mm x 1"
AF0507.063.032
63mm x 1"
63
22
38
37,5
73
1" (33,25mm)
75
142
5,97 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 63mm x 1 1/4"
AF0507.063.040
63mm x 1 1/4"
63
26
38
37,5
73
1 1/4" (41,91mm)
75
144
5,52 €*
pc:
PVC-U T-Stück 90°, Klebemuffe x Innengewinde reduziert 63mm x 1 1/2"
AF0507.063.050
63mm x 1 1/2"
63
31
38
37,5
73
1 1/2" (47,80mm)
75
144
5,52 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U T-piece 90°, glue socket x internal thread

Connection:
2 x solvent welding socket x reduced female thread
Thread:
BSP pipe thread G, not self-sealing, seal with Teflon tape or similar.
Temperature:
up to 45°C constant, 60°C for short periods
Working pressure (PN):
max. 10 bar at 20°C
Material:
PVC-U
Color:
Gray
DOWNLOAD RoHS Declaration of Conformity - HTC
DOWNLOAD Gluing PVC-U pipes and fittings
DOWNLOAD the thread code - or why 1" is not 25.4mm
DOWNLOAD sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD äußere Merkmale von Spritzgussfittings
