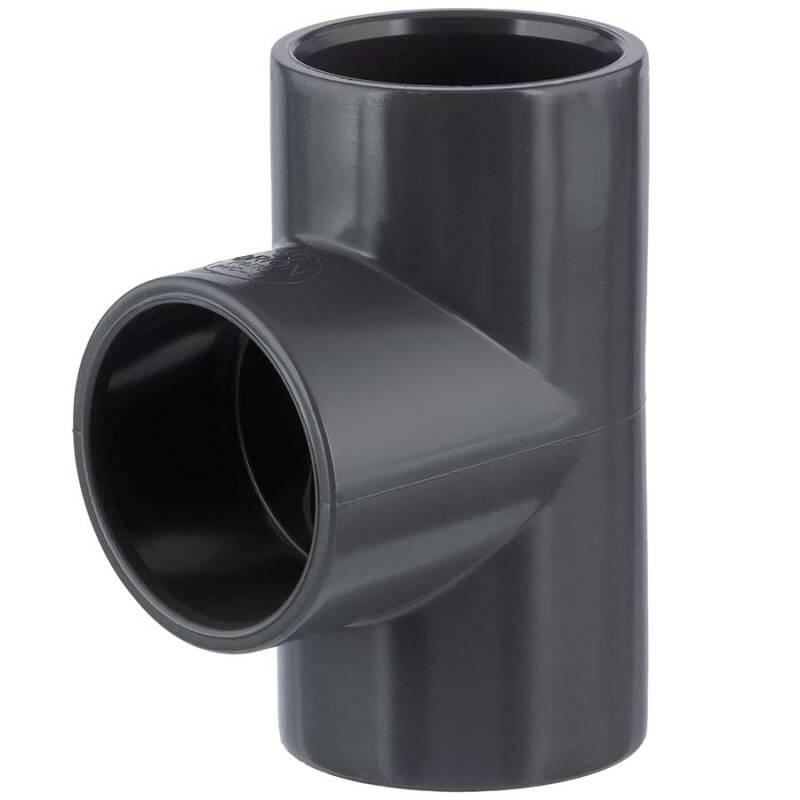

U-PVC solvent tee 90°

SKU: AF0502
Auswahl Steuerzone / Lieferland
Choose the variation
Industrie
from
0,23 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
Variants

Item no.
Variation
D
E
L
Z
PN
Price
Quantity
AF0502.000.012
12mm
12
18
12
7
16
0,23 €*
pc.:
AF0502.000.016
16mm
16
21
14
11
16
0,50 €*
pc.:
AF0502.000.020
20mm
20
27
18
11
25
0,38 €*
pc.:
AF0502.000.025
25mm
25
32,5
20
11
16
0,46 €*
pc.:
AF0502.000.032
32mm
32
40,1
23
17
16
0,68 €*
pc.:
AF0502.000.040
40mm
40
49
26
21
16
1,05 €*
pc.:
AF0502.000.050
50mm
50
61
32
58
16
1,34 €*
pc:
AF0502.000.063
63mm
63
74
38
32
16
2,38 €*
pc.:
AF0502.000.075
75mm
75
89
44
39
16
3,74 €*
pc.:
AF0502.000.090
90mm
90
109
51
47
16
5,80 €*
pc.:
AF0502.000.110
110mm
110
131
61
53
16
10,26 €*
pc.:
AF0502.000.125
125mm
125
148
69
65
16
22,84 €*
pc.:
AF0502.000.160
160mm
160
180
86
81
10
43,72 €*
pc.:
AF0502.000.200
200mm
200
223
106
101
10
69,82 €*
pc.:
AF0502.000.225
225mm
225
258
119
115
10
54,42 €*
pc:
AF0502.000.280
280mm
280
319
146
144
10
122,61 €*
pc:
AF0502.000.315
315mm
315
360
164
162
10
158,02 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U T-Stück 90°, 3fach Klebemuffe

Anschluss:
3fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser bzw. max. 10 bar ab 160mm bei 20 °C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie sowie Vakuumleitungen.
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
