U-PVC threaded reducing bush, type A

SKU: AFA203
Auswahl Steuerzone / Lieferland
from
0,62 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(13) { ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/AFA203_Zeichnung.jpg" ["tabellen_ansicht"]=> string(1) "1" ["meta keywords"]=> string(16) "PVC_Reduzierring" ["dimension_0010_variante"]=> string(0) "" ["dimension_0070_c"]=> string(0) "" ["dimension_0140_d"]=> string(8) "" ["dimension_0630_s"]=> string(0) "" ["dimension_0770_z"]=> string(0) "" ["dimension_0060_b"]=> string(0) "" ["dimension_0288_g"]=> string(8) "" ["hat_3d_bilder"]=> string(1) "1" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
C
D
G
S
Z
Price
Quantity
AFA203.016.012
16mm x 1/4"
14
14
16
1/4" (13,16mm)
19
6
0,95 €*
pc.:
In stock: 106
delivery status: 1 - 4 working days
AFA203.020.009
20mm x 1/8"
10
14
20
1/8" (9,73mm)
22
7
0,62 €*
pc:
In stock: 5086
delivery status: 1 - 4 working days
AFA203.020.012
20mm x 1/4"
10
16
20
1/4" (13,16mm)
22
6
0,62 €*
pc.:
In stock: 3356
delivery status: 1 - 4 working days
AFA203.020.016
20mm x 3/8"
14
16
20
3/8" (16,66mm)
22
6
0,62 €*
pc.:
In stock: 717
delivery status: 1 - 4 working days
AFA203.025.012
25mm x 1/4"
15,5
19
25
1/4" (13,16mm)
27
8
1,51 €*
pc:
In stock: 397
delivery status: 1 - 4 working days
AFA203.025.016
25mm x 3/8"
14
19
25
3/8" (16,66mm)
27
8
1,51 €*
pc.:
In stock: 372
delivery status: 1 - 4 working days
AFA203.025.020
25mm x 1/2"
18
19
25
1/2" (20,96mm)
32
8
1,51 €*
pc.:
In stock: 428
delivery status: 1 - 4 working days
AFA203.032.012
32mm x 1/4"
15
21,5
32
1/4" (13,16mm)
35
8
1,70 €*
pc:
In stock: 675
delivery status: 1 - 4 working days
AFA203.032.016
32mm x 3/8"
15
21,5
32
3/8" (16,66mm)
35
8
1,70 €*
pc:
In stock: 709
delivery status: 1 - 4 working days
AFA203.032.020
32mm x 1/2"
17
21,5
32
1/2" (20,96mm)
35
8
1,70 €*
pc.:
In stock: 1539
delivery status: 1 - 4 working days
AFA203.032.025
32mm x 3/4"
20
22
32
3/4" (26,44mm)
36
8
1,70 €*
pc.:
In stock: 759
delivery status: 1 - 4 working days
AFA203.040.012
40mm x 1/4"
15,5
25,5
40
1/4" (13,16mm)
46
8
2,13 €*
pc:
In stock: 360
delivery status: 1 - 4 working days
AFA203.040.020
40mm x 1/2"
17
26
40
1/2" (20,96mm)
46
11
2,13 €*
pc.:
In stock: 1419
delivery status: 1 - 4 working days
AFA203.040.025
40mm x 3/4"
19
26
40
3/4" (26,44mm)
46
11
2,13 €*
pc.:
In stock: 657
delivery status: 1 - 4 working days
AFA203.040.032
40mm x 1"
22
25
40
1" (33,25mm)
46
10
2,13 €*
pc:
In stock: 825
delivery status: 1 - 4 working days
AFA203.050.012
50mm x 1/4"
20
31
50
1/4" (13,16mm)
55
10
2,17 €*
pc:
In stock: 1139
delivery status: 1 - 4 working days
AFA203.050.020
50mm x 1/2"
19
31
50
1/2" (20,96mm)
55
10
2,17 €*
AFA203.050.025
50mm x 3/4"
20
31
50
3/4" (26,44mm)
55
10
2,17 €*
pc.:
In stock: 1057
delivery status: 1 - 4 working days
AFA203.050.032
50mm x 1"
20
31
50
1" (33,25mm)
55
10
2,17 €*
pc.:
In stock: 1858
delivery status: 1 - 4 working days
AFA203.050.040
50mm x 1 1/4"
23,5
30,5
50
1 1/4" (41,91mm)
55
10
2,17 €*
pc:
In stock: 785
delivery status: 1 - 4 working days
AFA203.063.012
63mm x 1/4"
15,5
37
63
1/4" (13,16mm)
65
8
4,32 €*
pc:
In stock: 950
delivery status: 1 - 4 working days
AFA203.063.020
63mm x 1/2"
18
37
63
1/2" (20,96mm)
65
8
4,32 €*
pc.:
In stock: 539
delivery status: 1 - 4 working days
AFA203.063.025
63mm x 3/4"
19
38
63
3/4" (26,44mm)
65
13
4,32 €*
pc.:
In stock: 843
delivery status: 1 - 4 working days
AFA203.063.032
63mm x 1"
21
37
63
1" (33,25mm)
65
10
4,32 €*
pc.:
In stock: 978
delivery status: 1 - 4 working days
AFA203.063.040
63mm x 1 1/4"
23
38
63
1 1/4" (41,91mm)
65
13
4,32 €*
pc.:
In stock: 997
delivery status: 1 - 4 working days
AFA203.063.050
63mm x 1 1/2"
22,5
37
63
1 1/2" (47,81mm)
65
12
4,32 €*
pc:
In stock: 873
delivery status: 1 - 4 working days

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

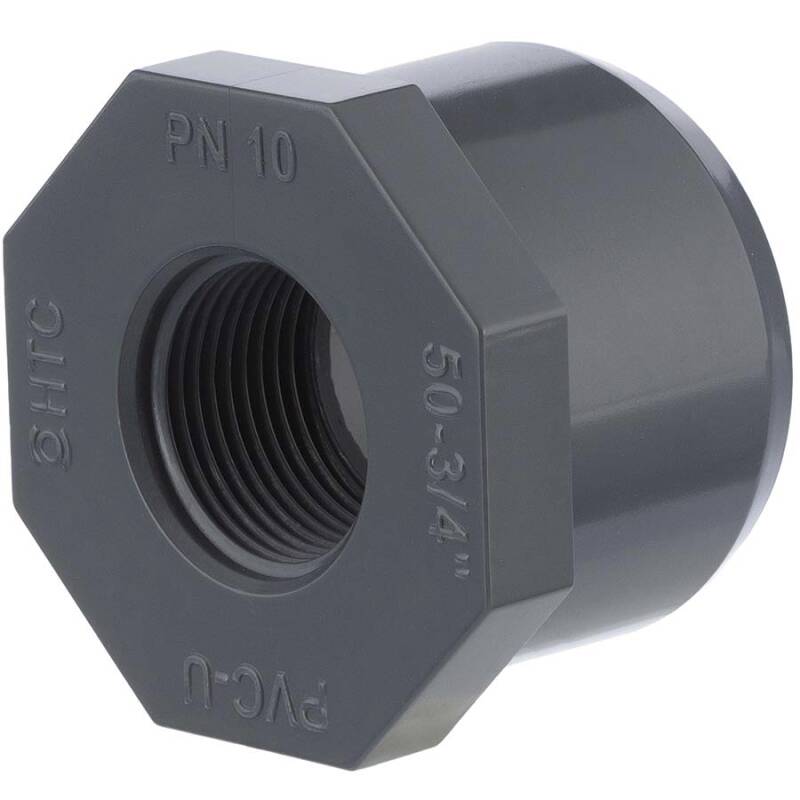

PVC-U Reducing Bush, Solvent Male x Female Thread (Octagonal)

Connection:
Solvent Male Socket x Female Thread
Thread:
BSP thread type G, not self-sealing, seal with PTFE tape or similar.
Temperature:
up to 45 °C constant, temporarily up to 60 °C
Operating pressure (PN):
max. 10 bar at 20 °C (medium water)
Material:
PVC-U (Unplasticized Polyvinyl Chloride)
Color:
Grey

Difference between Reducing Bush Types with Female Thread


PVC-U Reducing Bush Comparison

Right – Version A: The reducing bush is glued into the female socket; the octagonal collar remains visible in front of the socket and allows the use of a spanner during installation.

Left – Version B: The reducing bush is fully glued inside the socket; another fitting with a male thread can be directly connected to the socket.

Advantage of Version A: The projecting 8-sided collar allows the bush to be held with a wrench during the tightening process of the opposite thread. This prevents unnecessary lateral stress on the glued joint between bush and socket.

DOWNLOAD RoHS confirmation HTC
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD Sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
