Description

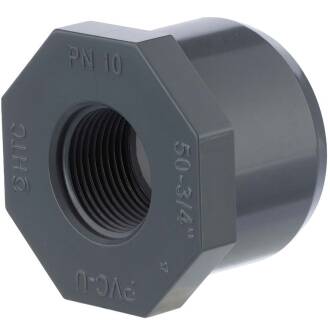

PVC-U Reducing Bush, Solvent Male x Female Thread (Octagonal)
Connection:
Solvent Male Socket x Female Thread
Thread:
BSP thread type G, not self-sealing, seal with
PTFE tape or similar.
Temperature:
up to 45 °C constant, temporarily up to 60 °C
Operating pressure (PN):
max. 10 bar at 20 °C (medium water)
Material:
PVC-U (Unplasticized Polyvinyl Chloride)
Color:
Grey
Difference between Reducing Bush Types with Female Thread
Right – Version A: The reducing bush is glued into the female socket; the octagonal collar remains visible in front of the socket and allows the use of a spanner during installation.
Left – Version B: The reducing bush is fully glued inside the socket; another fitting with a male thread can be directly connected to the socket.
Advantage of Version A: The projecting 8-sided collar allows the bush to be held with a wrench during the tightening process of the opposite thread. This prevents unnecessary lateral stress on the glued joint between bush and socket.
