All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

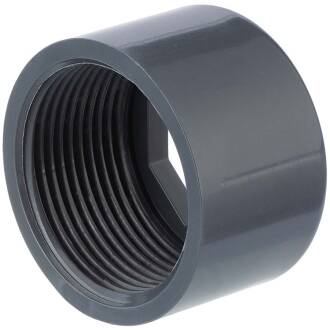

PVC-U Reducing Bush, Solvent Male Socket x Female Thread
Connection:
Solvent Male Socket x Female Thread
Thread:
BSP thread type G, not self-sealing, seal with
PTFE tape or similar.
Temperature:
up to 45 °C constant, temporarily up to 60 °C
Operating pressure (PN):
max. 10 bar at 20 °C (medium: water)
Material:
PVC-U (Unplasticized Polyvinyl Chloride)
Color:
Grey
Difference between the Reducing Bush Versions
Right – Version A: The reducing bush is glued into the female socket; the octagonal collar remains visible in front of the socket and allows the use of a spanner during installation.
Left – Version B: The reducing bush is fully glued inside the socket; another fitting with a male thread can be directly connected to the socket.
