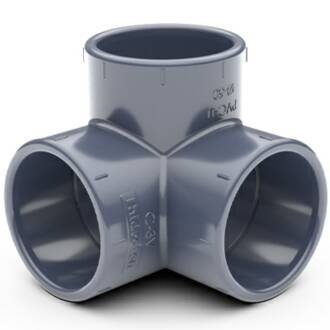

U-PVC threefold solvent elbow 90°

SKU: AF0431
Auswahl Steuerzone / Lieferland
from
0,65 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(10) { ["tabellen_ansicht"]=> string(1) "1" ["meta keywords"]=> string(20) "PVC-U_T-Stück_4fach" ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/AF0431_Zeichnung.jpg" ["dimension_0010_variante"]=> string(22) "
10er Pack" ["dimension_0140_d"]=> string(8) "" ["dimension_0141_d1"]=> string(0) "" ["dimension_0400_l"]=> string(0) "" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["hat_3d_bilder"]=> string(1) "1" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately

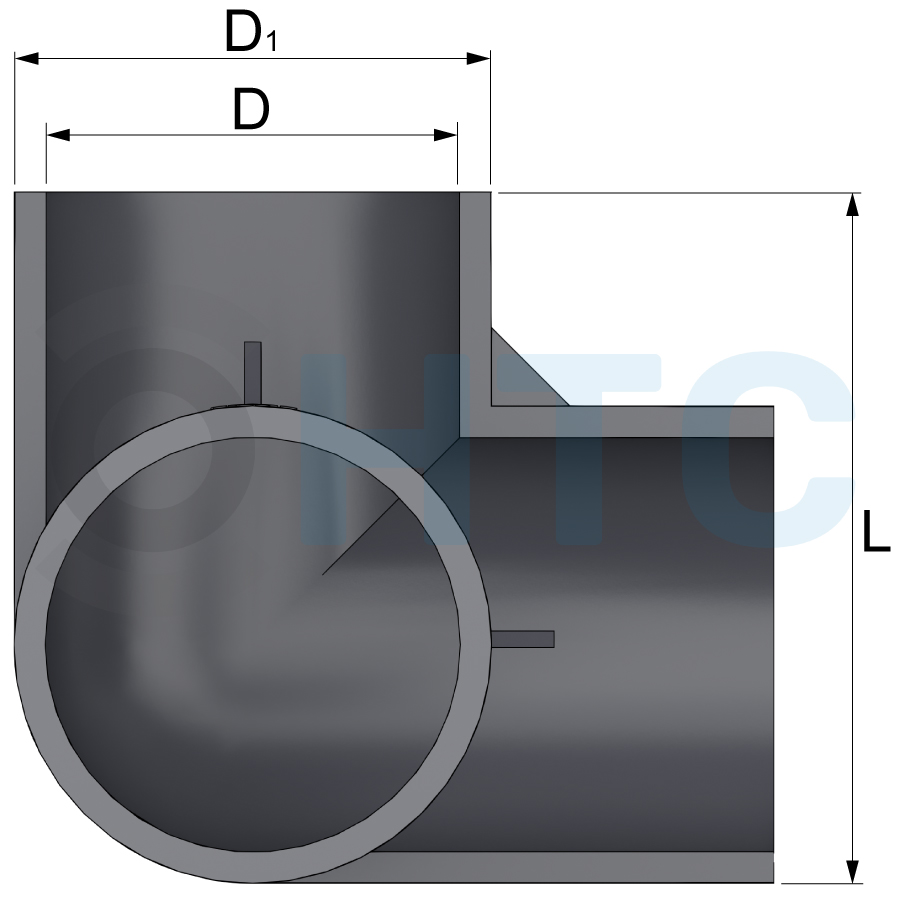

   Variants

Item no.
Variation
D
D1
L
Price
Quantity
AF0431.000.020
20mm
20
25
48,5
0,65 €*
pc:
AF0431.000.025
25mm
25
30,5
57
0,80 €*
pc:
AF0431.000.032
32mm
32
38
64
1,07 €*
pc:
AF0431.000.040
40mm
40
47
77
2,21 €*
pc:
AFY403.000.050
50mm
50
57,5
88,5
2,76 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Elbow 90°, Triple Female Socket

Connection:
Triple Female Socket
Temperature:
up to 45°C constant, temporarily up to 60°C
Operating pressure (PN):
max. PN 10 bar at 20°C, medium water
Material:
PVC-U
Color:
Grey
Application:

DOWNLOAD RoHS confirmation HTC
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
