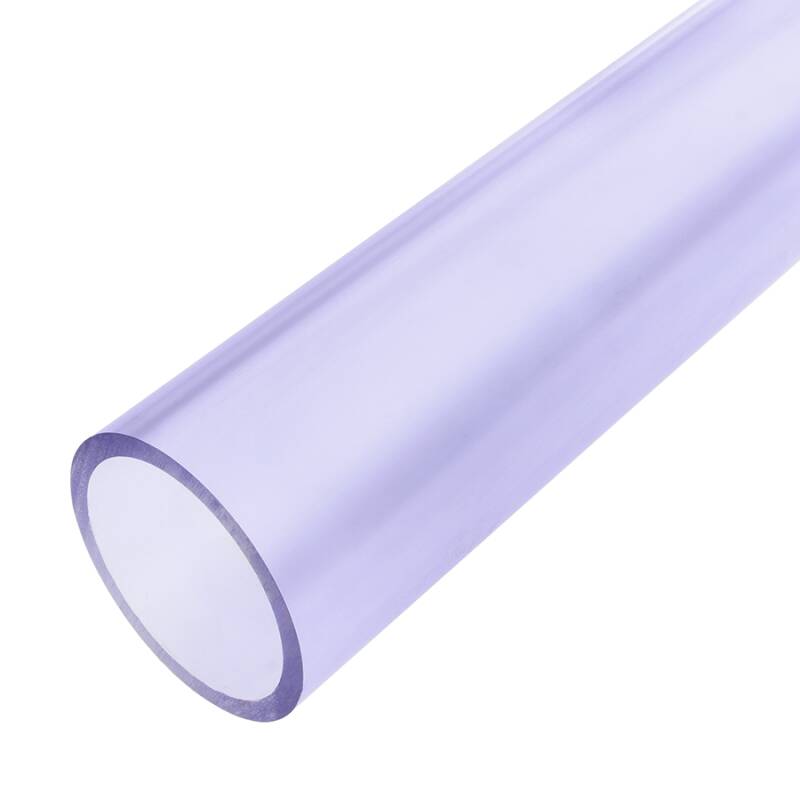

U-PVC trasparent pipe 63 x 4,0mm - PN 14

3,80 €

including 19% VAT., plus shipping

Item number: AT0063

How to measure a threaded fitting

wichtiger Hinweis

Rohrzuschnitt wird speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.

Item no.	Variation	D	DN	W	Length	Weight	Delivery information	Price	Quantity
AT0063.20	63mm - Länge 20cm	63	max. 55	mind. 4,0	200 ±1%	210		3,80 €^*	Pipe:
AT0063.40	63mm - Länge 40cm	63	max. 55	mind. 4,0	400 ±1%	453		7,58 €^*	Pipe:
AT0063.60	63mm - Länge 60cm	63	max. 55	mind. 4,0	600 ±1%	627		11,38 €^*	Pipe:
AT0063.80	63mm - Länge 80cm	63	max. 55	mind. 4,0	800 ±1%	837		15,17 €^*	Pipe:
AT0063.100	63mm - Länge 100cm	63	max. 55	mind. 4,0	1000 ±1%	1046		18,96 €^*	Pipe:
AT0063.120	63mm - Länge 120cm	63	max. 55	mind. 4,0	1200 ±1%	1255	Delivery information This item cannot be delivered through the express shipping.	25,13 €^*	Pipe:
AT0063.140	63mm - Länge 140cm	63	max. 55	mind. 4,0	1400 ±1%	1465	Delivery information This item cannot be delivered through the express shipping.	28,93 €^*	Pipe:
AT0063.160	63mm - Länge 160cm	63	max. 55	mind. 4,0	1600 ±1%	1674	Delivery information This item cannot be delivered through the express shipping.	32,71 €^*	Pipe:
AT0063.180	63mm - Länge 180cm	63	max. 55	mind. 4,0	1800 ±1%	1884	Delivery information This item cannot be delivered through the express shipping.	36,51 €^*	Pipe:
AT0063.200	63mm - Länge 200cm	63	max. 55	mind. 4,0	2000 ±1%	2100	Delivery information This item cannot be delivered through the express shipping.	40,31 €^*	Pipe:
AT0063.300	63mm - Länge 300cm	63	max. 55	mind. 4,0	3000 ±1%	3140	Delivery information This item must be shipped through a carrier, because it is an oversized good. DAP Inconterms 2020 free to kerbside.	56,88 €^*	Pipe:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PVC-U Rohr transparent 63 x 4,0mm -
PN
14 bar

A-Ø:

63mm

Wandstärke:

siehe Tabelle

Temperatur:

bis 45°C konstant, kurzzeitig 60°C

Arbeitsdruck:

max. PN 14 bar bei 20"C

Material:

PVC-U

Farbe:

transparent, bläulich

Einsatzbereich:

Qualität Legende:

Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
Reduzierte Druckbelastung max. PN 14 bar bei 20°C Medium Wasser.

Sicherheitszuschlag (SF): Die Normen DIN 8062 bzw. ISO EN 1452-2 legen z.T. unterschiedliche Sicherheitszuschläge für die Druckbelastung fest. Der Sicherheitszuschlag legt zum Beispiel bei der Rohrdimension 110 x 4,2mm die max. Belastung bei 20°C Medium Wasser nach DIN 8062 mit PN 8 fest, aber nach Norm ISO EN 1452-2 mit PN 10 fest. Sicherheitszuschlag laut DIN = 2,5, Sicherheitszuschlag laut ISO = 2,0
