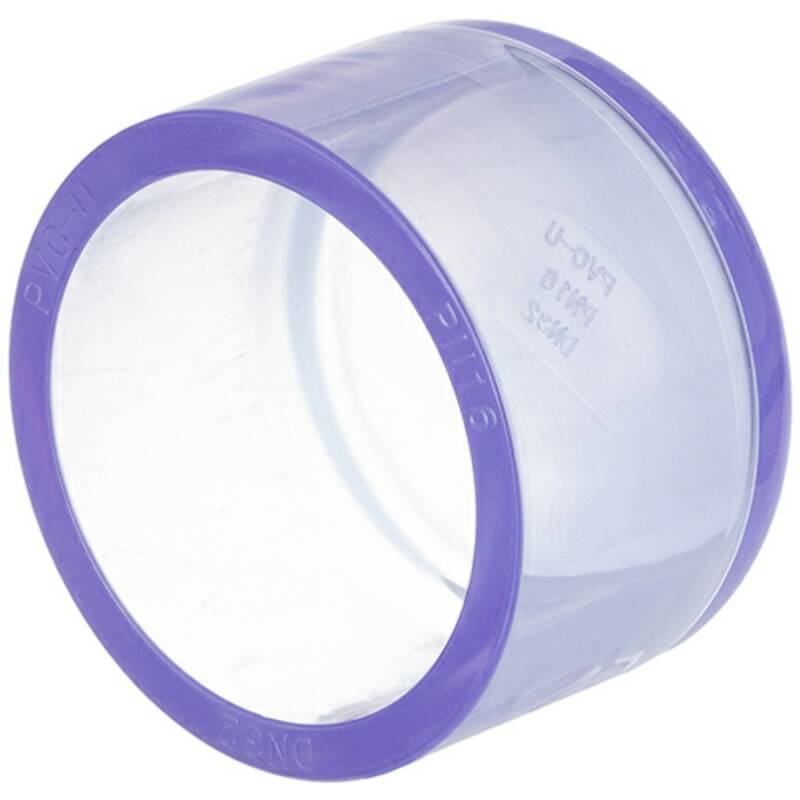

PVC-U Endkappe Transparent, Klebemuffe

U-PVC trasparent solvent end cap

0,45 €

including 19% VAT., plus shipping

Item number: AT0815

How to measure a threaded fitting

Item no.	Variation	D	D1	L	L1	Weight	Price	Quantity
AT061	20mm	20	26	25	19	7	0,45 €^*	pc:
AT062	25mm	25	32	38	21	12	0,63 €^*	pc:
AT063	32mm	32	39	32	24	17	1,26 €^*	pc:
AT0815.000.040	40mm	40	49	38	28	31	1,96 €^*	pc:
AT0815.000.050	50mm	50	58,5	45,5	33	40	3,34 €^*	pc:
AT0815.000.063	63mm	63	73	57	40	86	5,53 €^*	pc:
AT0815.000.075	75mm	75	86	65	45	141	8,26 €^*	pc:
AT0815.000.090	90mm	90	105	78	52	249	12,78 €^*	pc:
AT0815.000.110	110mm	110	127	83	61	385	20,48 €^*	pc:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PVC-U Endkappe Transparent, Klebemuffe

PVC-U Fittings und Rohr Transparent sind verklebbar wie PVC-U Grau o.ä. mit jedem handelsüblichen PVC-U Kleber und weisen identisch hohe Wertigkeiten auf.

Anschluss:

Klebemuffe

Temperatur:

bis 45°C konstant, kurzzeitig 60°C

Arbeitsdruck ():

max. 16 bar bei 20°C

Material:

PVC-U

Farbe:

transparent, bläulich

Einsatzbereich:
