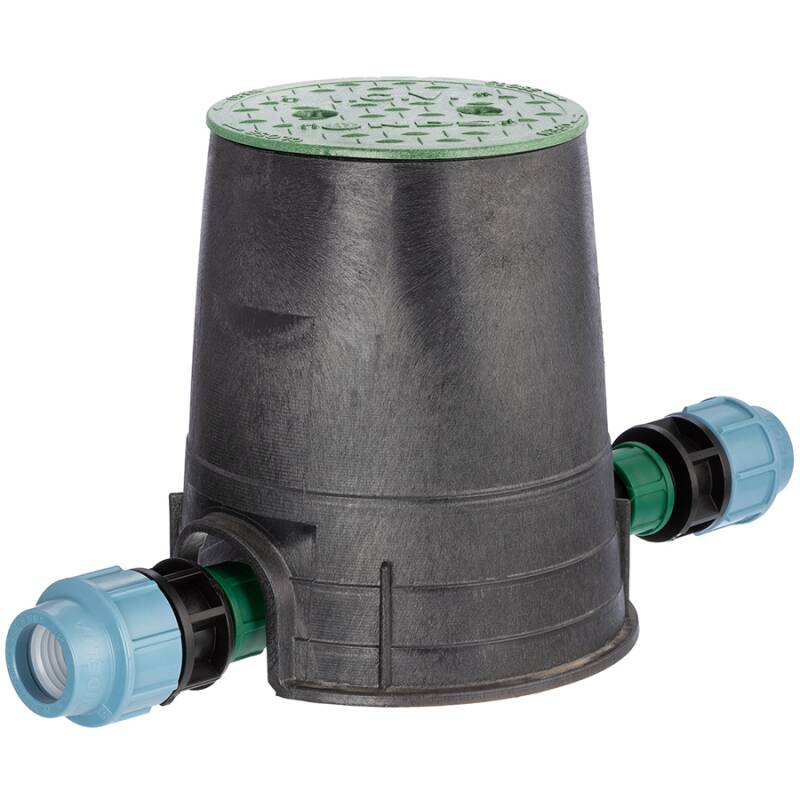

Valve box - single station / main valve

from
45,05 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
D
D1
D2
H
Total length
Inlet
Outlet
Price
Quantity
BW3701.025.025
25mm Eingang, 25mm Ausgang
220
200
160
240
290
25
25
45,05 €*
pc.:
BW3701.032.025
32mm Eingang, 25mm Ausgang
220
200
160
240
295
32
25
45,45 €*
pc.:
BW3701.032.032
32mm Eingang, 32mm Ausgang
220
200
160
240
305
32
32
45,84 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Profi Distributor - Single Station Main Valve with Hunter PGV Valve

Selected brand items: Hunter PGV Valve with Flow Control - IRRITEC Compression Fittings - NDS Valve Box

The single station of the PROFI Distributor series is ideal for setting up a separate circuit or as a pre-installed main solenoid valve before your distribution station.
This protects your solenoid valves, which control the individual sectors, and simultaneously ensures that the main valve secures your system in case of leaks during the idle phase.
Even under pressure, a change or adjustment can be made to your main distribution unit, as the main valve safely shuts off the pipe without needing to turn off the main water supply of your home system.

PA0300 Detail Inlet

Adjustable (flow control) Hunter PGV Solenoid Valves

Electromagnetic valve PGV-101-MMB, professional quality from Hunter (24 VAC) operates reliably and is additionally adjustable (flow control).



DOWNLOADRoHS Compliance Certificate - HT CONNECT GmbH & Co. KG

DOWNLOAD Assembly Instructions - Valve Box Single Station / Main Valve
READ MORE Hunter PGV Valve 24 VAC
DOWNLOADProcessing of PP Compression Fittings
DOWNLOADThe Thread Identification - or why 1" is not 25.4mm
DOWNLOADPP Polypropylene Temperature/Pressure Chart
DOWNLOADChemical Resistance of Plastics
